Rock Fiber Panel Raised Flooring Backing Panel High Strength Load Bearing
Rock Fiber Panel Raised Flooring Backing Panel High Strength Load Bearing
Specifications
MOQ :
1 container
TVOC emission :
0.02 mg/(m²*h)
Formaldehyde emission :
0.014 mg/m³
Payment Terms :
L/C,T/T
Density :
1000-1200 kg/m³
Moisture Swelling Rate :
0.05%
Screw Holding Capacity :
1300 N
Place of Origin :
china
Flexural strength :
≥25 MPa
Description

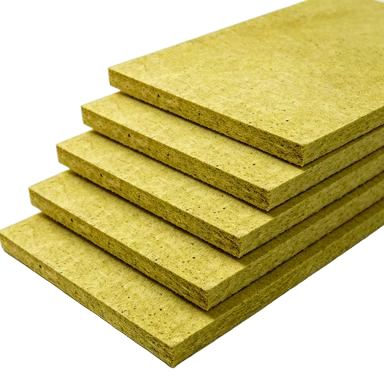

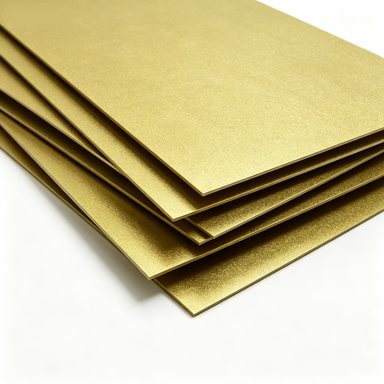

Rock Fiber Panel - Raised Flooring Backing Panel - High-Strength Load-Bearing Class A Non-Combustible
Product Description

High-density rock fiber panel designed for raised flooring systems in data centers, server rooms, clean rooms, and prefabricated houses. Class A non-combustible with outstanding compression and impact resistance. Acting as a filling substrate between pedestals and top panels, it evenly distributes point loads, prevents surface deformation, and provides a halogen-free, anti-static fire barrier.

Applications

Intermediate sub-core or filling layer for raised floor systems in data centers, telecom rooms, clean workshops, and prefabricated houses, anti-static flooring.

Specifications
Parameter Unit Typical Value
Density kg/m³ 1000-1200
Flexural strength MPa ≥25
Fire performance -- Class A, non-combustible
Formaldehyde emission mg/m³ 0.014
TVOC mg/(m²*h) 0.02
Moisture Swelling Rate % 0.05
24-hour water absorption thickness expansion rate % 0
Screw Holding Capacity N 1300
Rock Fiber Panel Raised Flooring Backing Panel High Strength Load Bearing
Key Features
  • Class A non-combustible, meets fire codes for equipment rooms
  • High compressive strength, suitable for heavy equipment areas
  • Halogen-free and environmentally friendly, no corrosive gases in fire
  • Thickness tolerance ±0.05mm, ensures floor flatness
