Rock Fiber Panel Ceiling Substrate Lightweight & Acoustic Class A Non Combustible
Rock Fiber Panel Ceiling Substrate Lightweight & Acoustic Class A Non Combustible
Specifications
Flexural strength :
≥25 MPa
Screw holding capacity :
1300 N
Fire performance :
Class A, non-combustible
Density :
1000-1200 kg/m³
TVOC emission :
0.02 mg/(m²·h)
Formaldehyde emission :
0.014 mg/m³
Place of Origin :
china
MOQ :
1 container.
Payment Terms :
L/C,T/T
Description

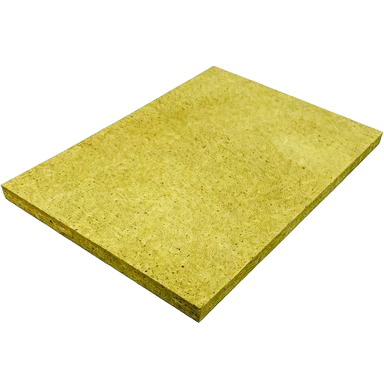

Rock Fiber Panel - Ceiling Substrate - Lightweight & Acoustic Class A Non-Combustible
Product Overview

This lightweight rock fiber panel is specifically developed for suspended ceiling systems. Engineered with Class A non-combustibility, it offers optimized weight and superior acoustic performance. The open-pore structure combined with a dense surface effectively absorbs reverberation noise while providing a flat, reliable base for gypsum, metal, or other ceiling finishes.

Applications

Ideal ceiling substrate for public spaces including offices, conference rooms, theaters, and subway stations. Suitable for concealed grid systems or composite applications with exposed mineral wool panels.

Technical Specifications
Parameter Unit Typical Value
Density kg/m³ 1000-1200
Flexural strength MPa ≥25
Fire performance — Class A, non-combustible
Formaldehyde emission mg/m³ 0.014
TVOC mg/(m²·h) 0.02
Moisture Swelling Rate % 0.05
24-hour water absorption thickness expansion rate % 0
Screw Holding Capacity N 1300
Product Features
  • Class A non-combustible rating ensures superior fire safety in ceiling plenums
  • Thin and lightweight design significantly reduces ceiling load
  • NRC ≥ 0.65 effectively lowers room reverberation and improves acoustic comfort
  • Excellent dimensional stability prevents humidity-induced warping
  • Quick installation with grid systems, ideal for large area applications
