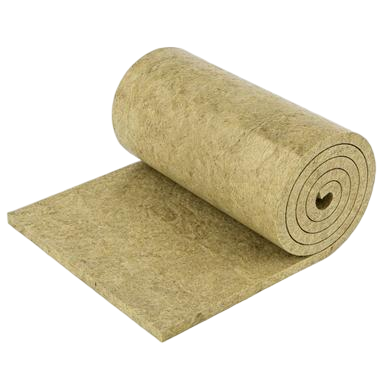

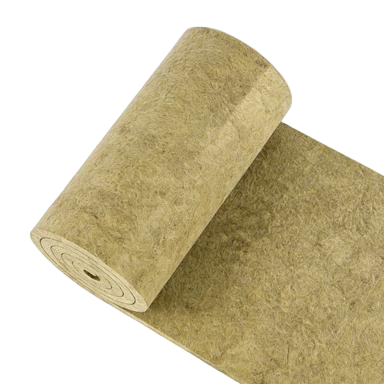

Heat Resistant Rock Wool Blanket For Technical Thermal Insulation
Heat Resistant Rock Wool Blanket For Technical Thermal Insulation
Specifications
Heat-shrinkage Temperature :
600-650°C
Place of Origin :
china
Mass Moisture Absorption :
≤1%
Maximum Service Temperature :
800°C
Density :
80-100 kg/m³
Water Repellency :
99.5%
MOQ :
1 container.
Thermal Conductivity :
0.043-0.156 W/m·K
Payment Terms :
L/C,T/T
Description
Heat Resistant Rock Wool Blanket For Technical Thermal Insulation
Product Overview

Our heat resistant rock wool blanket is engineered for large-diameter pipelines, storage tanks, and irregular-shaped equipment in industrial insulation applications. Available in roll form, it offers excellent flexibility to tightly conform to curved surfaces, large-diameter pipes, and irregular geometries, achieving seamless wrapping. With a continuous service temperature of 650°C, it remains stable under high heat. The blanket format enables easy transport and efficient installation, significantly reducing joints and heat loss. Meeting Class A non-combustible fire standards, it is ideal for petrochemical, power generation, marine, and metallurgical industries.

Applications
  • Large-diameter petrochemical pipelines, steam networks insulation
  • Storage tanks, spherical tanks, tower equipment insulation
  • Marine engine rooms, exhaust lines insulation
  • Irregular equipment, elbows, tees, valves insulation
  • Flexible wrapping for large industrial equipment insulation
Technical Specifications
Parameter Product JYX-TF80-SW JYX-TF100-SW JYX-TF100-ZBF
Density (kg/m³) 80 100 100
Heat-shrinkage Temperature (°C) 600 650 650
Maximum Service Temperature (°C) 800
Acidity Coefficient ≥2.0
Chloride Ion Leaching Pass
Chloride ion content (Optional) ≤10ppm
Boiling Test Pass
Combustibility A1
Water Repellency (%) 99.5
Mass Moisture Absorption (%) ≤1
Thermal Conductivity
Product Thermal Conductivity Temperature 70°C 100°C 200°C 300°C 400°C 500°C
JYX-TF80-SW 0.044 0.047 0.062 0.081 0.104 0.156
JYX-TF100-SW 0.043 0.045 0.059 0.077 0.099 0.148
JYX-TF100-ZBF 0.043 0.045 0.059 0.077 0.099 0.148
Heat Resistant Rock Wool Blanket For Technical Thermal Insulation
Key Features
Roll Format - Flexible Wrapping

Flexible blanket form tightly conforms to large-diameter pipes, elbows, and irregular equipment for seamless wrapping.

650°C Continuous Service - High-Temperature Stability

Continuous service temperature 650°C, maximum service temperature up to 800°C, with no shrinkage or powdering.

Class A Non-Combustible - Industrial Fire Safety

Meets Class A non-combustible standard, with no burning or toxic fumes.

Easy Transport - Low Storage Footprint

Roll format offers compact storage and easy handling, reducing logistics costs.
