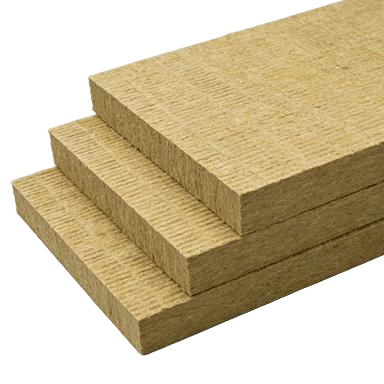

Marine A30 Fireproof Rock Wool Board For Marine Deck Insulation
Marine A30 Fireproof Rock Wool Board For Marine Deck Insulation
Specifications
Payment Terms :
L/C,T/T
Thermal Conductivity :
0.035 W/(m·K)
Density :
45~150 kg/m³
MOQ :
1 container.
Acidity Coefficient :
≥2.0
Thickness :
50mm
Hydrophobic Rate :
≥99%
Place of Origin :
china
Mass Moisture Absorption :
<1%
Description
Marine A30 Fireproof Rock Wool Board for Marine Deck Insulation
Product Overview

Our A30 fireproof rock wool is specially engineered for marine and offshore deck systems, with a thickness of 50mm, meeting IMO A30 class horizontal fire-resisting division standards. Manufactured with advanced processing, it effectively prevents upward flame spread during fire. The 50mm thickness provides adequate thermal insulation to prevent deck condensation.

Applications
  • Accommodation decks, corridor decks on vessels
  • Living quarters decks on offshore platforms
  • Control rooms, bridge decks
  • Deck systems requiring horizontal fire division
  • Deck areas needing IMO A30 class compliance
Technical Specifications
Parameter Performance Test Standard
Combustibility Non-combustible IMO 2010 FTP Code
Thermal Conductivity (W/(m·K)) 0.035 ISO 8302:1991
Acidity Coefficient ≥2.0 GB/T 25975
Mass Moisture Absorption (%) <1% GB/T 5480
Hydrophobic Rate (%) ≥99%
Anti-fungi Qualified ASTM C 1338
Standard Size (mm) 1000*600*(30~150)
Density (kg/m³) 45~150
Fire and Acoustic Performance
Fire Rating Thickness (mm) Volume Weight (kg/m³) Weight per m² (kg/m²) Thermal Conductivity (W/(m·K)) Sound Insulation (dB)
Bulkhead A30 Panel 30+30 45 2.7 0.035 48
Bulkhead A60 Panel 30+30 45 2.7 0.035 48
Deck A30 Panel 50 45 2.25 0.035 47
Deck A60 Panel 50 45 2.25 0.035 47
Marine A30 Fireproof Rock Wool Board For Marine Deck Insulation
Key Features
A30 Class Horizontal Fire Division – Certified

Meets IMO A30 class horizontal fire standard, effectively preventing upward flame spread for 30 minutes during fire.

Condensation Prevention – Dry Environment

Adequate thermal insulation effectively prevents deck surface condensation, keeping compartments dry and comfortable.

Fire Safety

Rock wool is Class A non-combustible, with no burning or toxic fumes.

Acoustic Insulation – Enhanced Comfort

Rock wool fiber structure effectively absorbs footstep noise and equipment vibration, reducing interference between decks.
