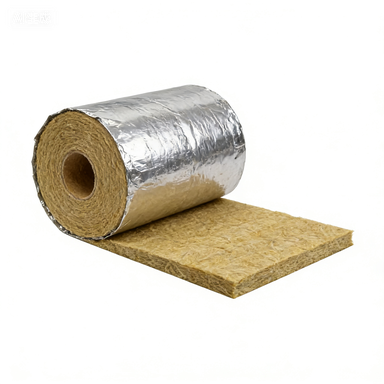

Reinforced Aluminum Foil Faced Rock Wool Blanket For Technical Thermal Insulation
Reinforced Aluminum Foil Faced Rock Wool Blanket For Technical Thermal Insulation
Specifications
Heat-shrinkage Temperature :
650°C
Mass Moisture Absorption :
≤1%
Acidity Coefficient :
≥2.0
Density :
100 kg/m³
Place of Origin :
china
Payment Terms :
L/C,T/T
Maximum Service Temperature :
800°C
MOQ :
1 container
Water Repellency :
99.5%
Description
Reinforced Aluminum Foil-Faced Rock Wool Blanket for Technical Thermal Insulation
Product Overview

Our reinforced aluminum foil-faced rock wool blanket features a high-strength reinforced aluminum foil laminated onto the high-temperature rock wool blanket, creating a multi-functional integrated insulation with moisture barrier, corrosion resistance, and radiant heat reflection.

The foil layer provides excellent vapor barrier properties, preventing rock wool from moisture absorption and ensuring long-term thermal performance, while reflecting radiant heat to reduce heat loss. With a smooth, corrosion-resistant, easy-to-clean surface, it is ideal for outdoor pipelines, humid environments, and coastal facilities.

Maintaining up to 650°C continuous service temperature and Class A non-combustible fire performance.

Applications
  • Insulation for outdoor pipelines, exposed storage tanks
  • Coastal industrial facilities, offshore platforms
  • Humid workshops, chemical plant piping
  • Thermal cycling pipelines (condensation prevention)
  • Industrial equipment requiring moisture resistance, corrosion protection, and aesthetics
Technical Specifications
Parameter Product JYX-TF100-ZBF
Density (kg/m³) 100
Heat-shrinkage Temperature (°C) 650
Maximum Service Temperature (°C) 800
Acidity Coefficient ≥2.0
Chloride Ion Leaching Pass
Chloride ion content (Optional) ≤10ppm
Boiling Test Pass
Combustibility A1
Water Repellency (%) 99.5
Mass Moisture Absorption (%) ≤1
Thermal Conductivity
Temperature (°C) 70°C 100°C 200°C 300°C 400°C 500°C
Thermal Conductivity 0.044 0.047 0.062 0.081 0.104 0.156
Alternative Values 0.043 0.045 0.059 0.077 0.099 0.148
Additional Values 0.043 0.045 0.059 0.077 0.099 0.148
Reinforced Aluminum Foil Faced Rock Wool Blanket For Technical Thermal Insulation
Key Features
Reinforced Aluminum Foil – Superior Moisture Barrier

High-strength foil layer has near-zero vapor permeability, effectively blocking moisture to prevent insulation degradation and extend service life.

Radiant Heat Reflection – Energy Efficiency

The aluminum surface reflects radiant heat, reducing heat loss, improving insulation performance, and lowering energy consumption.

Corrosion Resistant – Harsh Environment Adaptable

Foil layer offers excellent resistance to acids, alkalis, and salt spray, suitable for coastal and chemical environments.

650°C Continuous Service – High-Temperature Stability

Rock wool provides continuous service at 650°C, maximum service temperature at 800°C, with no shrinkage or powdering.

Clean Appearance – Easy Maintenance

Smooth foil surface is aesthetic and easy to clean, suitable for applications where appearance matters.
