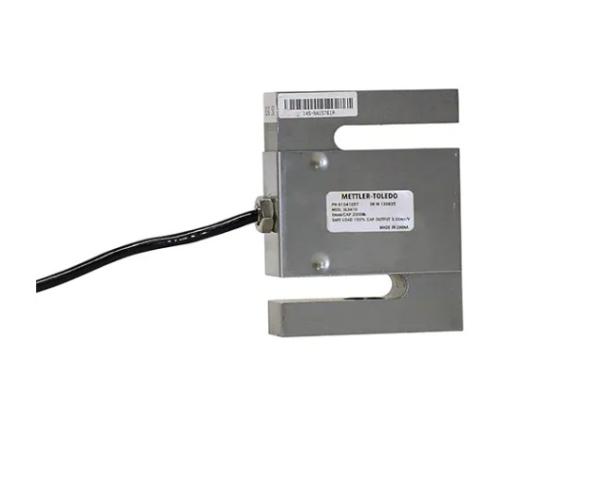

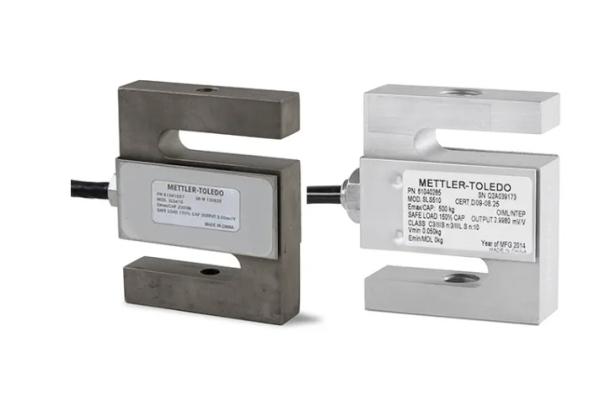

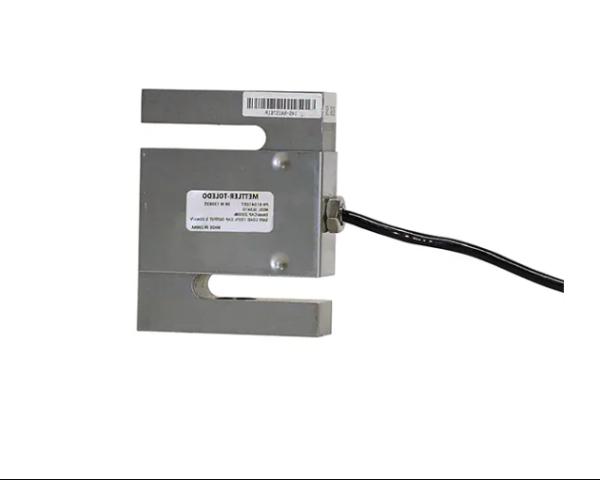

Design and Application S-Type Load Cells for Tension Compression Force Measurement
Design and Application S-Type Load Cells for Tension Compression Force Measurement
Design and Application S-Type Load Cells for Tension Compression Force Measurement
Design and Application S-Type Load Cells for Tension Compression Force Measurement
Design and Application S-Type Load Cells for Tension Compression Force Measurement
Design and Application S-Type Load Cells for Tension Compression Force Measurement
Specifications
Brand Name :
Mettler Toledo
Model Number :
S-Type Load Cells
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Supply Ability :
2000 set per month
Delivery Time :
10-30days
Packaging Details :
Caron box
Product :
Mettler Toledo Load Cell
Capacities range :
25 kg (50 lb) up to 10 t (22 klb)
Accuracy :
OIML C3, C6, NTEP III M 5,000d
Hazardous Approvals :
ATEX, FM, cFM
Construction Material :
Alloy Steel (with zinc or nickel plating), Stainless Steel (AISI 304/316/17-4PH)
Sealing / Ingress Protection (IP) :
IP65,67,68/69K
Recommended Excitation :
5-12 VDC (10V Typical)
Operating Temp. Range :
-20°C to +80°C (-4°F to +176°F)
Compliance & Standards :
OIML R60, RoHS, REACH
Self-Alignment :
Critical Feature. Achieved via spherical seats or rod-end bearings.
Cable :
4- or 6-conductor, shielded, PVC or PUR jacket. Standard length 3m, customizable.
Non-Linearity :
≤ ±0.02% of F.S.
Description

Design and Application S-Type Load Cells for Tension Compression Force Measurement

1.Convert a Suspended Tank or Hopper into a Scale

S-type load cells, also known as tension load cells, are used in tension-weighing applications to convert suspended tanks or other hanging devices into weighing systems. The cells use a reliable strain gauge design with excellent measurement stability. Pair the load cells with optional tension weigh modules to integrate a complete solution into your system.


2.Wide Range of Options

METTLER TOLEDO offers a wide range of S-type load cells with capacities from 50 kg to 10 t (50 lb to 22 klb) and in nickel-plated alloy steel or stainless steel construction. They are available in legal-for-trade accuracy levels according to OIML R60 (OIML C3) and NTEP HB44 (NTEP 5000d). Tension load cells are available for hazardous area applications and are approved according to ATEX, FM (Factory Mutual), and cFM (Canada). They meet ingress protection class IP67.


3.Matching Installation Hardware

To ensure the utmost in safety and performance, our S-type load cells can be paired with METTLER TOLEDO mounting hardware, becoming a model tension weigh module assembly. These assemblies provide engineered components that deliver proven safety and performance.


4.Fast, Traceable, Hassle-Free Calibration

Traditional calibration methods are time-consuming, expensive, and typically deliver uncertain accuracy and traceability results. The innovative RapidCal™ method from METTLER TOLEDO offers economical tank scale calibration that is traceable and achieved without using test weights or purified liquids. Additionally, by eliminating costly material substitution, contamination risk is eliminated.

Specifications:

Parameter Specification
Capacities range 25 kg (50 lb) up to 10 t (22 klb)
Accuracy OIML C3, C6, NTEP III M 5,000d
Hazardous Approvals ATEX, FM, cFM
Construction Material Alloy Steel (with zinc or nickel plating), Stainless Steel (AISI 304/316/17-4PH)
Sealing / Ingress Protection (IP) IP65,67,68/69K
Recommended Excitation 5-12 VDC (10V Typical)
Compensated Temp. Range +10°C to +40°C (50°F to 104°F)
Compliance & Standards OIML R60, RoHS, REACH
Self-Alignment Critical Feature. Achieved via spherical seats or rod-end bearings.

FAQ:

1.What is an S-type load cell?

An S-type load cell is a type of load cell that is designed to measure tension or compression forces in a single direction. It is named after its shape, which is similar to the letter S when viewed from the side. S-type load cells are commonly used in applications such as weighing scales, belt scales, and hopper scales. They are typically made of stainless steel or other high-strength materials, and they have strain gauges attached to the surface that deform under load, producing an electrical signal that is proportional to the force applied. S-type load cells are known for their accuracy, reliability, and durability, and they are widely used in industrial and commercial settings.

2.What is the range of tension load cells?

METTLER TOLEDO tension load cells reach capacities from 25 kg (50 lb) up to 10 t (22 klb). Our tension load cells are certified for applications in hazardous areas per ATEX and Factory Mutual guidelines; see specific compliance certificates for classification details.
