SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant
SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant
SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant
SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant
Specifications
Brand Name :
Mettler Toledo
Model Number :
Weigh Module SWB505 MM SS316 2.2t EN1090
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Supply Ability :
2000 set per month
Delivery Time :
10-30days
Packaging Details :
Caron box
Product :
Mettler Toledo Load Cell
Maximum Capacity :
5,000 lb (2,200 kg)
Material :
316 Stainless steel
Metrology :
NTEP III 5M, OIML C3
Cable :
5 m
Accuracy :
Standard
Protection Rating :
IP68/69k
Environment / Material :
Frequent wash-down / Hygienic
Hazardous Approval :
ATEX, FM, cFM
Criticality :
Standard
Description
SWB505 Carbon Steel Construction Load Cell Module with 2.2 Ton EN1090 Compliant
Key Features
  • Designed for compression weighing applications with capacities from 3 kg to 300 tons
  • 316 Stainless steel construction for durability and corrosion resistance
  • IP68/69k protection rating for frequent wash-down and hygienic environments
  • Hazardous area approvals including ATEX, FM, and cFM
  • 5-meter cable for flexible installation
Product Description

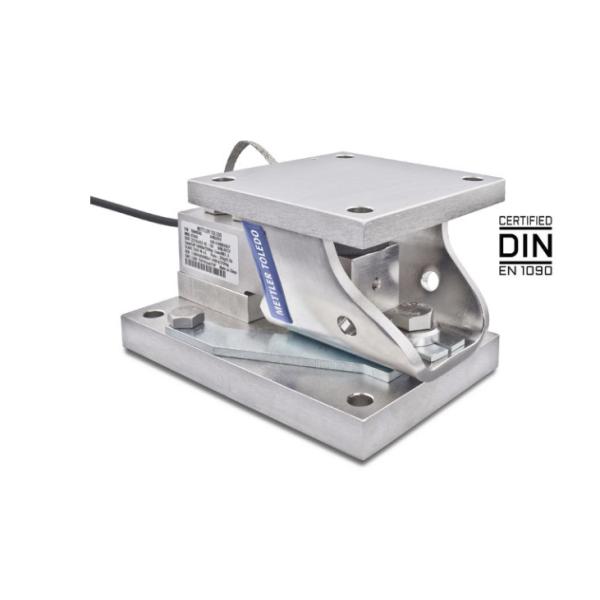

The SWB505 compression weigh module is engineered with carbon steel construction and a 2.2 ton capacity, compliant with EN1090 standards. Its design allows direct attachment to ground, piers, or structural beams, making it ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

Performance Advantages
Static & Dynamic Weighing

Multipurpose weigh module delivers high accuracy for both static and dynamic applications. The self-aligning rocker pin ensures consistent repeatability.

Safety & Protection

Features 360° checking, built-in anti-uplift and down stops, along with hazardous area approvals and IP68-rated stainless steel load cell for reliable operation.

Ease of Installation & Service

Simplified alignment for installation with easy transition to weighing mode. Requires minimal lift for load cell removal during maintenance.

Technical Specifications
Material 316 Stainless steel
Maximum Capacity 5,000 lb (2,200 kg)
Protection Rating IP68/69k
Environment Frequent wash-down / Hygienic
Hazardous Approvals ATEX, FM, cFM
Cable Length 5 m
Accuracy Standard
Metrology NTEP III 5M, OIML C3
