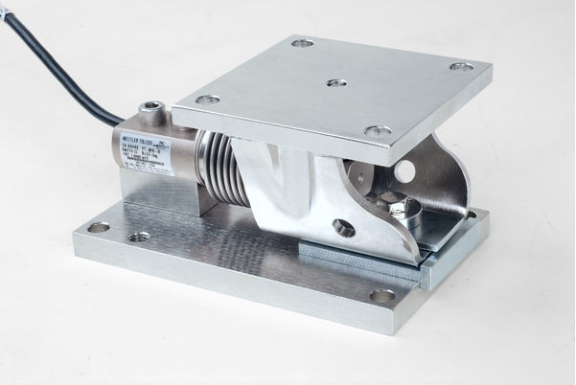

100kg SWB505 Carbon Steel Construction Load Cell Module with High Accuracy Weighing
100kg SWB505 Carbon Steel Construction Load Cell Module with High Accuracy Weighing
100kg SWB505 Carbon Steel Construction Load Cell Module with High Accuracy Weighing
100kg SWB505 Carbon Steel Construction Load Cell Module with High Accuracy Weighing
Specifications
Brand Name :
Mettler Toledo
Model Number :
Weigh Module SWB505 CS 100kg
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Supply Ability :
2000 set per month
Delivery Time :
10-30days
Packaging Details :
Caron box
Product :
Mettler Toledo Load Cell
Maximum Capacity :
220 lb (100 kg)
Material :
Zinc plated steel
Metrology :
NTEP III 5M OIML C3
Load Cell :
MTB, 3 m cable
Accuracy :
Standard
Protection Rating :
IP68/69k
Environment / Material :
Normal / Carbon Steel
Hazardous Approval :
ATEX, FM, cFM
Criticality :
Standard
Description
100kg SWB505 Carbon Steel Construction Load Cell Module with High Accuracy Weighing
Key Features
  • High accuracy compression weigh module for industrial applications
  • Zinc plated steel construction with IP68/69k protection rating
  • Certified for hazardous environments (ATEX, FM, cFM approved)
  • NTEP III 5M and OIML C3 metrology certifications
  • Includes MTB load cell with 3m cable
Product Description

The SWB505 compression weigh module is engineered for precision weighing in demanding industrial environments. Its robust carbon steel construction with zinc plating ensures durability, while the compression design allows direct installation to ground, piers, or structural beams.

This module is ideal for large-scale weighing applications including platform scales, truck scales, and tank/silo weighing systems. With a capacity range from 3kg to 300 tons, it provides reliable performance for both static and dynamic weighing operations.

Technical Specifications
Maximum Capacity 220 lb (100 kg)
Material Zinc plated steel
Load Cell MTB, 3 m cable
Accuracy Standard
Protection Rating IP68/69k
Hazardous Approvals ATEX, FM, cFM
Metrology Certifications NTEP III 5M, OIML C3
System Advantages
Static & Dynamic Weighing

Multipurpose weigh module delivers high accuracy for both static and dynamic applications. The self-aligning rocker pin ensures consistent repeatability.

Safety & Protection

Features 360° checking, built-in anti-uplift and down stops, with hazardous area approvals and IP68 stainless steel load cell for maximum reliability.

Easy Installation & Maintenance

Pre-aligned for quick installation with minimal lift required for load cell removal, reducing downtime during service.
