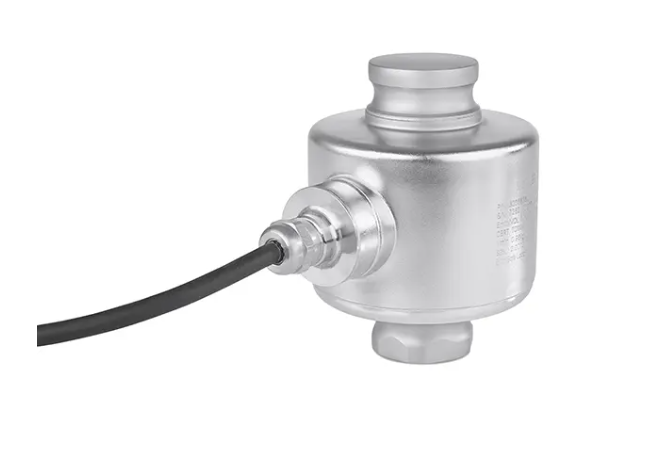

Canister Load Cells SLC611 and 0782 for Truck Scales industrial Weighing Systems
Canister Load Cells SLC611 and 0782 for Truck Scales industrial Weighing Systems
Canister Load Cells SLC611 and 0782 for Truck Scales industrial Weighing Systems
Canister Load Cells SLC611 and 0782 for Truck Scales industrial Weighing Systems
Specifications
Brand Name :
Mettler Toledo
Model Number :
Canister Load Cells SLC611 and 0782
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Supply Ability :
2000 set per month
Delivery Time :
10-30days
Packaging Details :
Caron box
Product :
Mettler Toledo Load Cell
Capacities range :
7.5 t to 300 t (16.5 klb to 660 klb)
Accuracy :
OIML C3, NTEP 5.000d, III M and 10.000d III L M
Hazardous Approvals :
ATEX, IECEx, FM, cFM, Nepsi
Minimum Verification (vmin) :
e = 10 lb (5 kg)
Construction :
Stainless Steel (AISI 316L)
Sealing (IP Rating) :
IP68 / IP69K
Recommended Excitation :
10 VDC (5-15 VDC max)
Height :
Low Profile
Mounting :
Compression with self-aligning top plate.
Description

Canister Load Cells SLC611 and 0782 – High-Capacity Compression Load Cells for Truck Scales Silos Industrial Weighing Systems

1.Multipurpose Load Cells for Heavy-Capacity Weighing

A canister load cell is used for very high capacities and works according to the strain gauge measurement principle: by introducing a vertical force, the canister load cell gets compressed and a current change can be measured, which is linear to the change in weight. Because of the vertical force introduction, canister load cells can measure weights of up to 300 t per load cell. Multipurpose canister load cells can be selected to suit the accuracy requirements of the particular application with OIML R60 C3 as well as NTEP 5000d III M and 10000d III L M approvals available.

2.Global Approvals for Simplified Commissioning

Global approvals such as OIML, NTEP, ATEX and FM are provided as standard; thus the load cells can be used globally in legal-for-trade and Ex weighing systems. The full set of approvals allows versatility and ensures safety in a broad range of applications.

3.Ingress Protection to Withstand Washdown

Due to the hermetically sealed (welded) design, our multipurpose canister load cells are ideal for harsh environments in process, food, and pharma applications. The IP68/IP69K protection class is suited to withstand washdown applications.

4.Weightless System Calibration with CalFree

METTLER TOLEDO canister load cells support CalFree weightless calibration. This allows the calibration of tank scales without the use of test weights.


Parameter Specification
Capacities range 7.5 t to 300 t (16.5 klb to 660 klb)
Accuracy OIML C3, NTEP 5.000d, III M and 10.000d III L M
Hazardous Approvals ATEX, IECEx, FM, cFM, Nepsi
Minimum Verification (vmin) e = 10 lb (5 kg)
Construction Stainless Steel (AISI 316L)
Sealing (IP Rating) IP68 / IP69K
Recommended Excitation 10 VDC (5-15 VDC max)
Height Low Profile
Mounting Compression with self-aligning top plate.


FAQ:

1.What capacities are available for canister load cells?

Available capacities range from 7.5 t to 300 t (16.5 klb to 660 klb).

2.What approvals are available for METTLER TOLEDO canister load cells?

Accuracy: OIML C3, NTEP 5.000d, III M and 10.000d III L M
Hazardous Approvals: ATEX, IECEx, FM, cFM, Nepsi
