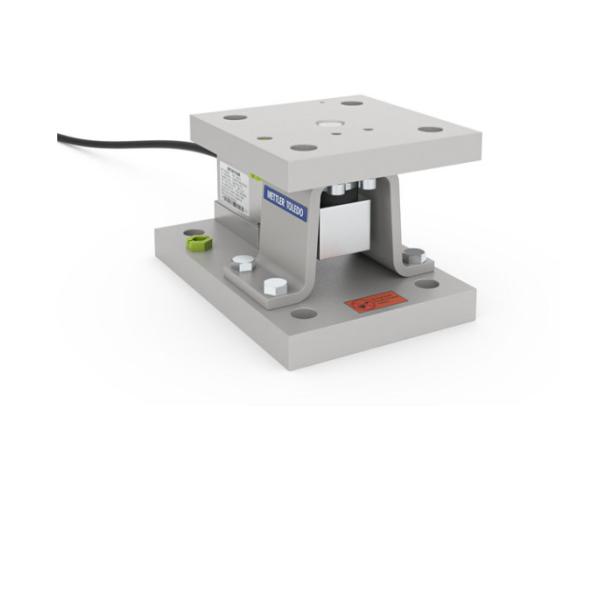

110kg SWB405 Weighing Module Carbon Steel Load Cell Sensor 5m Cable for Platform Scales
110kg SWB405 Weighing Module Carbon Steel Load Cell Sensor 5m Cable for Platform Scales
110kg SWB405 Weighing Module Carbon Steel Load Cell Sensor 5m Cable for Platform Scales
110kg SWB405 Weighing Module Carbon Steel Load Cell Sensor 5m Cable for Platform Scales
Specifications
Brand Name :
Mettler Toledo
Model Number :
Weigh Module SWB405 220kg 5m SS
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Supply Ability :
2000 set per month
Delivery Time :
10-30days
Packaging Details :
Caron box
Product :
Mettler Toledo Load Cell
Maximum Capacity :
250 lb (110 kg)
Material :
Powder Coated Carbon Steel
Metrology :
OIML C3, NTEP III 5M
Load Cell :
SLB415
Accuracy :
Standard
Protection Rating :
IP68, NEMA 6
Environment / Material :
Normal / Carbon Steel
Hazardous Approval :
ATEX, FM
Criticality :
Standard
Cable :
5 m
Description
110kg SWB405 Weighing Module – Carbon Steel Load Cell Sensor with 5m Cable for Platform Scales
Product Specifications
Attribute Value
Product Mettler Toledo Load Cell
Maximum Capacity 250 lb (110 kg)
Material Powder Coated Carbon Steel
Metrology OIML C3, NTEP III 5M
Load Cell SLB415
Accuracy Standard
Protection Rating IP68, NEMA 6
Environment / Material Normal / Carbon Steel
Hazardous Approval ATEX, FM
Criticality Standard
Cable 5 m
Product Description

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Key Features
  • All Safety on Board: Offers all safety features, including anti-uplift protection, 360° checking and down-stop protection to ensure the safety of tank weighing.
  • Easy Integration: SafeLock™ feature is built into SWB405 MultiMount™ weigh modules to make installation easier with all components locked in ideal initial positions.
  • Reliable Weighing: The hermetically sealed SLB415 load cell with IP68 rating can meet most industrial requirements.
Technical Specifications
Material Powder Coated Carbon Steel
Material No 30801027
Maximum Capacity 250 lb (110 kg)
Protection Rating IP68
NEMA 6
Environment / Material Normal / Carbon Steel
Hazardous Approval ATEX
FM
Load Cell SLB415
Accuracy Standard
Metrology OIML C3, NTEP III 5M
