SWC615 PM 30t Stainless Steel Load Cell Module – EN1090 Certified Weighing Solution
SWC615 PM 30t Stainless Steel Load Cell Module – EN1090 Certified Weighing Solution
SWC615 PM 30t Stainless Steel Load Cell Module – EN1090 Certified Weighing Solution
SWC615 PM 30t Stainless Steel Load Cell Module – EN1090 Certified Weighing Solution
Specifications
Brand Name :
Mettler Toledo
Model Number :
Weigh Module SWC615 PM SS 30T 1090 - Discontinued Product
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Supply Ability :
2000 set per month
Delivery Time :
10-30days
Packaging Details :
Caron box
Product :
Mettler Toledo Load Cell
Maximum Capacity :
66,000 lb (30,000 kg)
Material :
304 Stainless steel
Metrology :
OIML C3, NTEP III 5M
Load Cell :
POWERCELL PDX
Accuracy :
Standard
Protection Rating :
IP68/69k
Environment / Material :
Wash-down / Stainless Steel
Hazardous Approval :
ATEX， FM
Criticality :
Condition monitoring
Description
Discontinued SWC615 PM Load Cell Module 30 Ton Stainless Steel Weigh Module
Product Overview

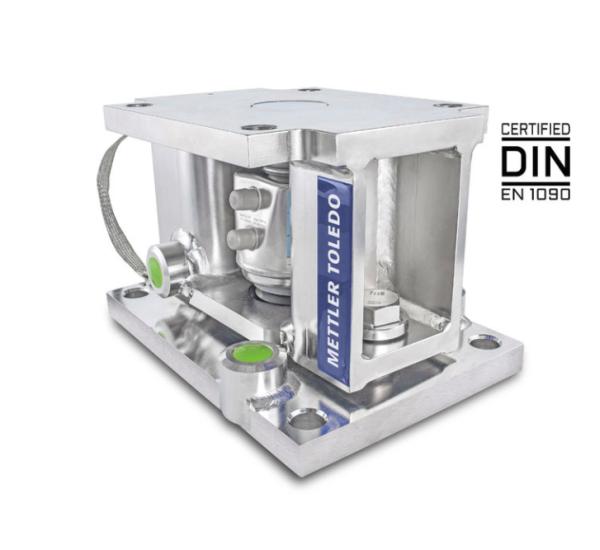

A compression weigh module designed for direct attachment to ground, piers, or structural beams. The top plate and base plate compress when weight is applied, making it ideal for large platform scales including truck and railroad track scales, as well as tank, hopper, and silo weighing applications.

Key Features
  • Multi-Purpose Design: Suitable for static & dynamic tanks, hoppers, mixers, and conveyors
  • High Accuracy: Features fully approved stainless hermetic load cell for all applications
  • Enhanced Safety: 360° self-checking, dual lift-off & down-stops, ground strap
  • Robust Protection: IP68 stainless load cell with hazardous area approvals
  • Easy Installation: Low profile design with non-critical orientation requirements
Technical Specifications
Model: 1090
Maximum Capacity: 66,000 lb (30,000 kg)
Material: 304 Stainless Steel
Material No: 30263215
Load Cell: POWERCELL PDX
Accuracy: Standard
Metrology: OIML C3, NTEP III 5M
Protection Rating: IP68/IP69k
Environment: Wash-down / Stainless Steel
Hazardous Approvals: ATEX, FM
Applications

Ideal for large-scale industrial weighing applications including:

  • Truck and railroad track scales
  • Tank, hopper, and silo weighing systems
  • Industrial process weighing
  • Heavy-duty manufacturing applications
