SWC615-A SS 22.5t Weighing Module – Stainless Steel Load Cell for Industrial Applications
SWC615-A SS 22.5t Weighing Module – Stainless Steel Load Cell for Industrial Applications
SWC615-A SS 22.5t Weighing Module – Stainless Steel Load Cell for Industrial Applications
SWC615-A SS 22.5t Weighing Module – Stainless Steel Load Cell for Industrial Applications
Specifications
Brand Name :
Mettler Toledo
Model Number :
Weigh Module SWC615-A SS 22.5t
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Supply Ability :
2000 set per month
Delivery Time :
10-30days
Packaging Details :
Caron box
Product :
Mettler Toledo Load Cell
Maximum Capacity :
49,500 lb (22,500 kg)
Material :
Stainless Steel V2A (AISI 304)
Metrology :
OIML C3, NTEP III 5M
Load Cell :
SLC611D
Accuracy :
Standard
Protection Rating :
IP68/69k
Environment / Material :
Wash-down / Stainless Steel
Hazardous Approval :
ATEX， FM
Criticality :
Condition monitoring
Description
SWC615-A SS 22.5t Weighing Module – Stainless Steel Load Cell for Industrial Applications
Product Attributes
Attribute Value
Product Mettler Toledo Load Cell
Maximum Capacity 49,500 lb (22,500 kg)
Material Stainless Steel V2A (AISI 304)
Metrology OIML C3, NTEP III 5M
Load Cell SLC611D
Accuracy Standard
Protection Rating IP68/69k
Environment / Material Wash-down / Stainless Steel
Hazardous Approval ATEX, FM
Criticality Condition monitoring
Product Description

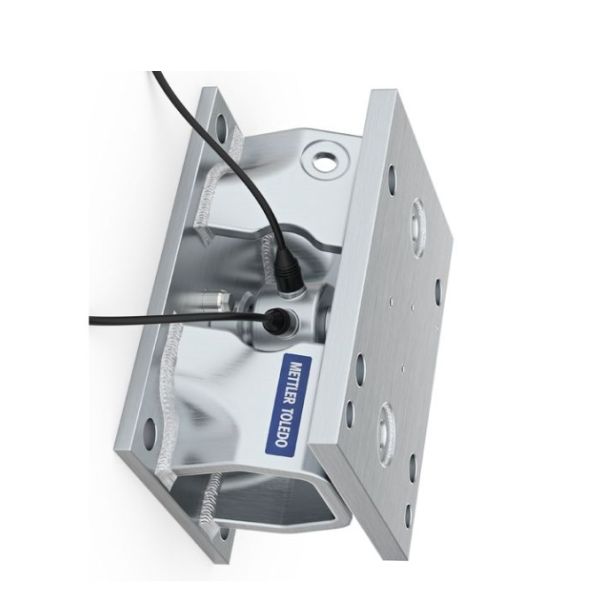

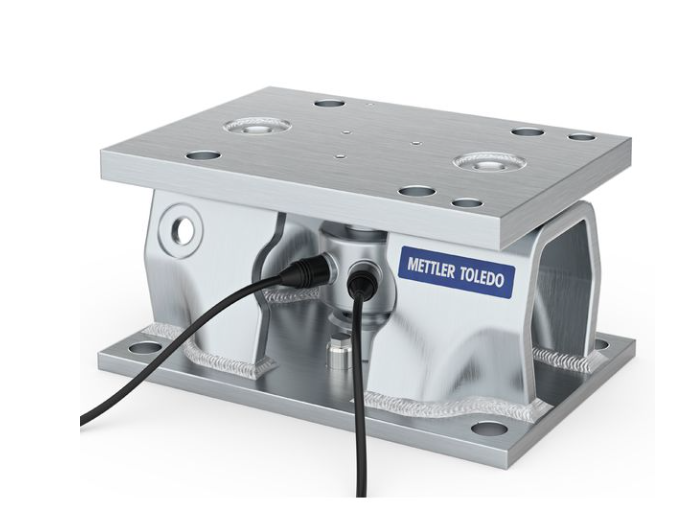

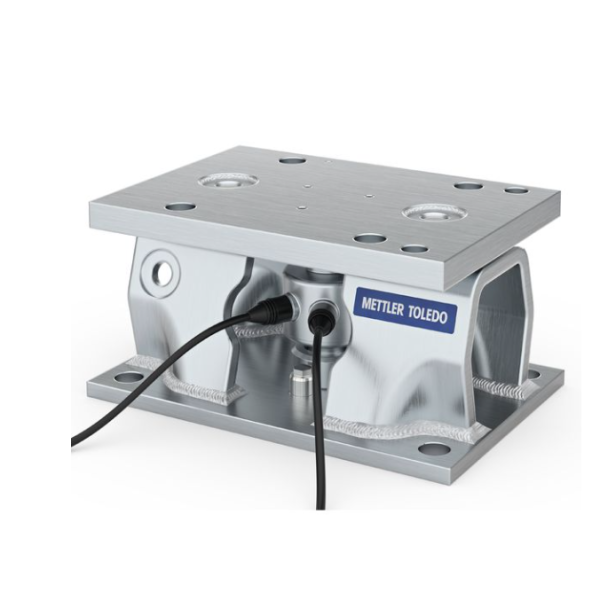

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Multi-Purpose, Feature Packed Weigh Module
  • • Multi Purpose - always Suitable: For static & dynamic tanks, hoppers, mixers & conveyors. With the high accuracy fully approved stainless hermetic load cell it fits all applications.
  • • No Compromise on Safety: Mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells bring peace of mind.
  • • Condition Monitoring: Monitor single load cells for overload, temperature, zero drift etc. and enable reaction before the system shuts down or measures incorrectly.
Specifications
Material Stainless Steel V2A (AISI 304)
Material No 30730532
Maximum Capacity 49,500 lb (22,500 kg)
Protection Rating IP68/IP69k
Environment / Material Wash-down / Stainless Steel
Hazardous Approval ATEX
FM
Load Cell SLC611D
Accuracy Standard
Metrology OIML C3, NTEP III 5M
