SWC615-A SS 30t Load Cell Module Corrosion Resistant Weighing Solution for Tanks
SWC615-A SS 30t Load Cell Module Corrosion Resistant Weighing Solution for Tanks
SWC615-A SS 30t Load Cell Module Corrosion Resistant Weighing Solution for Tanks
SWC615-A SS 30t Load Cell Module Corrosion Resistant Weighing Solution for Tanks
Specifications
Brand Name :
Mettler Toledo
Model Number :
Weigh Module SWC615-A SS 30t
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Supply Ability :
2000 set per month
Delivery Time :
10-30days
Packaging Details :
Caron box
Product :
Mettler Toledo Load Cell
Maximum Capacity :
66,000 lb (30,000 kg)
Material :
Stainless Steel V2A (AISI 304)
Metrology :
OIML C3, NTEP IIIL 10,000
Load Cell :
POWERCELL PDX
Accuracy :
Standard
Protection Rating :
IP68/69k
Environment / Material :
Wash-down / Stainless Steel
Hazardous Approval :
ATEX， FM
Criticality :
Condition monitoring
Description

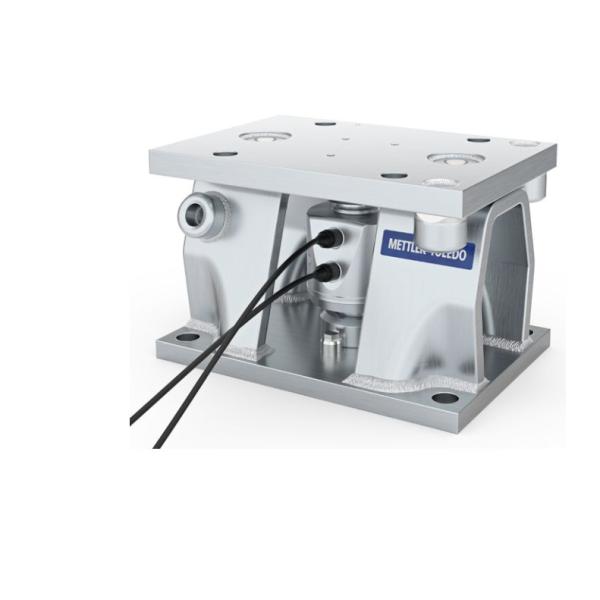

SWC615-A SS 30t Load Cell Module – Corrosion Resistant Weighing Solution for Tanks

A compression weigh module is designed so that its top plate and base plate will be squeezed toward each other when weight is applied to it, and it can be attached directly to the ground, piers or structural beams. Compression weigh modules are typically used in multiples under large platform scales such as truck and railroad track scales and in tank, hopper and silo weighing. Capacities for compression load cells, which are within compression weigh modules, range from 3 kg to 300 tons.

Multi-Purpose, Feature Packed.Weigh Module SWC615-A PowerMount Stainless Steel 30t

1.Multi Purpose – always Suitable

For static & dynamic tanks, hoppers, mixers & conveyors. With the high accuracy fully approved stainless hermetic load cell it fits all applications.

2.No Compromise on Safety

Mechanical safety features (360° self-checking, lift-off & down-stops protections), hazardous approvals & IP68 load cells bring peace of mind.

3.Condition Monitoring

Monitor single load cells for overload, temperature, zero drift etc. and enable reaction before the system shuts down or measures incorrectly.


Specifications:

Material Stainless Steel V2A (AISI 304)
Material No 30730534
Maximum Capacity 66,000 lb (30,000 kg)
Protection Rating IP68/IP69k
Environment / Material Wash-down / Stainless Steel
Hazardous Approval ATEX
FM
Load Cell POWERCELL PDX
Accuracy Standard
Metrology
 OIML C3, NTEP IIIL 10,000
