Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling
Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling
Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling
Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling
Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling
Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling
Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling
Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling
Specifications
Brand Name :
Visbull
Model Number :
CPQYD25
Certification :
ISO / CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T or western Union
Supply Ability :
1500 units per month
Delivery Time :
15 working days after received L/C or your deposit
Packaging Details :
Naked packing in container
Power type :
Diesel
Rated capacity :
2500 kg
Load center :
500 mm
Mast Lifting height :
3000 mm
Max. grade ability :
20%
Free lift height :
240 mm
Fork size(L*W*T) :
1070×125×45 mm
Min Turning Radius :
2230 mm
Max Driving speeds :
17.5 / 20 km/h
Total weight :
3600 kg
Description

Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling

2.5Ton Material Handling Equipment LPG Gasoline Forklift With Nissan Engine Imported From Japan

Description:
Load capacity: 2500 kg
Side-put lifting cylinder and chains offer wide-view visibility
The composite wheel is easy for maintain and adjustment.
The steering system is agile and convenient, the buffer device reduce the vehicle vibration.
The engine has good performance: It has virtues in operation in stability, low noise, low vibration and low fuel consumption

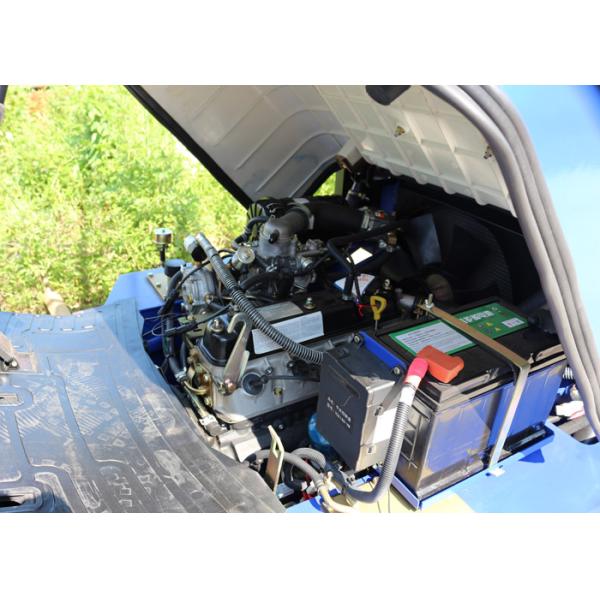

Japanese Nissan K21engine

Main Features:
1. Dual air filter
2. Up exhaust

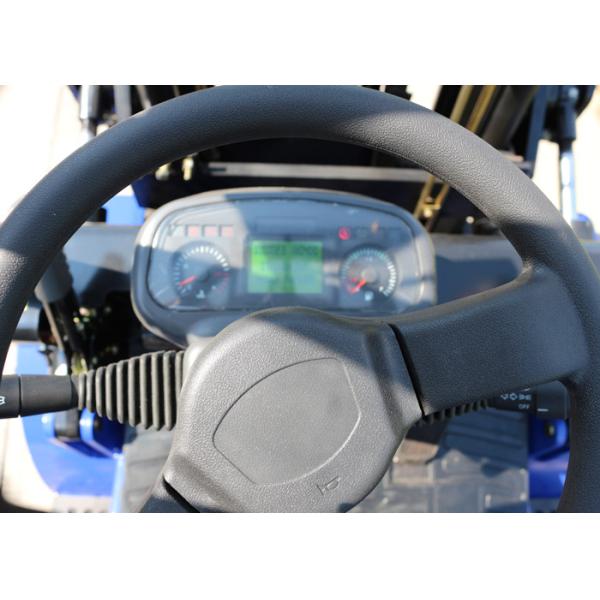

3. Comfortable fluorescent panel
4. Hydraulic transmission

Specifications:

Model

Unit

CPQYD25

Power type

　

Gasoline

Rated capacity

kg

2500

Load center

mm

500

Mast Lifting height

mm

3000

Free lift height

mm

240

Fork size(L*W*T)

mm

1070×125×45

Tilting Angles(Front/Rear)

deg

6°/12°

Front overhang

mm

485

Exterior Size

Length without fork

mm

2580

Overall width

mm

1160

Mast drop

mm

1995

Max. lift

mm

4030

Front-wheel Overhead

mm

2070

Min Turning Radius

mm

2230

Min. intersecting aisle

mm

2000



Speeds

Max Driving speeds

km/h

17.5/20

Lifting speeds

mm/s

500/530

Lowering speeds

mm/s

540/550

Max. grade ability

%

18

Total weight

kg

3600

Tires

Front

　

7.00-12-12PR

Rear

　

6.00-9-10PR

Wheelbase

mm

1600


Tread

Front

mm

970

Rear

mm

970

Min. ground clearance

mm

110

Engine

Model

　

Chinese BY491 Gasoline engine

Rated output

kw/rpm

37/2650

Rated torque

N.m/rpm

148/1800

No. of cylinder

　

4

Displacement

L

2.54

Fuel tank capacity

L

52


Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling

Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling

Nissan Engine LPG Gasoline Propane Powered Forklift for 2.5 Ton Material Handling
