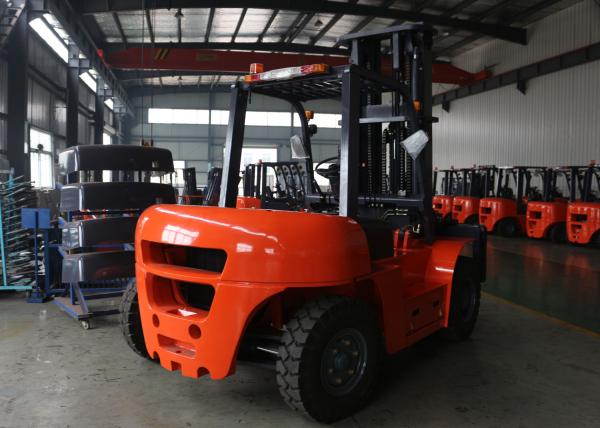

Big Capacity 10 Tons Hydraulic Diesel Material Handling Forklift With Isuzu Engine
Big Capacity 10 Tons Hydraulic Diesel Material Handling Forklift With Isuzu Engine
Big Capacity 10 Tons Hydraulic Diesel Material Handling Forklift With Isuzu Engine
Big Capacity 10 Tons Hydraulic Diesel Material Handling Forklift With Isuzu Engine
Big Capacity 10 Tons Hydraulic Diesel Material Handling Forklift With Isuzu Engine
Big Capacity 10 Tons Hydraulic Diesel Material Handling Forklift With Isuzu Engine
Specifications
Brand Name :
KUDAT
Model Number :
CPCD100
Certification :
ISO / CE
Place of Origin :
CHINA
MOQ :
1 unit
Price :
negotiation
Payment Terms :
L/C at sight, T/T or western Union
Supply Ability :
1500 units per month
Delivery Time :
15 working days after received L/C or your deposit
Packaging Details :
Naked packing in container
Power type :
Diesel
Rated capacity :
10000 kg
Load center :
600 mm
Mast Lifting height :
6600 mm
Max. grade ability :
20%
Free lift height :
210 mm
Fork size(L*W*T) :
1220×170×80 mm
Min Turning Radius :
3900 mm
Max Driving speeds :
26 / 30 km/h
Total weight :
12460 kg
Description

Heavy Capacity KUDAT Brand 10Tons Hydraulic Diesel Forklift CPCD100 With Isuzu Engine

Specifications:

Model

Unit

CPCD100

Power type

　

Diesel

Rated capacity

kg

10000

Load center

mm

600

Mast Lifting height

mm

6600

Free lift height

mm

210

Fork size(L*W*T)

mm

1220×170×80

Tilting Angles(Front/Rear)

deg

6°/12°

Front overhang

mm

718

Exterior Size

Length without fork

mm

4260

Overall width

mm

2245

Mast drop

mm

2850

Max. lift

mm

4325

Front-wheel Overhead

mm

2585

Min Turning Radius

mm

3900

Min. intersecting aisle

mm

3540

Speeds

Max Driving speeds

km/h

26/30

Lifting speeds

mm/s

360/380

Lowering speeds

mm/s

≤600

Max. grade ability

%

22

Total weight

kg

12460

Tires

Front

　

9.00-20-14PR

Rear

　

9.00-20-14PR

Wheelbase

mm

2800

Tread

Front

mm

1600

Rear

mm

1700

Min. ground clearance

mm

245

Engine

Model

　

Isuzu 6BG1 Engine

Rated output

kw/rpm

37/2650

Rated torque

N.m/rpm

148/1800

No. of cylinder

　

6

Displacement

L

5.785

Fuel tank capacity

L

140

Advantage:

-This new series forklifts with the latest technical design will provide you excellent operating performance,

-and make your work handier by their high standard performance, comfortable driving experience and the

simple and safe operation.

Environmental Friendly

-The emission meets EC new regulation

-High efficiency hydraulic system to lower the fuel consumption

-Using environmental friendly material.

-Damping device on the mast to reduce impact and vibration

-Sound insulating and absorbing device are used to reduce the noise

Ergonomic design

-Using power braking system to reduce footplate strength

-Control lever right located to effectively reduce drivers arm tiredness

-Dual combined switch lever as a car to enable easy operating

-Wide mast with good visibility

-Wide space for boarding and driving, increasing leg space

-Engine automatic monitor control, when the engine oil pressure is too low or water temperature is too high, the engine will be automatically shut off

Safety performance

-Enclose cabin is made of assembling steel plate, high strength overhead is designed to ensure the safety

-Parking brake with safety protection device, when parking brake is working, the forklift will not move even the direction lever is turned

-Safety device in mast hydraulic system prevents material falling down in case of hose broken

-High pressure hose is designed far away from the driver

-Safety wire harness, using waterproof plug.
