6 Tons Macnam Wheel Hybrid Navigation AGV
6 Tons Macnam Wheel Hybrid Navigation AGV
6 Tons Macnam Wheel Hybrid Navigation AGV
6 Tons Macnam Wheel Hybrid Navigation AGV
6 Tons Macnam Wheel Hybrid Navigation AGV
6 Tons Macnam Wheel Hybrid Navigation AGV
6 Tons Macnam Wheel Hybrid Navigation AGV
6 Tons Macnam Wheel Hybrid Navigation AGV
Specifications
Brand Name :
Remarkabl
Model Number :
RWP/KPX/RGV/AGV
Certification :
ISO9001,ISO14001,ISO45001,CE
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 sets/year
Delivery Time :
40 days
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
name :
Automated Guided Carts
Power Supply :
Maintenance Free Battery /lithium Battery
Climbing slope :
No More Than 2 Degrees /customized
Brake :
Electric Motor Brakes
Control Method :
Remote Control/ Hand Operate Pendant/PLC
Warranty :
1 Year
Safety Features :
Audible And Visual Alarm Lamp And Emergency Stop Button,Anti-collision Edge，Laser Obstacle Avoidance Sensor
feature :
Automated ，explosion-proof，high temperature，Omnidirectional movement/Lifting/Clamping device/customized
Move Way :
Forward,backward,Omnidirectional movement， horizontally and diagonally movement, and can rotate 360 degrees in place ,turning while driving with no stop
Application :
Industrial Filed,hydropower industry，military industry， automobile industry，Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc
Running speed :
0-25 M/min(Adjustable)
Key words :
transfer cart,transfer trolley,battery transfer trolley，Industrial Transfer Cart,Coil transfer transfer cart，heavy-duty transporter, trackless transfer cart, Transfer Cart,
Steering mode :
Differential , hydraulic, steering wheel
model :
Automatic trackless transfer cart AGV
Description

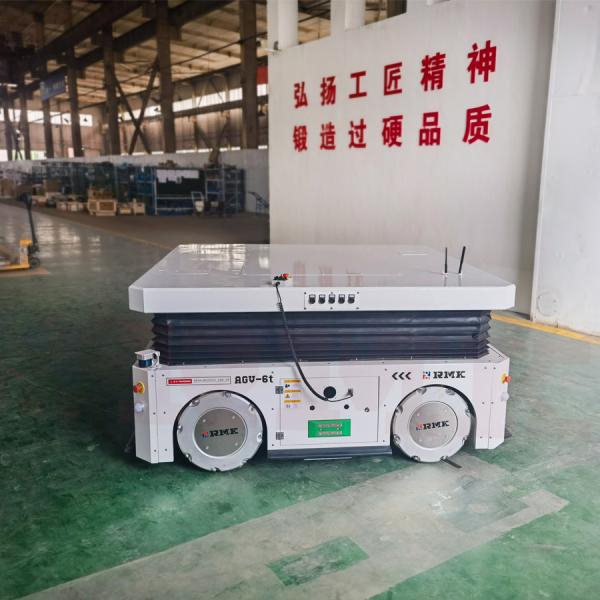

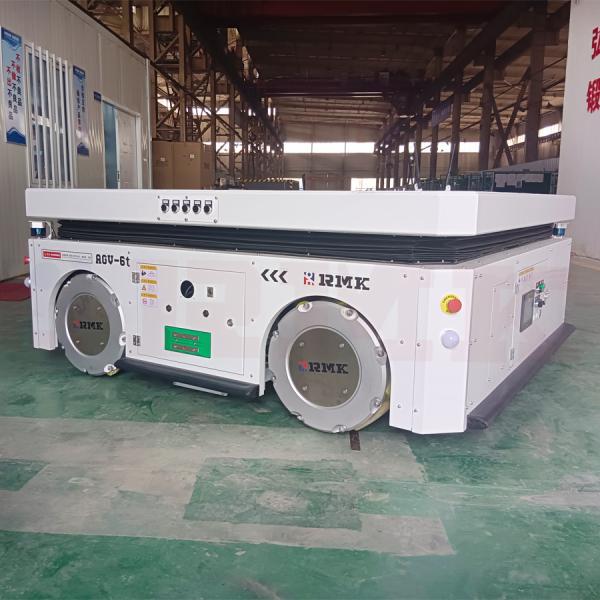

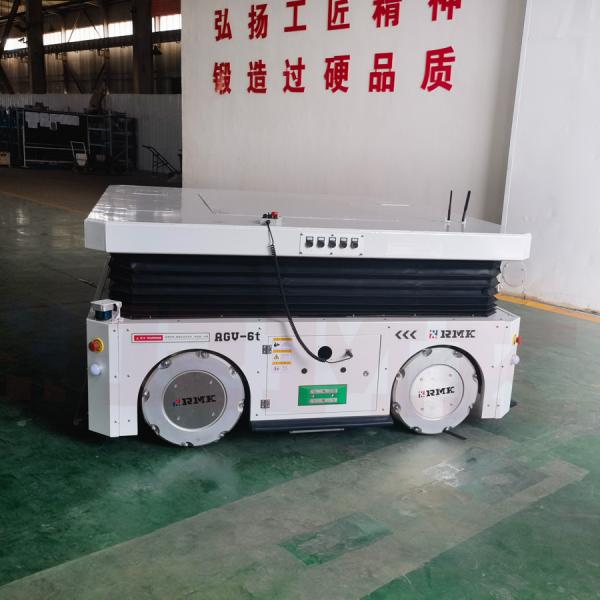

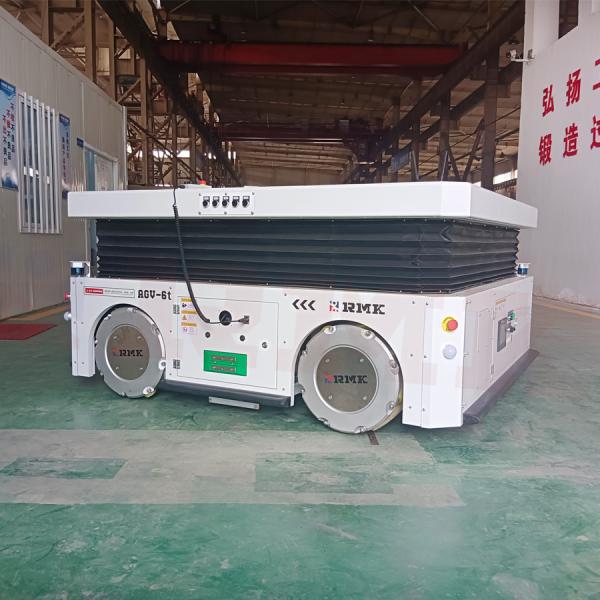

6 Tons Macnam Wheel Hybrid Navigation AGV

The 6 tons hybrid navigation AGV adopts various navigation methods such as laser navigation, magnetic stripe navigation, and QR code navigation. The transfer cart adopts McNamp wheels, which are a special type of wheel composed of small rollers in circles. These rollers can freely rotate along their own axis, and their axes are all at a 45 ° angle with the axis of the wheel hub.

6 Tons Macnam Wheel Hybrid Navigation AGV

6 Tons Macnam Wheel Hybrid Navigation AGVThe characteristics of this type of wheel include:

1.Omni directional mobility. The McNaam wheel enables the cart to translate and rotate in multiple directions, including forward, lateral, diagonal, and stationary rotation, enabling the cart to move in all directions without the need for complex steering mechanisms.

High flexibility. The unique structure of McNaam wheels enables them to adapt to various terrains and spatial limitations, particularly suitable for narrow spaces and scenes that require high-precision position control.

2.High efficiency. Although the efficiency of McNaam wheels is slightly reduced compared to ordinary wheels, they have been widely used in transportation, warehousing, and modern logistics industries, demonstrating their advantages of high efficiency and flexibility.

3.High load-bearing capacity. The McNamp wheel has high load-bearing capacity and can support the application of heavy-duty mobile platforms and outdoor mobile robots.

4.Low noise and low jitter. The design of McNamp wheels helps to reduce noise and vibration during operation, providing a smoother transportation experience.

6 Tons Macnam Wheel Hybrid Navigation AGV6 Tons Macnam Wheel Hybrid Navigation AGV6 Tons Macnam Wheel Hybrid Navigation AGV
