5 Ton Automated Guided AGV Handling Robot Transfer Cart
5 Ton Automated Guided AGV Handling Robot Transfer Cart
5 Ton Automated Guided AGV Handling Robot Transfer Cart
5 Ton Automated Guided AGV Handling Robot Transfer Cart
5 Ton Automated Guided AGV Handling Robot Transfer Cart
5 Ton Automated Guided AGV Handling Robot Transfer Cart
5 Ton Automated Guided AGV Handling Robot Transfer Cart
5 Ton Automated Guided AGV Handling Robot Transfer Cart
5 Ton Automated Guided AGV Handling Robot Transfer Cart
5 Ton Automated Guided AGV Handling Robot Transfer Cart
Specifications
Brand Name :
Remarkabl
Model Number :
RWP/KPX/RGV/AGV
Certification :
ISO9001,ISO14001,ISO45001,CE
Place of Origin :
china
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 sets/year
Delivery Time :
40 days
Packaging Details :
The whole cart will be packed by the tarp, the parts will be packed by polywood case.
name :
Automated Guided Carts
Power Supply :
Maintenance Free Battery /lithium Battery
Climbing slope :
No More Than 2 Degrees /customized
Brake :
Electric Motor Brakes
Control Method :
Remote Control/ Hand Operate Pendant/PLC
Warranty :
1 Year
Safety Features :
Audible And Visual Alarm Lamp And Emergency Stop Button,Anti-collision Edge，Laser Obstacle Avoidance Sensor
feature :
Automated ，explosion-proof，high temperature，Omnidirectional movement/Lifting/Clamping device/customized
Move Way :
Forward,backward,Omnidirectional movement， horizontally and diagonally movement, and can rotate 360 degrees in place ,turning while driving with no stop
Application :
Industrial Filed,hydropower industry，military industry， automobile industry，Widely, Material or stock shuttle, Light and heavy industry, Workshop/factory etc
Running speed :
0-25 M/min(Adjustable)
Key words :
transfer cart,transfer trolley,battery transfer trolley，Industrial Transfer Cart,Coil transfer transfer cart，heavy-duty transporter, trackless transfer cart, Transfer Cart,
Steering mode :
Differential , hydraulic, steering wheel
model :
Automatic transfer cart AGV/RGV
Description

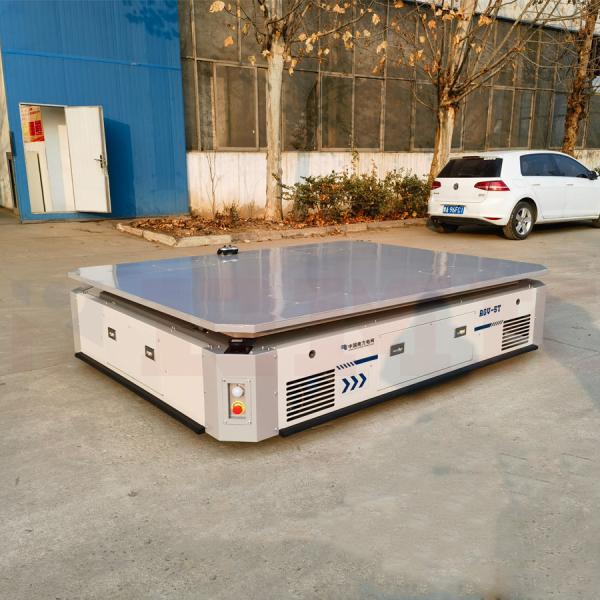

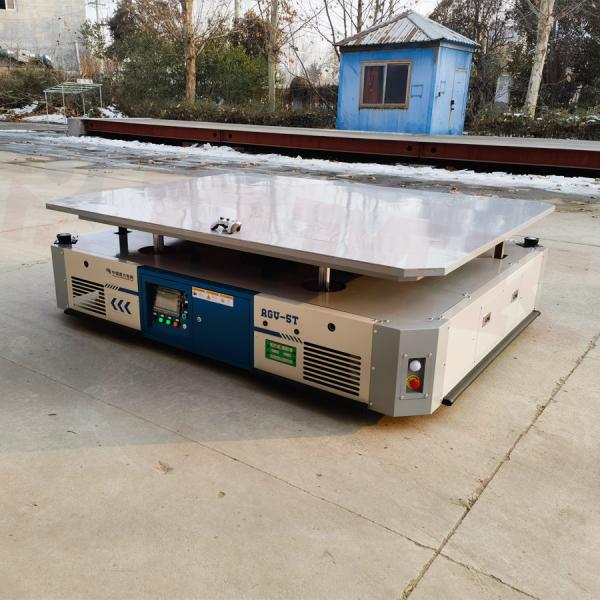

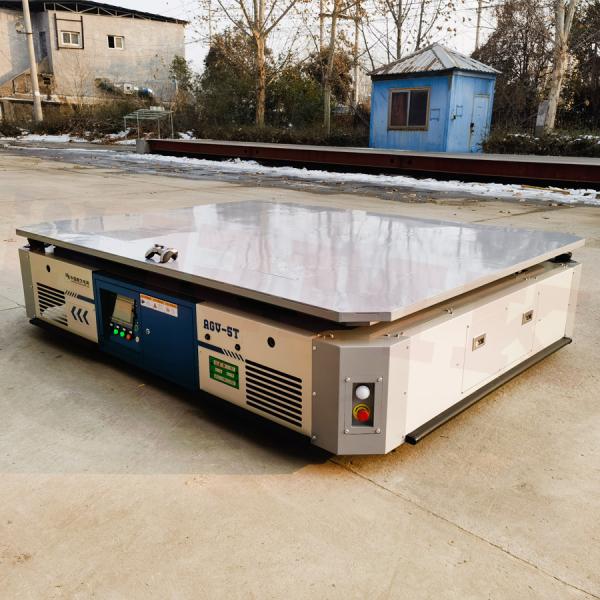

5 Ton automated guided AGV handling robot

5 Ton Automated Guided AGV Handling Robot Transfer CartAGV, also known as Automatic Guided Vehicle, is an intelligent mechanical device that can operate autonomously without human intervention. AGVs have unique characteristics such as automatic navigation, intelligent scheduling, precise positioning, safety performance, scalability, and flexibility, making them widely used in the medical, electronic, food, logistics, and industrial production industries.

5 Ton Automated Guided AGV Handling Robot Transfer Cart5 Ton Automated Guided AGV Handling Robot Transfer Cart

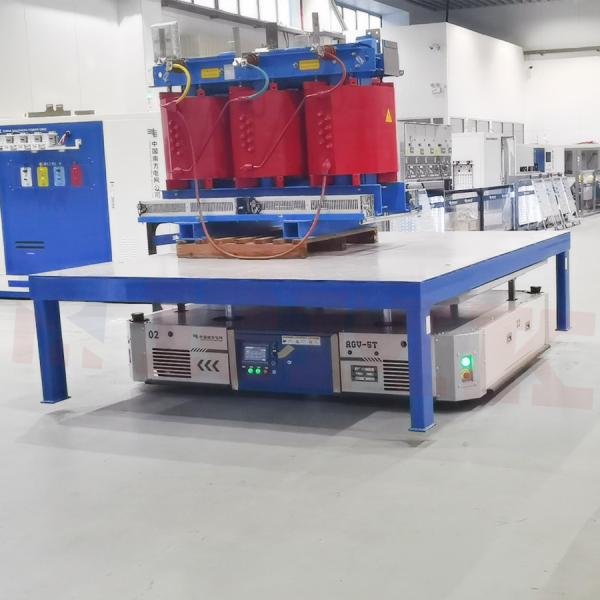

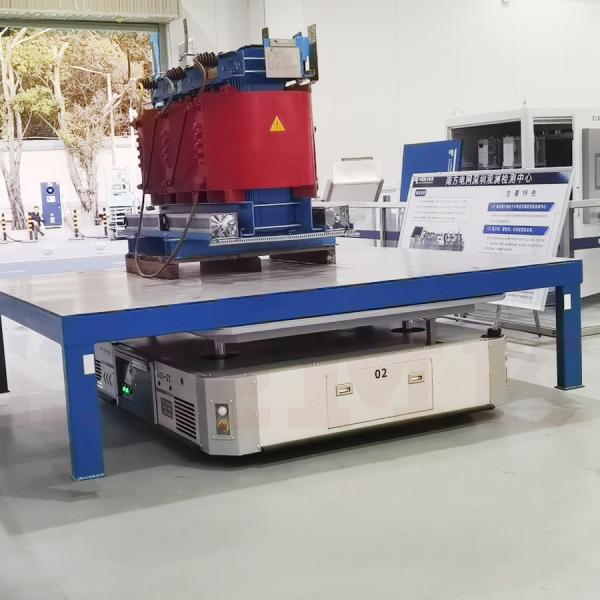

This 5-ton AGV is controlled and operated by a PLC intelligent control system, consisting of a table, drive wheels, universal wheels, wheel group, motor, sound and light alarm, emergency stop button, and collision block. Intelligent control system and other components. Equipped with laser navigation and obstacle avoidance functions, it automatically stops when encountering people. AGV has a wide range of applications, flexible operation, and can operate in narrow spaces with high automation, saving time and effort.

5 Ton Automated Guided AGV Handling Robot Transfer Cart

An unmanned automated vehicle with magnetic stripe navigation function that can travel along a planned path, powered by batteries, and equipped with safety protection and various auxiliary mechanisms (such as transfer and assembly mechanisms).

5 Ton Automated Guided AGV Handling Robot Transfer Cart

5 Ton Automated Guided AGV Handling Robot Transfer Cart

Technical parameters for trackless electric transfer carts
rated load(t) 5 10 15 20 30 40 50 150
impacted rated load(t) 7.5 15 22.5 30 45 60 75 225
structure of frame steel plates welded, beam structure
max. wheel load(t) 2.8 4.3 4.8 5.6 7.7 10 12 27
ground requirement cement floor steel plate ground
table size(mm) 3000×2000 3600×2000 4000×2200 4500×2200 5000×2200 5500×2300 6000×2300 10000×3000
height of the whole cart(mm) 450 530 600 600 650 700 700 1200
ground clearance(mm) 50 75
wheels base(mm) 1500 1700 1800 2000
axles distance(mm) 2500 3100 3400 3900 4300 4800 5200 10000
turning radius(mm) 2501 3101 3401 3901 4301 4801 5201 10001
turning type turning while driving with no stop
control method for turning control button
turning structure mechanical
motor power(Kw) 3.5 5 6 7 10 12 15 15
wheel diameter(mm) Ф300 x 4 Ф350 x 4 Ф400 x 4 Ф400 x 6 Ф500 x 6 Ф600 x 8
wheel material ZG55+hydropur ture
running speed(m/min) 0-15 0-12
brake principle electric magnetic brake
operation method with wire or no wire
battery model D-250 x 24 D-33 x 24 D-400 x 24 D-440 x 24 D-250 x 36 D-330 x 36 D-440 x 36 D-600 x 36
battery maintenance free of maintenance
charger's installation installed on cart split-type
charger function automatic charging
radar control 3-0.3m, automatic stop for obstacles
warning equipment sound and light
other functions turning light, night light and power display

5 Ton Automated Guided AGV Handling Robot Transfer Cart

5 Ton Automated Guided AGV Handling Robot Transfer Cart

5 Ton Automated Guided AGV Handling Robot Transfer Cart
