100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
Specifications
Model Number :
DGKYD211B447FD2A4DP
LED color :
customized
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Housing Material :
PBT Polyester
Price :
Please contact us to get the latest price.
Product Name :
RJ45 Shielded Connector
Supply Ability :
100K pcs/day
Filter :
With Filter
Brand Name :
DGKYD
Ports of number :
single port
MOQ :
1 piece
Delivery Time :
10 days
Feature :
Metal pcb MOUNTABLE rj45 jack
operation temperature :
-40°C~+85°C
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Gender :
Female
Packaging Details :
Tray in Carton
storage temperature :
-40°C~+85°C
Place of Origin :
DongGuan of China
Applications :
switch,transceiver,laptop,computer RJ45 etc
Description
RJ45 100Mbps Integrated Filtering Network Connector POE Industrial Network Port DGKYD211B447FD2A4DP
Product Overview

RJ45 100Mbps integrated filtering network connector with POE capability for industrial network applications.

Part Number: DGKYD211B447FD2A4DP

Product Documentation: DGKYD211B447FD2A4DP.pdf

Technical Parameters
Parameter Specification
Part Number DGKYD211B447FD2A4DP
Brand DGKYD/OEM/ODM
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ45
Connector Type Modular Jack
Latch Style Standard
Latch TAB-UP
Filter With Filter
LED Option With LED
LED Color Green/Yellow
Panel Stops With Panel Stops
Shielded With metal shield
Applies To Printed Circuit Board
Port Configuration Single Port
Number of Positions 10
Jack Configuration 1X1
Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u
Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel
PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit
Board Lock With/Without Board Lock
Housing Material PBT Polyester
Housing Color Black
Housing Material Temperature Standard
UL Flammability Rating UL 94V-0

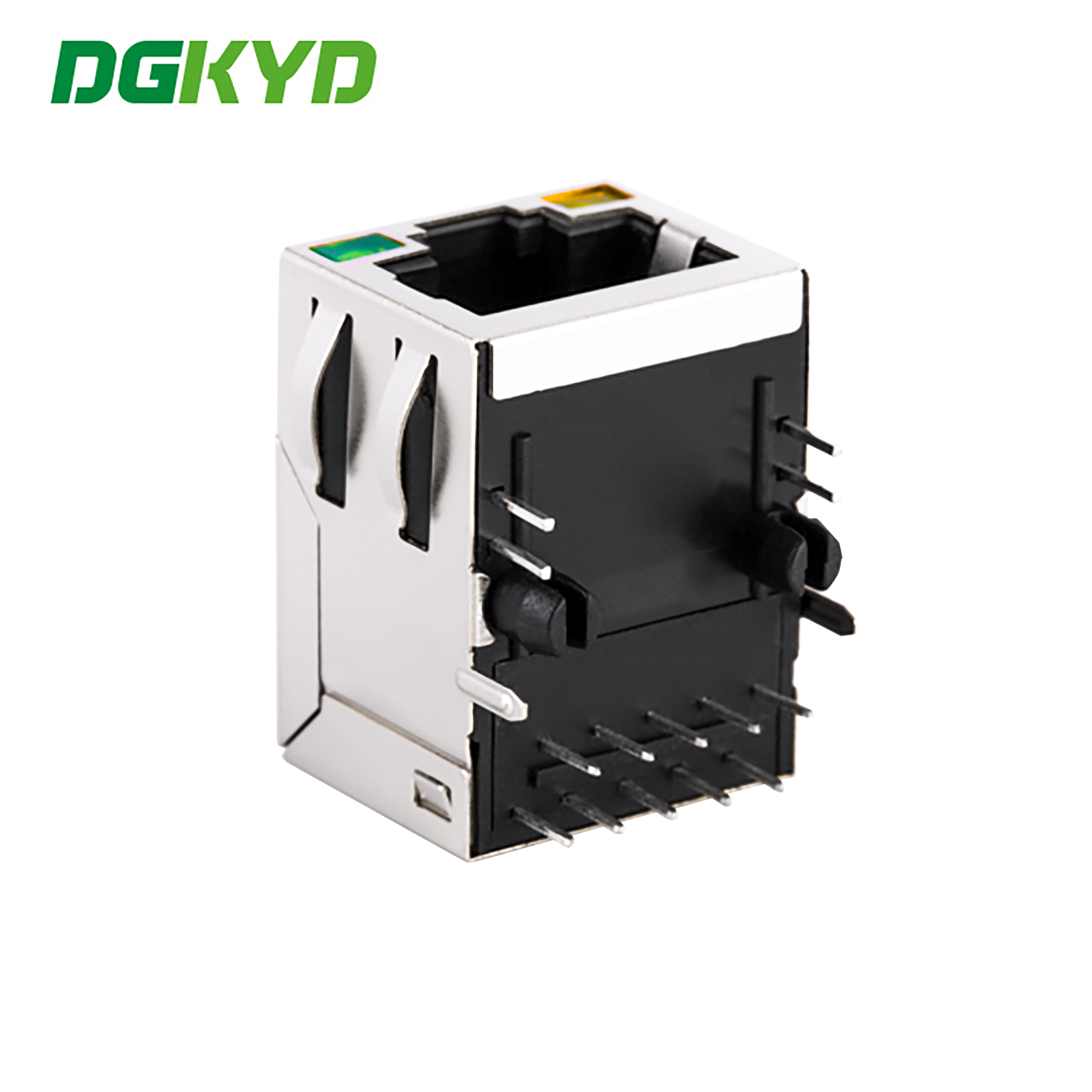

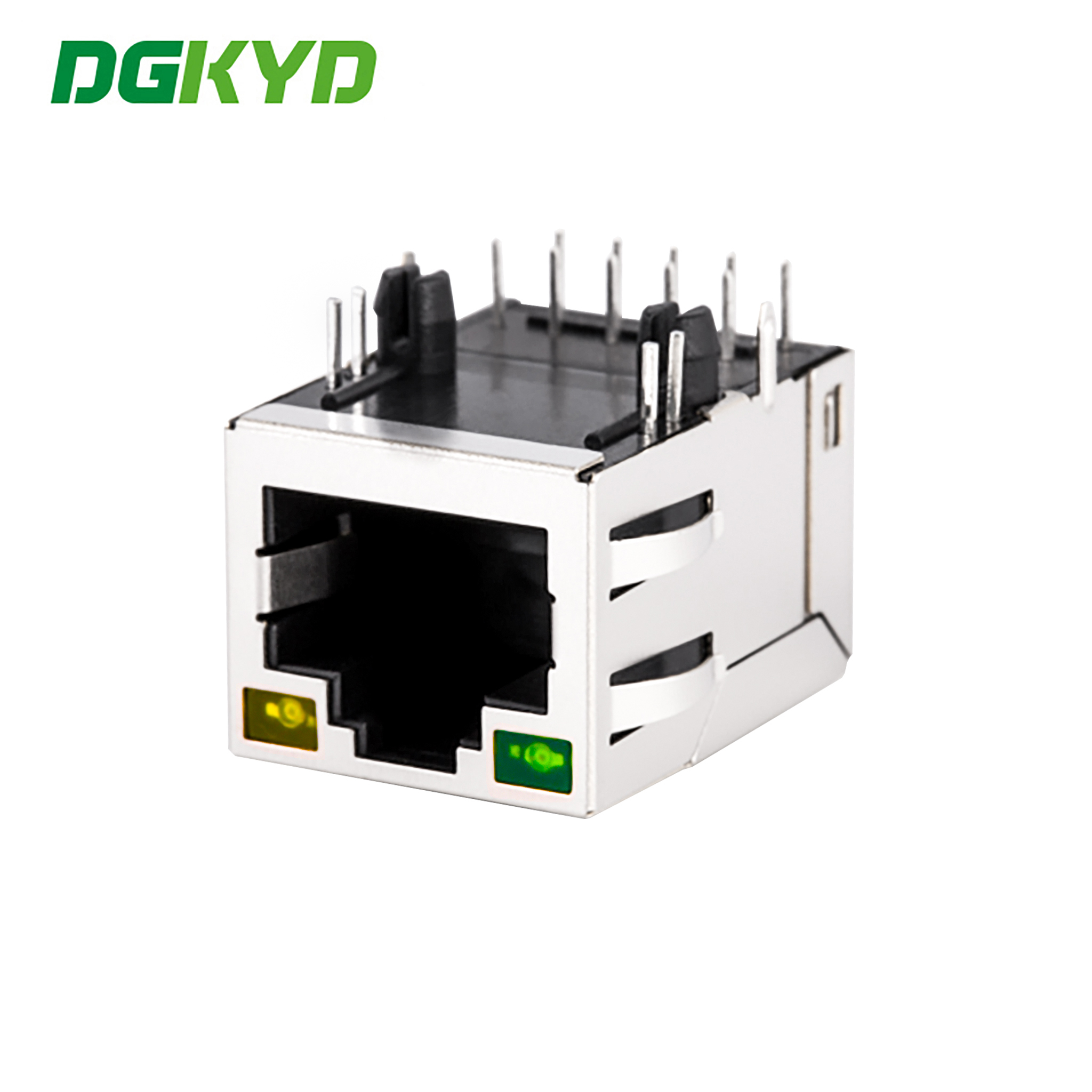

Product Images
100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port 100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port 100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port 100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port 100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port 100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port 100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port 100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port 100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port 100Mbps POE RJ45 Shielded Connector with Integrated Filter for Industrial Network Port
Technical Specifications
  • Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
  • Type: RJ45 with built-in magnetics
  • Working Frequency: High frequency with filtering and anti-interference characteristics
  • Working Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

  • Business Mode: Manufacturer
  • Delivery Time: Approximately two weeks for standard orders
  • Customization Options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or without
    • Coil ratio of magnetic core
    • Magnetics circuit diversification options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
