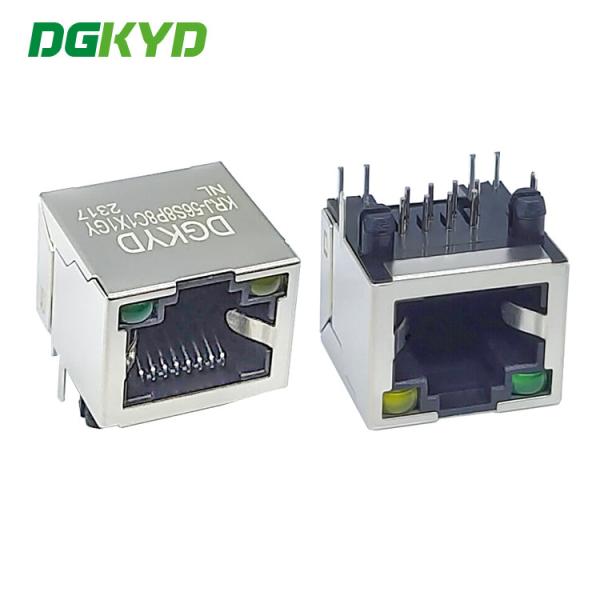

KRJ-56S8P8C1X1GYNL single port RJ45 connector 8P8C with light without filter crystal head communication interface
KRJ-56S8P8C1X1GYNL single port RJ45 connector 8P8C with light without filter crystal head communication interface
KRJ-56S8P8C1X1GYNL single port RJ45 connector 8P8C with light without filter crystal head communication interface
KRJ-56S8P8C1X1GYNL single port RJ45 connector 8P8C with light without filter crystal head communication interface
KRJ-56S8P8C1X1GYNL single port RJ45 connector 8P8C with light without filter crystal head communication interface
KRJ-56S8P8C1X1GYNL single port RJ45 connector 8P8C with light without filter crystal head communication interface
KRJ-56S8P8C1X1GYNL single port RJ45 connector 8P8C with light without filter crystal head communication interface
KRJ-56S8P8C1X1GYNL single port RJ45 connector 8P8C with light without filter crystal head communication interface
KRJ-56S8P8C1X1GYNL single port RJ45 connector 8P8C with light without filter crystal head communication interface
KRJ-56S8P8C1X1GYNL single port RJ45 connector 8P8C with light without filter crystal head communication interface
Specifications
Brand Name :
DGKYD
Model Number :
KRJ-56S8P8C1X1GYNL
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
DongGuan of China
MOQ :
1 piece
Price :
Please contact us to get the latest price.
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Delivery Time :
10 days
Packaging Details :
Tray in Carton
Modular Jack & Plug Interface Type :
RJ45 without transformer
Port Configuration :
Single
Connector Style :
Jack
Gender :
Female
Shielded :
Metal Shielded
Speed :
10/100/1000 Base-tx
Status Indicator :
G/Y LED
Latch Orientation :
TAB UP
Description

Factory Customized single port shielded lan connector RJ45 keystone jack, G/Y LED
ATTRIBUTE ATTRIBUTE VALUE
TEMPERATURE -40℃ to +85℃
SHIELD METAL SHIELD
ROHS COMPLIANT YES
PCB MOUNT ANGLE SIDE ENTRY
PACKAGE DIP
CONNECTOR & CONTACT TERMINAATES TO Printed Circuit Board
NUMBER OF PORTS 1X1
NUMBER OF CONTACTS 8
LED OPTION G/Y LED
LATCH ORIENTATION TAB UP
HOUSING MATERIAL PBT UL94V-0
CONTACT MATING AREA PLATING GOLD 0.6U'' PLATING
CONNECTOR TYPE RJ45
CONNECTOR MATERIAL COLOR BLACK

  • Extensive temperature range between -40…+85 degrees C
  • Minimum product life requirement of 10 years
  • 260 degrees C PIP soldering reflow capability
  • Plating thickness 0,76µm [30µinch] gold over 1,27µm [50µinch] nickel

Applications:

  • Programmable Logic Controllers
  • IO Modules
  • Servo Drive
  • Industrial PC
  • All Industrial applications requiring Ethernet or RJ45 connectivity

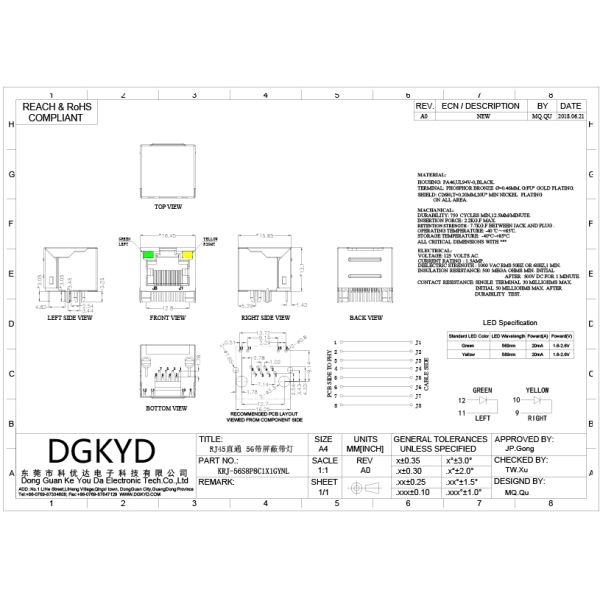

► Product Drawing

KRJ-56S8P8C1X1GYNL single port RJ45 connector 8P8C with light without filter crystal head communication interface
