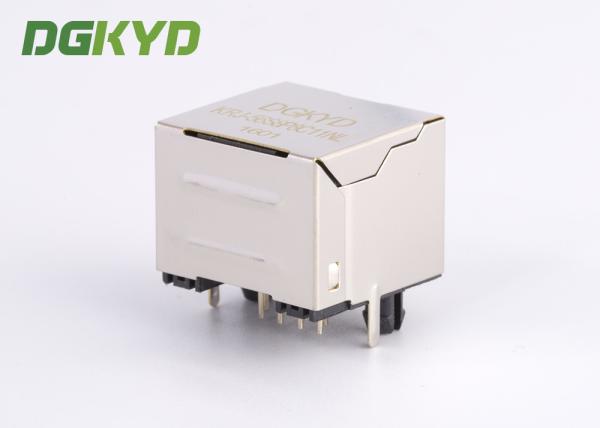

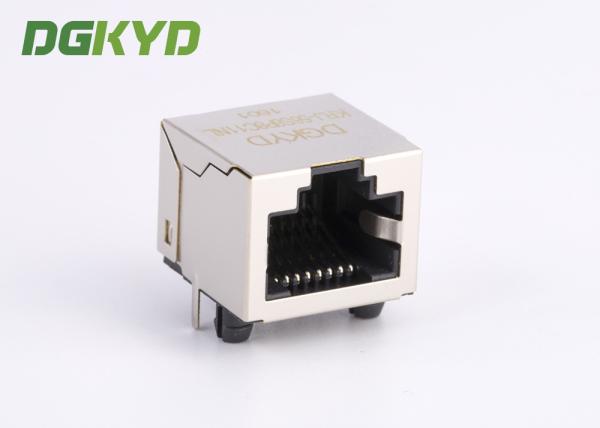

1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer
Specifications
Place of Origin :
DongGuan of China
Brand Name :
DGKYD
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Model Number :
KRJ-56S8P8C11NL
MOQ :
1 piece
Packaging Details :
Tray in Carton
Delivery Time :
10 days
Payment Terms :
T/T, D/P, D/A, L/C, Western Union, MoneyGram
Supply Ability :
100K pcs/day
Price :
Please contact us to get the latest price.
Port :
Single Port
Latch :
Tab up
Length :
15.85mm
Shield :
Yes
Port Angle :
Right Angle
Transformer :
Without transformer
Description

Right Angle Cat 5 RJ45 Connector , RJ45 Modular Jack without transformer

1x1 Right Angle 8p8c RJ45 shielded Connector without internal transformer

  • 1X1 Single port RJ45 Modular jack without transformer
  • tap-up rj45 connector without led, right angle
  • Insertion Force:2.2KG.F.max
  • Retention Strength;7.7KG.Fmin between jack and plug
  • Durabbilith:600mating cycles min
  • Operating temperarure range :-40℃ to +85℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shield:YES
  • Rohs compliant(GP)
  • Length:15.75mm
  • LEDS:NO
  • EMI fingers:YES
  • Usage:KRJ-56S8P8C11NL

Applications:

• Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical

transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,

HomePNA,DSL／ADSL and so on.
