Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Specifications
Model Number :
DGKYD211B018FD2A4D
Number of cores :
8
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Encapsulation method :
single In-line Package
Shield :
brass
Price :
Please contact us to get the latest price.
PCB Mount Style :
DIP
Supply Ability :
100K pcs/day
Product type :
RJ45
Brand Name :
DGKYD

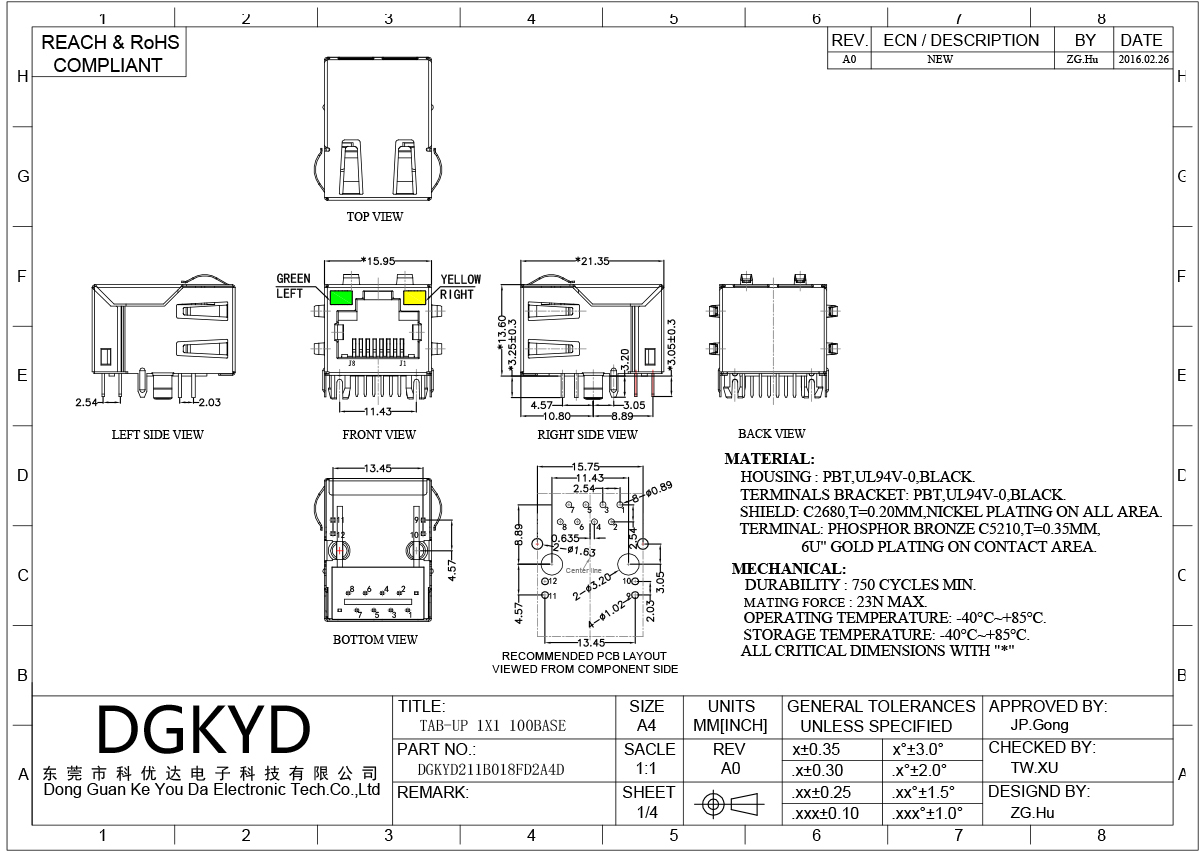

Dimension (mm) :
15.95 * 21.35*13.6
MOQ :
Negotiation
Delivery Time :
10 days
Number of pins :
8
Storage temperature :
- 40 ℃ ~ 85 ℃
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Shape :
rectangle
Gold plating on contact pins :
6U
Place of Origin :
DongGuan of China
Operating temperature :
- 40 ℃ ~ 85 ℃
Packaging Details :
1080Tray in Carton
Description

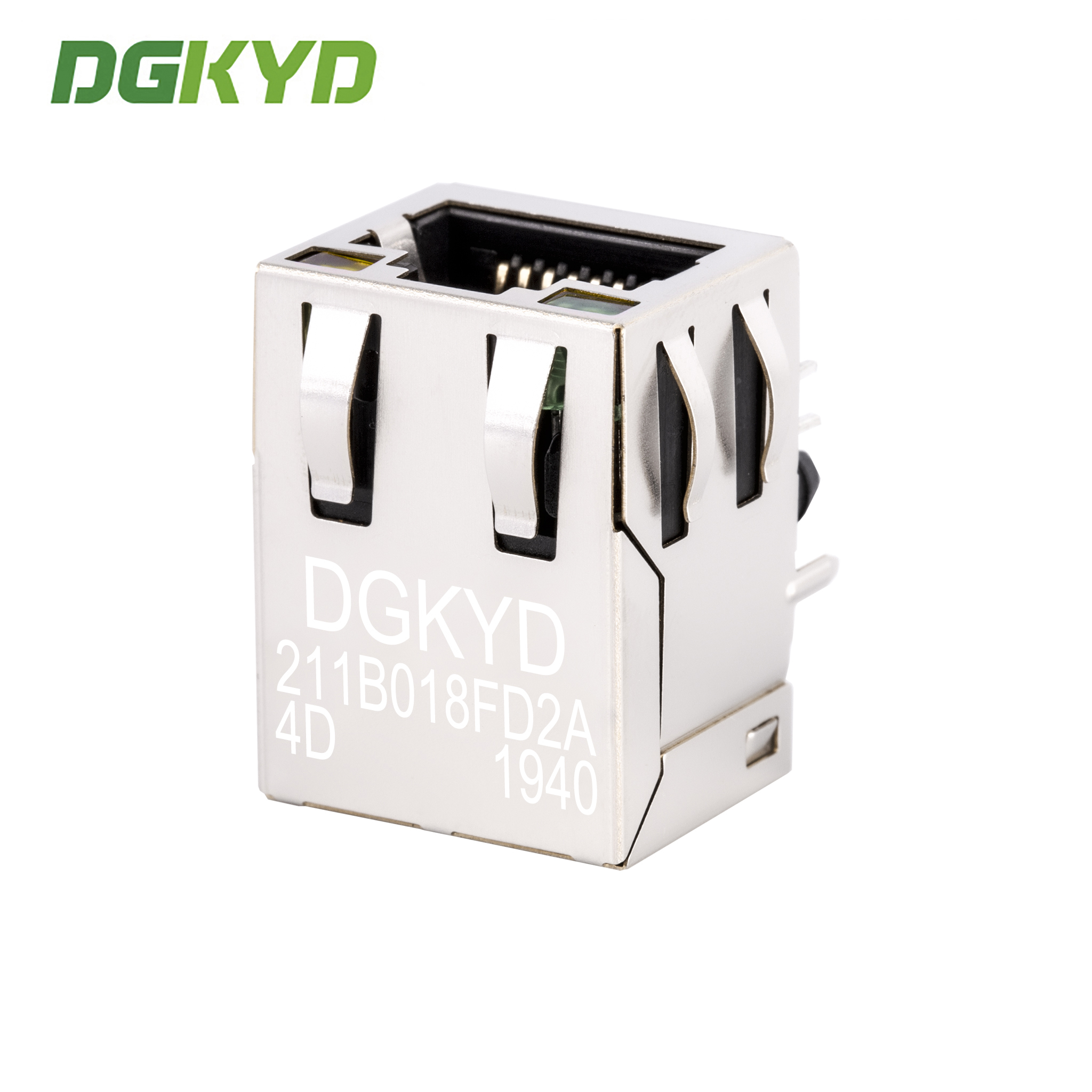

RJ45 Connector Industrial Grade Network Port 8PIN Shielded Computer Connector DGKYD211B018FD2A4D

Industrial grade RJ45 connector with 8PIN shielded design for reliable network connectivity in demanding environments.

Product Documentation
Download Product Datasheet (PDF)
Technical Parameters
Part NumberDGKYD211B018FD2A4D
BrandDGKYD/OEM/ODM
Product TypeConnector-Modular
Connector StyleJack
Jack TypeRJ45
Connector TypeModular Jack
Latch StyleStandard
LatchTAB-UP
FilterWith Filter
LED OptionWith LED
LED ColorGreen/Yellow
Panel StopsWith Panel Stops
ShieldedWith metal shield
Applies ToPrinted Circuit Board
Port ConfigurationSingle Port
Number of Positions8
Jack Configuration1X1
Terminals per Port8
Shield MaterialCopper Alloy preplated with Nickel
PCB Mounting OrientationSide Entry (Right Angle)
Contact Mating Area PlatingGold 6u
Contact Base MaterialPhosphor Bronze
Solder Tail Contact Plating MaterialTin-Lead over Nickel
PCB Mounting StyleThrough Hole
Termination Method to PC BoardThrough Hole-Press-Fit
Board LockWith/Without Board Lock
Housing MaterialPBT Polyester
Housing ColorBlack
Housing Material TemperatureStandard
UL Flammability RatingUL 94V-0
Product Images
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Industrial Grade 8PIN RJ45 Shielded Connector with 6U Gold Plating for Network Port
Technical Specifications

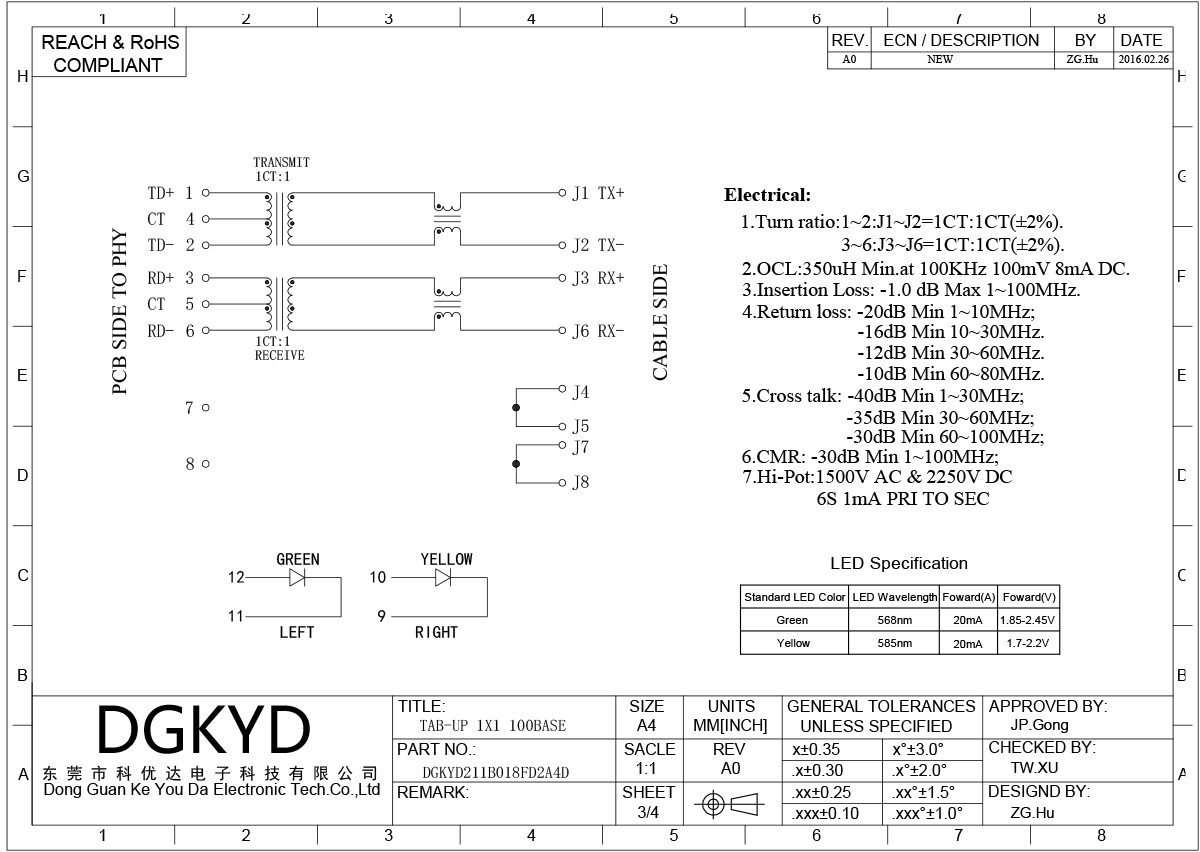

  • Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
  • Type: RJ45 with built-in magnetics
  • Working Frequency: High frequency with filtering and anti-interference characteristics
  • Working Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply.

  • Business Mode: Manufacturer
  • Delivery Time: Approximately two weeks for standard orders
  • Customization Options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or without
    • Coil ratio of magnetic core
    • Magnetics circuit diversification options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions
Are you a trading company or manufacturer?
We are a manufacturer. Welcome to visit our factory.
What about your lead time?
For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Can you provide samples? Are they free?
Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Can I put my own logo on it?
Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
