Specifications
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
PCB Mount Style :
DIP
Model Number :
DGKYD311B082GWA4DN
Encapsulation method :
single In-line Package
MOQ :
Negotiation
Delivery Time :
15 days
Shield :
brass
Gold plating on contact pins :
6U
Payment Terms :
T/T,D/P,D/A,L/C,Western Union,MoneyGram
Number of cores :
8
Price :
Please contact us to get the latest price.
Number of pins :
8
Supply Ability :
100K pcs/day

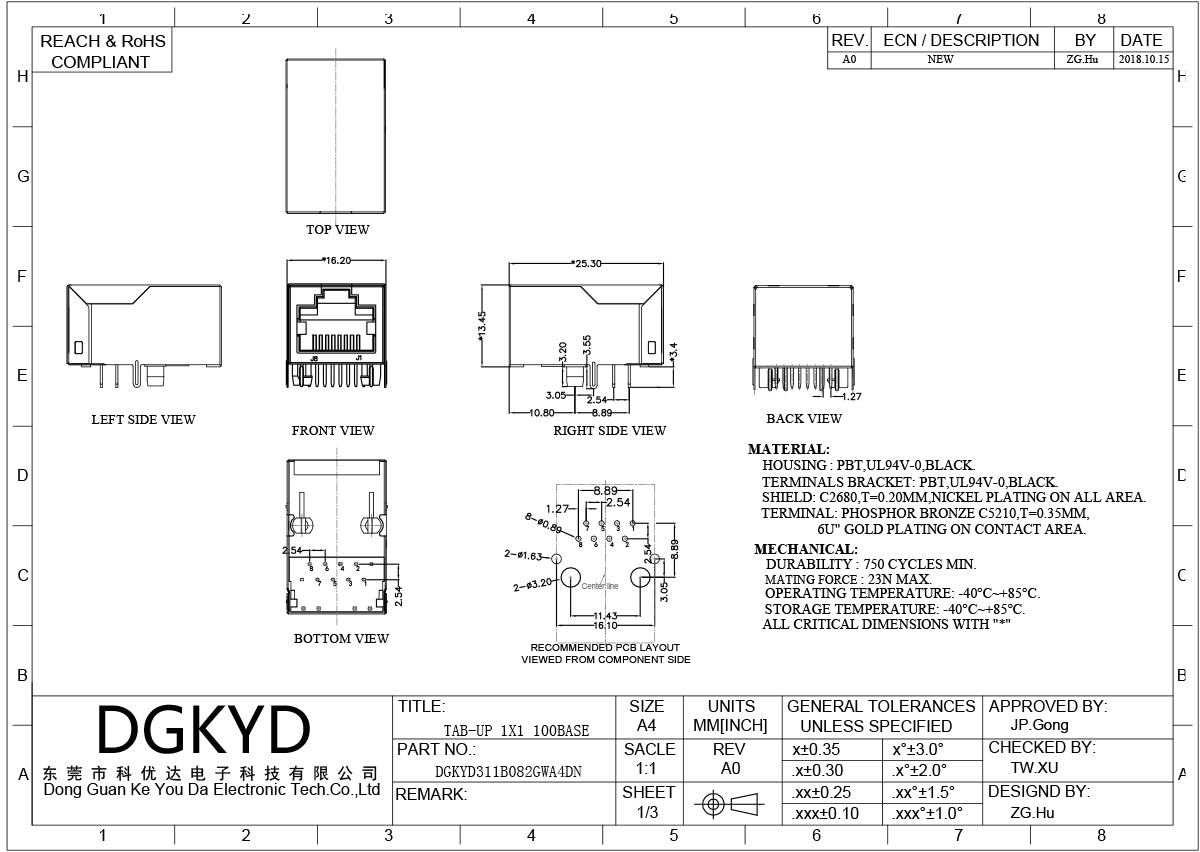

Dimension (mm) :
16.2* 25.3*13.45
Storage temperature :
- 40 ℃ ~ 85 ℃
Brand Name :
DGKYD
Product type :
RJ45
Packaging Details :
720 Tray in Carton
Operating temperature :
- 40 ℃ ~ 85 ℃
Place of Origin :
DongGuan of China
Shape :
rectangle
Description
RJ45 Ethernet Port Connector, Single Port 100Mbps Filtering Integrated Transformer DGKYD311B082GWA4DN
Product Overview

RJ45 Ethernet port connector with single port 100Mbps filtering integrated transformer. Part Number: DGKYD311B082GWA4DN

Download Product Documentation (PDF)

Technical Parameters
Part Number DGKYD311B082GWA4DN Brand DGKYD/OEM/ODM
Product Type Connector-Modular Connector Style Jack
Jack Type RJ45 Connector Type Modular Jack
Latch Style Standard Latch TAB-UP
Filter With Filter LED Option Without LED
LED Color No Panel Stops With Panel Stops
Shielded With metal shield Applies To Printed Circuit Board
Port Configuration Single Port Number of Positions 8
Jack Configuration 1X1 Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit Board Lock With/Without Board Lock
Housing Material PBT Polyester Housing Color Black
Housing Material Temperature Standard UL Flammability Rating UL 94V-0

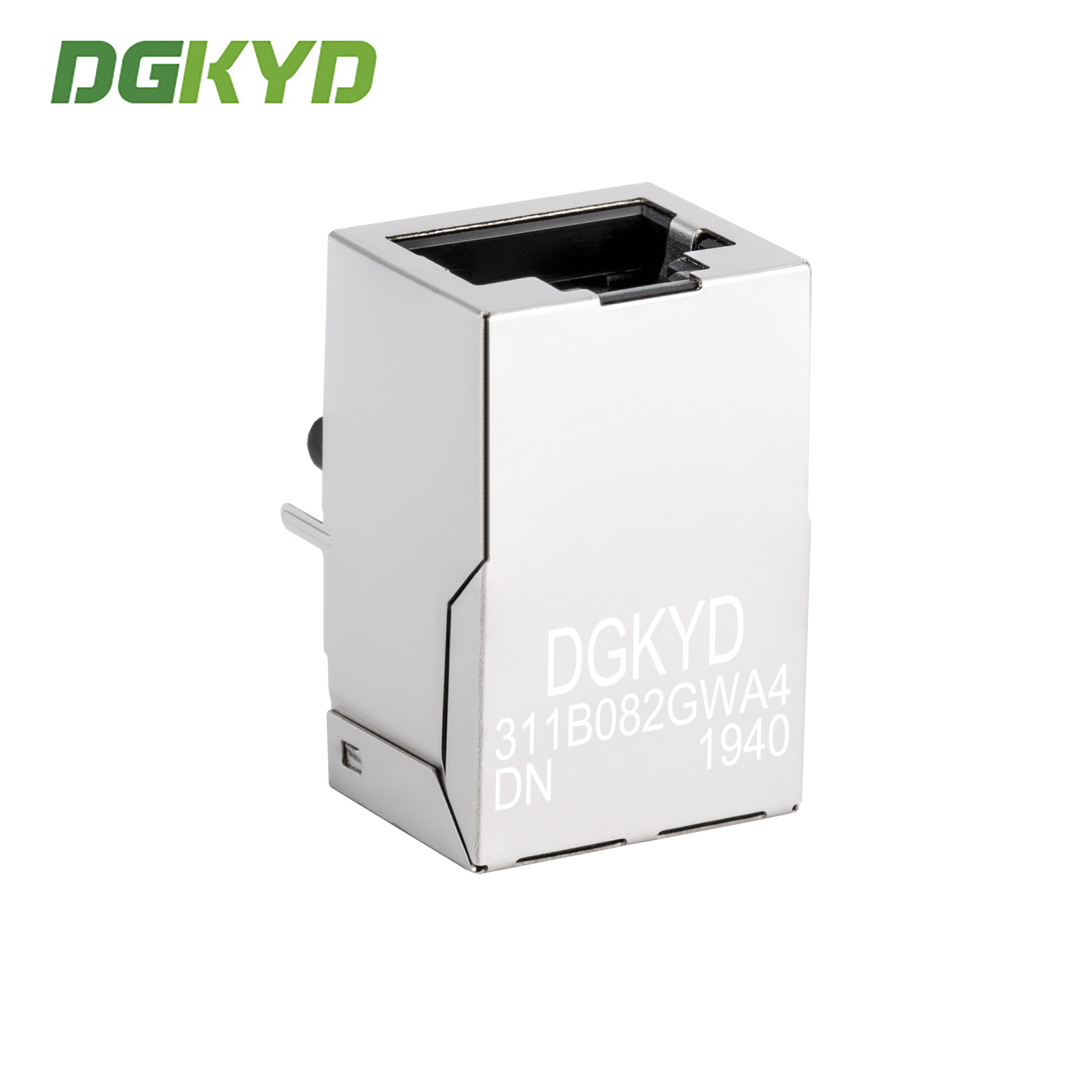

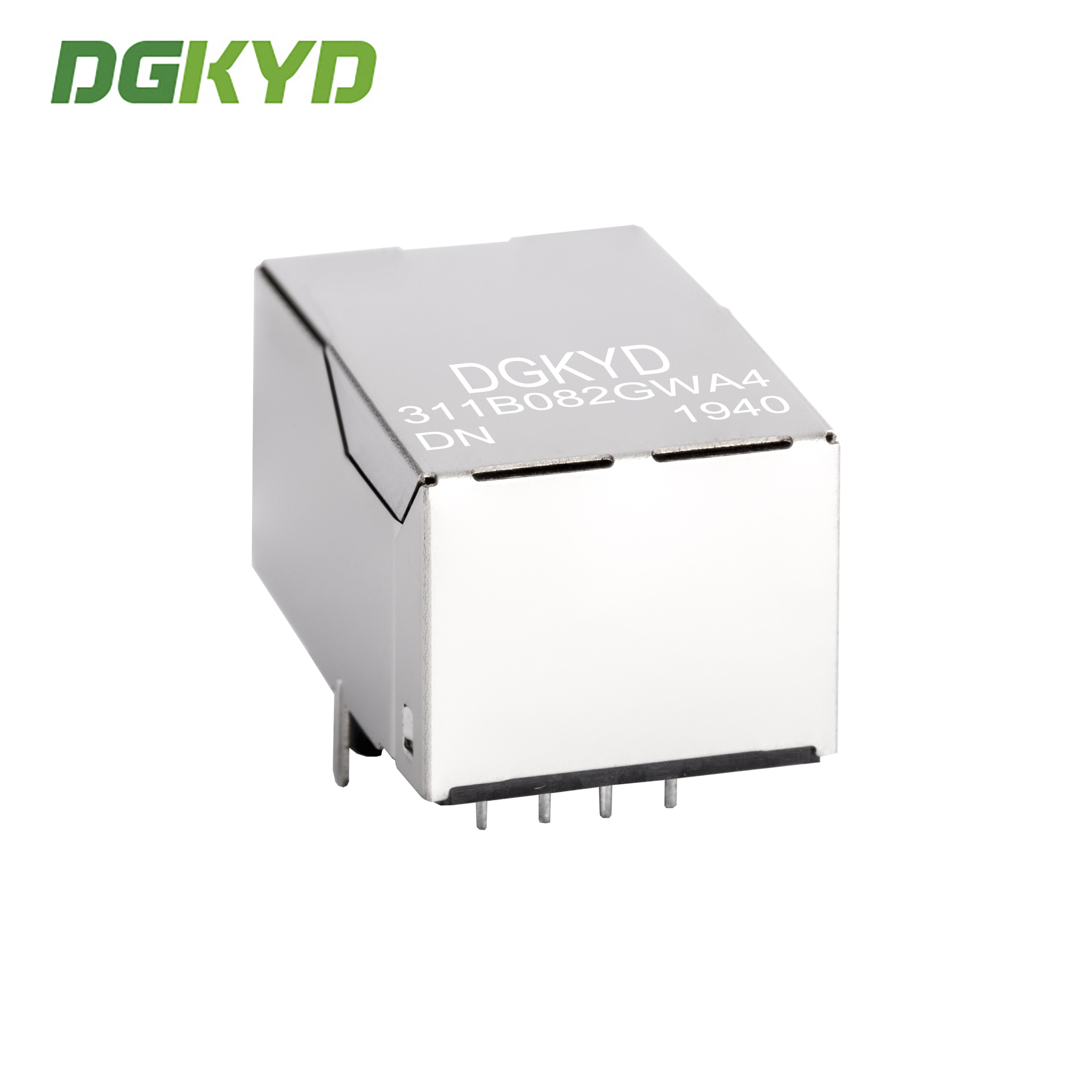

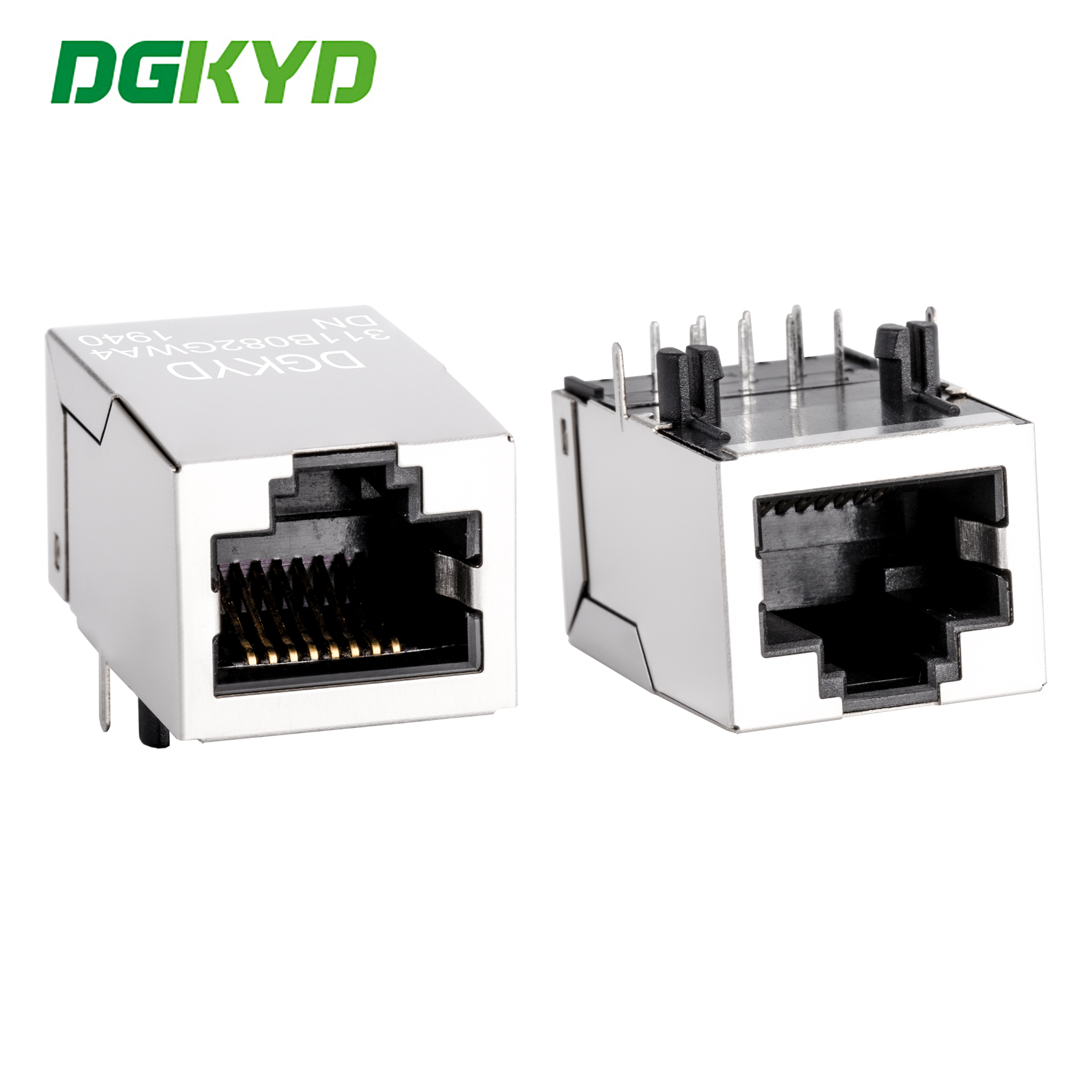

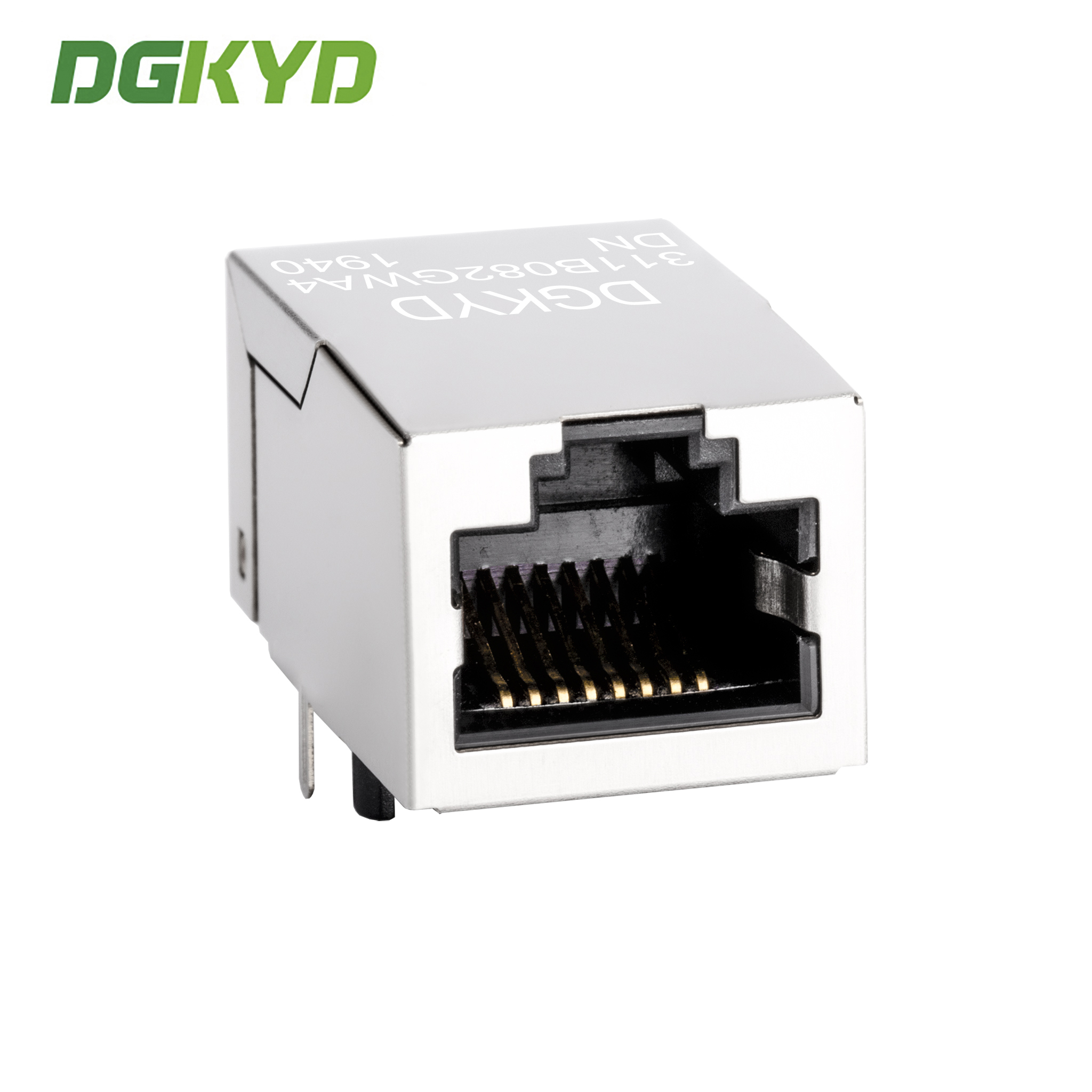

Product Images
100Mbps RJ45 Shielded Connector with 6U Gold Plating and Integrated Transformer 100Mbps RJ45 Shielded Connector with 6U Gold Plating and Integrated Transformer 100Mbps RJ45 Shielded Connector with 6U Gold Plating and Integrated Transformer 100Mbps RJ45 Shielded Connector with 6U Gold Plating and Integrated Transformer 100Mbps RJ45 Shielded Connector with 6U Gold Plating and Integrated Transformer 100Mbps RJ45 Shielded Connector with 6U Gold Plating and Integrated Transformer 100Mbps RJ45 Shielded Connector with 6U Gold Plating and Integrated Transformer 100Mbps RJ45 Shielded Connector with 6U Gold Plating and Integrated Transformer 100Mbps RJ45 Shielded Connector with 6U Gold Plating and Integrated Transformer 100Mbps RJ45 Shielded Connector with 6U Gold Plating and Integrated Transformer
Technical Specifications
  • Interface Type: RJ45 connector for 10/100/1000BASE-T Ethernet
  • Type: RJ45 with built-in magnetics
  • Working Frequency: High frequency with filtering and anti-interference characteristics
  • Working Temperature: -40°C to 85°C
  • Storage Temperature: -40°C to 85°C
  • Lead-Free Soldering: Wave soldering height up to 265°C
Manufacturing Capabilities

RJ45 full series of integrated circuit accessories, manufacturer direct supply

  • Business Mode: Manufacturer
  • Delivery Time: Approximately two weeks for standard orders
  • Customization Options:
    • LED indicator light (green, yellow, red, orange, blue, bi-color LED)
    • Shield with EMI fingers or without
    • Coil ratio of magnetic core
    • Magnetics circuit diversification options
    • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
    • Plastic housing material (PBT, PA46, PA9T, LCP)

Our products meet industry standards for electrical properties, mechanical dimensions, and environmental compliance. Your satisfaction is our primary service objective!

Frequently Asked Questions
Q: Are you a trading company or manufacturer?
A: We are a manufacturer. Welcome to visit our factory.
Q: What about your lead time?
A: For products in stock, delivery within 5-7 working days after payment. For customized and out-of-stock products, delivery time is confirmed based on order quantity.
Q: Can you provide samples? Are they free?
A: Yes. We typically provide 2-3 samples of standard products free for testing purposes.
Q: Can I put my own logo on it?
A: Yes. As a manufacturer with 11 years of OEM experience, we are fully capable of customizing products to your specifications.
