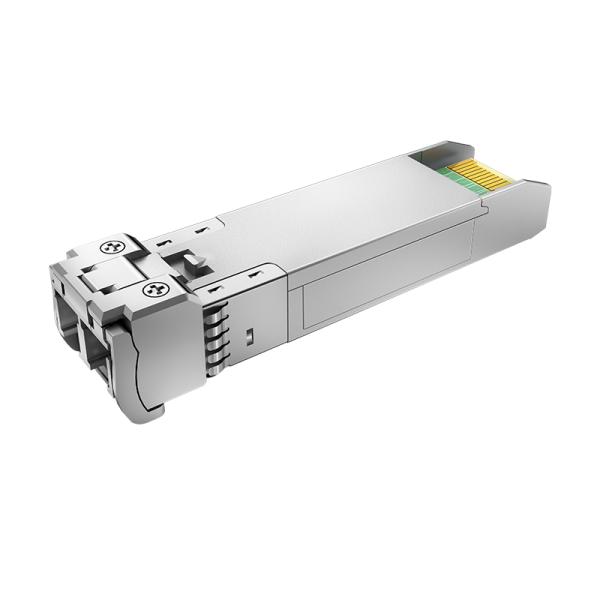

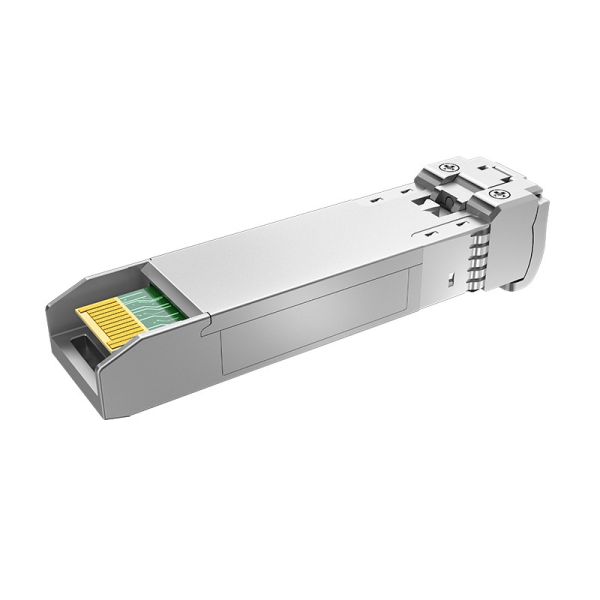

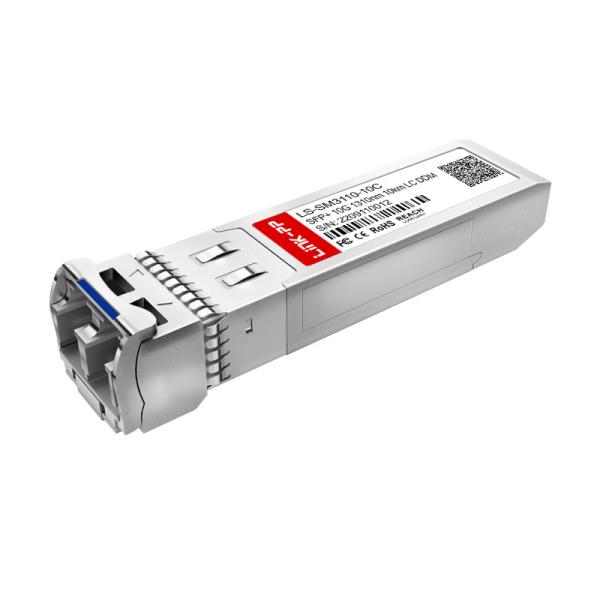

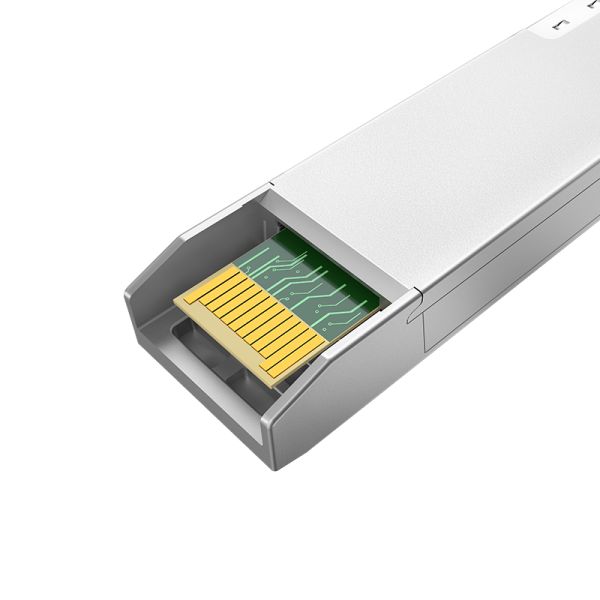

LS-SM3110-10C 10GBASE-LR SFP+ Module Single Mode Transceiver
LS-SM3110-10C 10GBASE-LR SFP+ Module Single Mode Transceiver
LS-SM3110-10C 10GBASE-LR SFP+ Module Single Mode Transceiver
LS-SM3110-10C 10GBASE-LR SFP+ Module Single Mode Transceiver
LS-SM3110-10C 10GBASE-LR SFP+ Module Single Mode Transceiver
LS-SM3110-10C 10GBASE-LR SFP+ Module Single Mode Transceiver
Specifications
Brand Name :
LINK-PP
Model Number :
LS-SM3110-10C
Certification :
UL,RoHS,REACH,ISO
Place of Origin :
GuangDong, China
MOQ :
1pc,10pcs
Price :
$8.3-$12
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
5KK/Month
Delivery Time :
2-3 Weeks
Packaging Details :
Reel
Part Number :
LS-SM3110-10C
Series :
10GBASE-LR
Transmitter Type :
DFB
Receiver Type :
PIN
Operating Case Temperature :
0 to +70°
Compatible Brands :
Cisco,H3C,Arista,D-Link
Distance :
≤10km
Form Factor :
SFP+
Type :
Single Mode
Data Rate :
10G
Connector :
Duplex LC
Wavelength :
1310nm
Description

Overview of 10G SFP+ Module:


The LINK-PP LS-SM3110-10C SFP+ 10GBASE-LR Optical Transceiver Module is a high-performance, cost-effective solution for long-distance data transmission. Supporting data rates of up to 10Gbps and transmission distances of up to 10km over Single-Mode Fiber (SMF), this transceiver is ideal for various applications such as data centers, enterprise networks, service provider networks, and telecommunications. It features a 1310nm Distributed Feedback (DFB) laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit.


Key Features:

  • Equivalent to H3C SFP-XG-LR-SM1310 and D-Link DEM-432XT-DD in function
  • Hot-pluggable SFP+ fiber optic transceiver module
  • Supports data rates up to 10.7Gbps
  • 1310nm DFB transmitter
  • Duplex LC optical connector
  • Link distance up to 10km over single-mode fiber (SMF)
  • Low power consumption (<1W)
  • Compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-LR, SFF-8431, and SFF-8432 standards
  • Commercial temperature ranges from 0 to 70°C
  • Digital Diagnostic Monitoring (DDM) for real-time parameter monitoring
  • RoHS compliant

LS-SM3110-10C SFP+ 10G Transceiver Specifications:

SMF Optical Transceiver Module
Part Status Active

Compatible Brands

Cisco, Juniper, FS

Distance

≤10km

Form Factor

SFP+
Type Single Mode

Data Rate

10G

Connector

Duplex LC

Wavelength

1310nm
Receiver Sensitivity <-14.4dBm

TX Power

-6.5 to -0.5dBm
RX Power -20 to -1dBm

Commercial Temperature Range

0 to 70°C

Protocols

IEEE 802.3ae, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA Compliant, CPRI, eCPRI

Details of SFP+ Transceiver Module:

LS-SM3110-10C 10GBASE-LR SFP+ Module Single Mode TransceiverLS-SM3110-10C 10GBASE-LR SFP+ Module Single Mode Transceiver
