80km 1×9 FC Transceiver Key Features

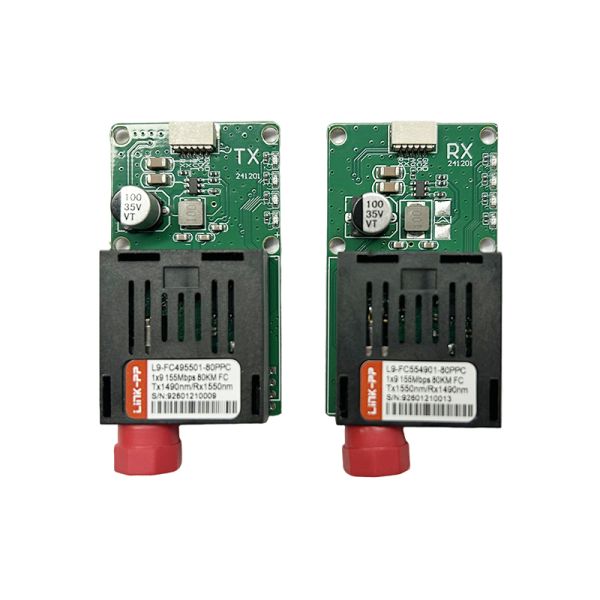

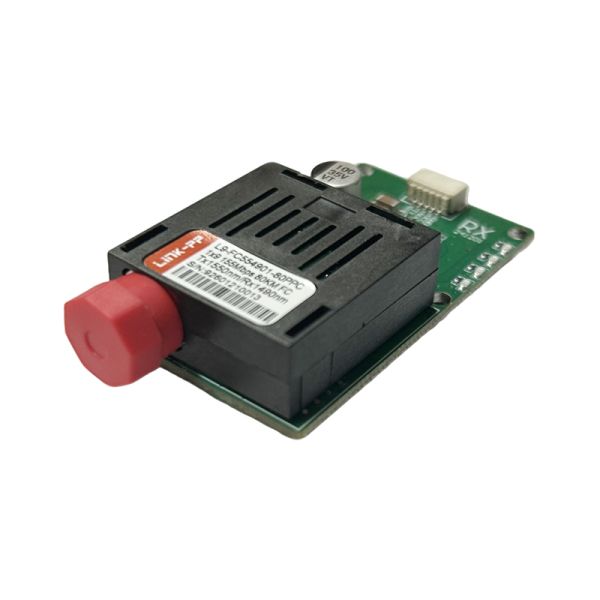

L9-FC554901-80PPC is a long-reach 1×9 form-factor optical transceiver designed for 155 Mbps single-fiber bi-directional optical transmission.
The module operates at Tx 1550 nm / Rx 1490 nm, supports transmission distances of up to 80 km, and uses an FC optical connector for reliable long-distance single-mode fiber links.

With a wide DC input voltage range of 5.5–26 V and a TTL electrical interface, this transceiver is optimized for air-to-ground UAV optical links, FPV systems, single-fiber video converters, and serial data transmission over fiber.

• 1×9 industry-standard optical transceiver module
• Data rate up to 155 Mbps
• Single-fiber Bi-Directional (BiDi) transmission
• Optical wavelengths: Tx 1550 nm / Rx 1490 nm
• Maximum transmission distance: 80 km over SMF
• Optical connector: FC
• Electrical interface: TTL
• Wide supply voltage: DC 5.5 V – 26 V
• Low latency and high EMI immunity
• Designed for UAV, FPV, and industrial optical links
• RoHS compliant

Technical Specifications of L9-FC554901-80PPC 1x9 optical transceiver

Applications of 1x9 FC fiber transceiver

• UAV Air-to-Ground Optical Communication
• FPV video transmission systems
• TTL optical transceiver modules for drones
• Single-fiber video fiber converters
• Serial data converters (UART / TTL / SBUS to fiber)
• Industrial telemetry and control systems
• Long-distance point-to-point fiber links

L9-FC554901-80PPC 1×9 155Mbps 80km Transceiver Module Compatibility Notes

• Designed for single-mode fiber (9/125 µm) only
• Ensure correct wavelength pairing on the remote end (Tx 1490 nm / Rx 1550 nm)
• Compatible with standard TTL logic levels
• FC connector type must match mating fiber patch cord

FAQs About L9-FC554901-80PPC 1×9 Single Fiber Transceiver

1. What is the L9-FC554901-80PPC used for?

It is used for long-distance 155 Mbps TTL-to-fiber optical transmission, especially in UAV air-to-ground links, FPV systems, and industrial serial communication.

2. Does this module support UAV power systems?

Yes. The wide DC 5.5–26 V input makes it suitable for UAV, vehicle, and ground station power supplies.

3. Is it compatible with single-fiber video converters?

Yes. It is commonly used in single-fiber video and serial data fiber converter systems.

4. What connector and fiber does it require?

It uses an FC optical connector and single-mode fiber (9/125 µm).
