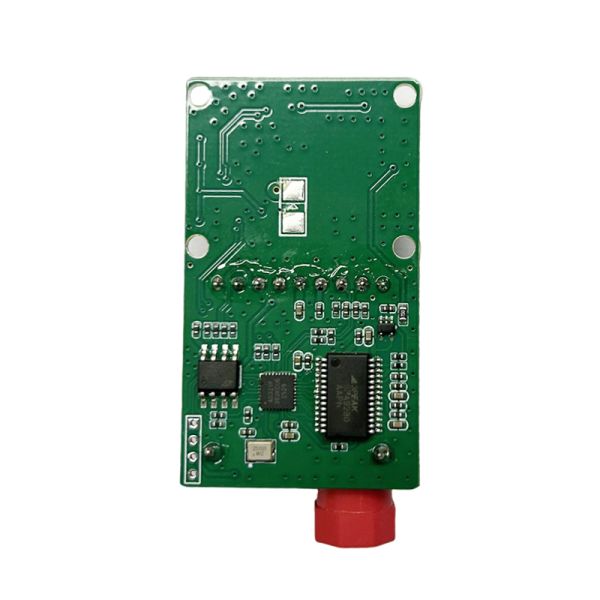

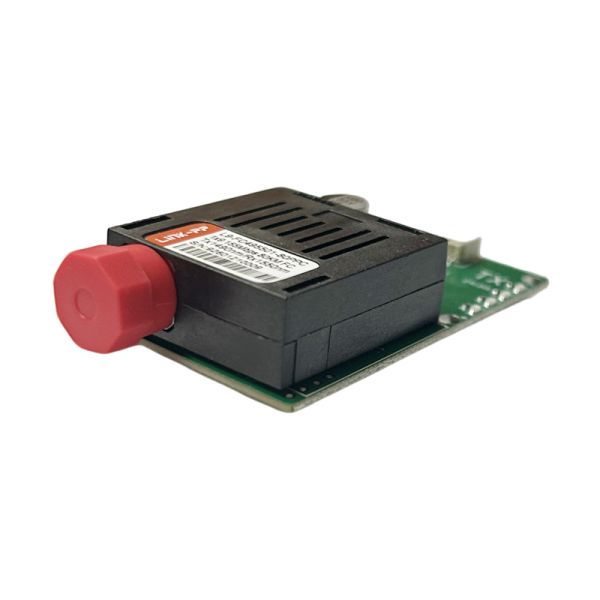

L9-FC495501-80PPC 1×9 Transceiver Module 155Mbps 80km FC Connector
L9-FC495501-80PPC 1×9 Transceiver Module 155Mbps 80km FC Connector
L9-FC495501-80PPC 1×9 Transceiver Module 155Mbps 80km FC Connector
L9-FC495501-80PPC 1×9 Transceiver Module 155Mbps 80km FC Connector
L9-FC495501-80PPC 1×9 Transceiver Module 155Mbps 80km FC Connector
L9-FC495501-80PPC 1×9 Transceiver Module 155Mbps 80km FC Connector
Specifications
Brand Name :
LINK-PP
Model Number :
L9-FC554901-80PPC
Certification :
RoHS, IEC 60825
Place of Origin :
Guangdong,China
MOQ :
50/500/1000/25K
Price :
12.98USD/PCS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5KK/Month
Delivery Time :
In Stock Ship Within 3 Days
Packaging Details :
T&R
Model :
L9-FC554901-80PPC
Fiber Type :
Single-Mode Fiber (9/125 µm)
Supply Voltage :
DC 5.5–26 V
Distance :
≤80km
Form Factor :
1x9
Data Rate :
100M/155M
Wavelength :
1490nm Tx / 1550nmRx
Description

Technical Specifications of 155Mbps 80km 1×9 Module

L9-FC495501-80PPC is the complementary BiDi (B-side) transceiver to L9-FC554901-80PPC, designed for single-fiber, long-reach 155 Mbps optical links up to 80 km.

This module operates at Tx 1490 nm / Rx 1550 nm and is typically deployed at the remote or ground-side node, forming a matched BiDi optical pair with the Tx1550nm / Rx1490nm (A-side) module.

Parameter Specification
Part Number L9-FC495501-80PPC
Form Factor 1×9 Optical Transceiver
Max Data Rate 155 Mbps
Fiber Type Single-Mode Fiber (SMF, 9/125 µm)
Max Distance 80 km
Optical Connector FC
Electrical Interface TTL
Supply Voltage DC 5.5 – 26 V

Typical Applications

  • UAV ground-side optical transceiver
  • Remote air-to-ground optical links
  • Single-fiber video return channel
  • Serial data backhaul over fiber
  • TTL / UART / SBUS to fiber remote converters
  • Industrial long-distance monitoring systems

⚠️ This module must be paired with a Tx1550nm / Rx1490nm BiDi transceiver on the opposite end of the fiber link.

Compliance & Reliability:

1. Compliance: RoHS

2. Laser Safety: IEC 60825

3. Operating Temperature:

  • 0 °C to +70 °C (Standard)
  • –40 °C to +85 °C (Industrial option)

80km Single Fiber BiDi Optical Transceiver for UAV Systems

The L9-FC495501-80PPC is designed for long-distance UAV air-to-ground optical communication, supporting single-fiber Bi-Directional (BiDi) transmission up to 80 km over single-mode fiber.

Operating at Tx 1490 nm / Rx 1550 nm, this 1×9 optical transceiver enables stable, low-latency data links for UAV telemetry, FPV video return channels, and serial control signals.


The wide DC 5.5–26 V input range and TTL electrical interface allow direct integration with UAV flight controllers, ground stations, and optical data link systems.
