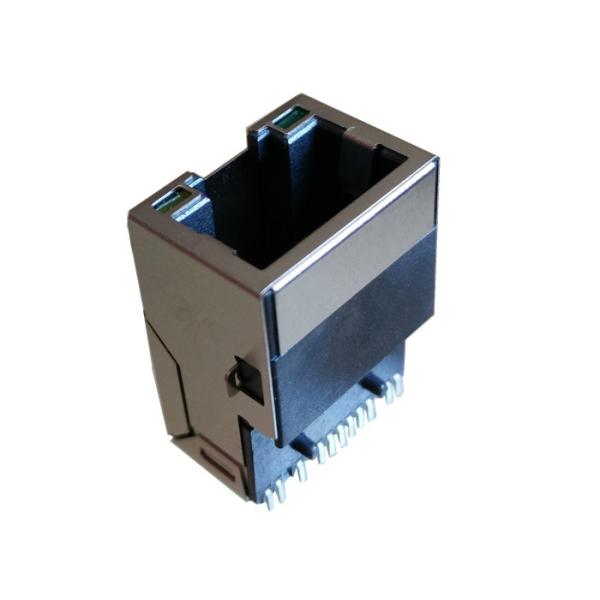

MIC24121-5308W-LF3 Integrated RJ45 Connector Surface Mount
MIC24121-5308W-LF3 Integrated RJ45 Connector Surface Mount
Specifications
Brand Name :
LINK-PP
Model Number :
MIC24121-5308W-LF3
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
GuangDong, China
MOQ :
200 PCS
Price :
$1.0
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
In Stock Ship Within 3 Days
Packaging Details :
60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Part Number :
MIC24121-5308W-LF3
Mass Production :
LPJ19911ADNL
Original Munafactuer :
LINK-PP
Application :
10/100BASE-T Ethernet
Termination :
Solder
Mounting Style :
SMT / Surface Mount
Port Configuration :
1×1 RJ45 Port
Isolation :
2250 VDC
Description

MIC24121-5308W-LF3 is a 10/100BASE-T SMT RJ45 connector with integrated magnetics, 2250V isolation, 350µH OCL, –40 to +85°C.

Key Features of MIC24121-5308W-LF3 SMT Magjack

  • SMT RJ45 Connector with integrated magnetics
  • Supports 10/100BASE-T Fast Ethernet
  • Single-port (1×1) RJ45 configuration
  • 1:1 turns ratio (±2%) for PHY compatibility
  • High open circuit inductance: 350 µH min.
  • High isolation voltage: 2250 VDC
  • Excellent return loss, crosstalk, and common-mode rejection
  • Surface-mount, reflow soldering compatible
  • Wide operating temperature: –40 °C to +85 °C

Electrical Specifications (@ 25 °C unless otherwise noted)

Parameter Specification
Application Designed for 10/100BASE-T Ethernet
Inductance (OCL) 350 µH min. @ 100 kHz, 100 mV, 8 mA DC bias (J1–J2; J3–J6, Lp)
Dielectric Withstand Voltage 2250 VDC, 1 minute (between P1–J1, P1 tied to P4)
Turns Ratio / Polarity (RX) (P1–P3) : (J1–J2) = 1 : 1 ±2%
Turns Ratio / Polarity (TX) (P4–P6) : (J3–J6) = 1 : 1 ±2%
Insertion Loss ≤ –1.0 dB (1 MHz – 100 MHz)
Return Loss ≥ –18 dB (1 – 30 MHz)
≥ –16 dB (30 – 45 MHz)
≥ –14 dB (45 – 60 MHz)
≥ –12 dB (60 – 80 MHz)
Crosstalk ≤ –35 dB (1 MHz – 100 MHz)
Common Mode Rejection (CMR) ≤ –35 dB (1 MHz – 100 MHz)
Operating Temperature Range –40 °C to +85 °C

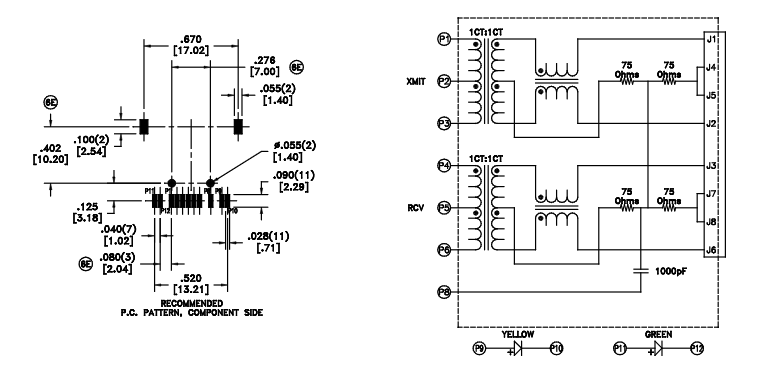

Fast Ethernet SMT RJ45 MIC24121-5308W-LF3 Drawing:

MIC24121-5308W-LF3 Integrated RJ45 Connector Surface Mount

Compliance & Reliability of 10/100BASE-T SMT RJ45

  • Designed in accordance with IEEE 802.3 Fast Ethernet requirements
  • Suitable for lead-free SMT assembly processes
  • Industrial-grade temperature performance
  • Proven solution used in Ethernet magnetic modules and magjack designs

Design Notes for SMT RJ45 Connector Applications

MIC24121-5308W-LF3 integrates Ethernet magnetics directly inside the RJ45 connector housing, allowing designers to eliminate discrete transformer components.


This improves signal integrity, reduces EMI, and simplifies PCB routing in high-density layouts.
The high isolation voltage and strong common-mode rejection make it suitable for industrial Ethernet environments.

Typical Applications

  1. SMT RJ45 connectors for Ethernet ports
  2. Fast Ethernet LAN interfaces (10/100 Mbps)
  3. Embedded systems and industrial controllers
  4. Network switches, routers, gateways
  5. IoT devices and communication equipment
  6. Consumer and industrial Ethernet products
