The LPJE601XDNL is a single-port (1x1) vertical RJ45 connector with 8 positions and 8 contacts (8P8C). It is designed for through-hole PCB mounting, ensuring strong mechanical retention and reliable soldering performance in industrial and commercial applications.

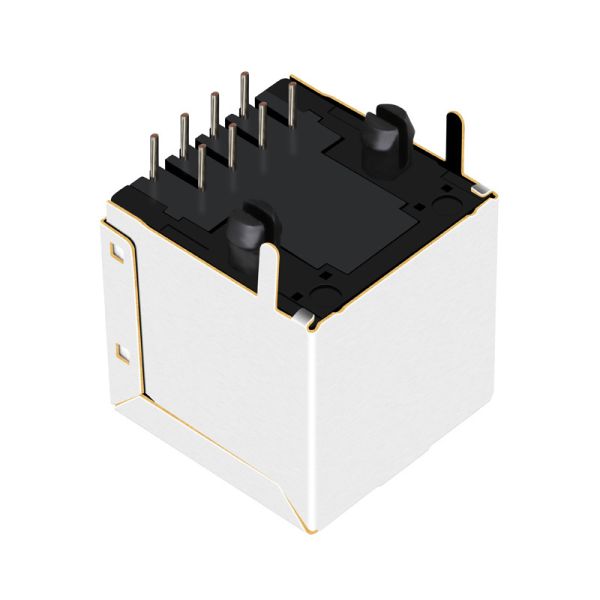

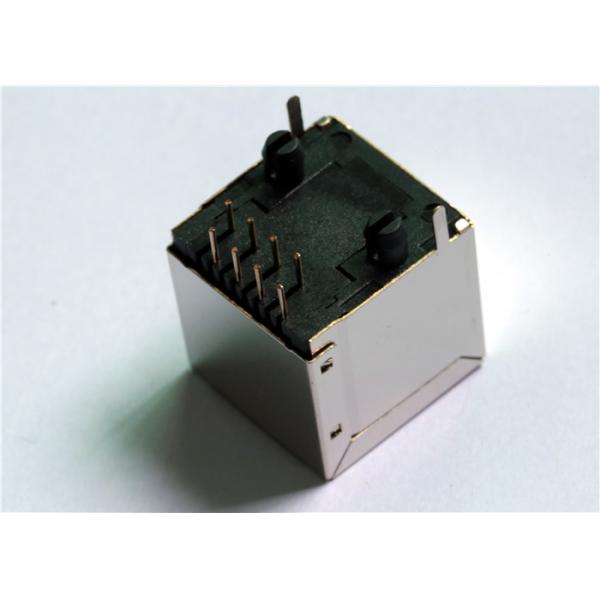

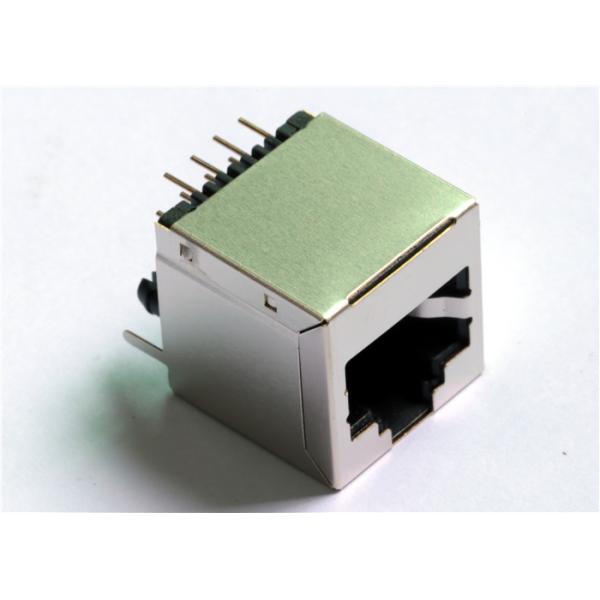

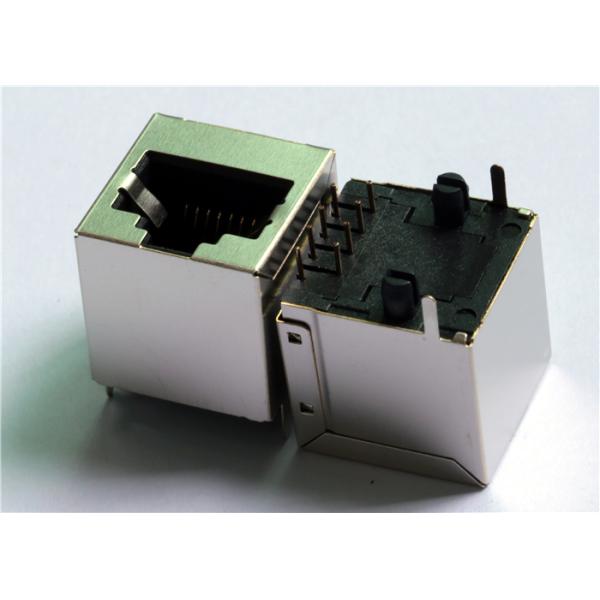

16.4mm Height CAT 5e Vertical RJ45 Jack Overview

The LPJE601XDNL 1x1 Vertical RJ45 Connector is a high-performance 8P8C modular jack designed for 10/100Base-T Ethernet networking applications. Featuring a top entry (vertical) orientation, Tab Up latch, and metal shielding without EMI tabs, this connector is ideal for compact PCB layouts requiring stable signal transmission and robust mechanical durability.

Engineered without integrated magnetics or LEDs, the LPJE601XDNL is a cost-effective and flexible solution for applications where external magnetics are used or visual indicators are not required.

Key Product Attributes

• Number of Ports: 1x1
• Connector Type: RJ45 Modular Jack
• Orientation: Vertical (Top Entry)
• Latch Type: Tab Up
• Positions/Contacts: 8P8C
• Mounting Type: Through Hole (THT)
• Performance Category: Cat 5e
• Shielding: Yes (Metal Shield, No EMI Tabs)
• LED Option: Without LED

LPJE601XDNL Electrical, Mechanical,Environmental Specifications

LPJE601XDNL RJ45 Without Magnetics Drawing and Details

Key Features of LPJE601XDNL Top Entry Modular jacks

• ✔ Flexible magnetics design (external transformer support)
• ✔ Space-efficient vertical layout
• ✔ Reliable Cat 5e performance for 10/100Base-T
• ✔ Durable materials for long lifecycle
• ✔ Simplified PCB grounding (no EMI tabs)

1. Space-Saving Vertical Design

The top entry orientation enables efficient vertical PCB stacking, making it ideal for compact networking equipment.

2. Cost-Effective Non-Magnetic Design

Without integrated magnetics, the LPJE601XDNL allows engineers to:

• Use external magnetics for flexible circuit design
• Reduce overall connector cost

3. Reliable Metal Shielding

The connector includes a tin-plated brass shield to:

• Minimize EMI interference
• Enhance signal integrity
• (Note: No EMI grounding tabs for simplified PCB layout)

​

4. Industrial-Grade Durability

• 750 mating cycles minimum
• High-temperature wave solder compatibility
• Robust LCP housing (UL94V-0 rated)

FAQ About LPJE601XDNL RJ45 Connector Without Magnetics

The LPJE601XDNL 1x1 Vertical RJ45 Connector is an excellent choice for engineers seeking a compact, cost-effective, and reliable Ethernet interface without integrated magnetics or LEDs.
