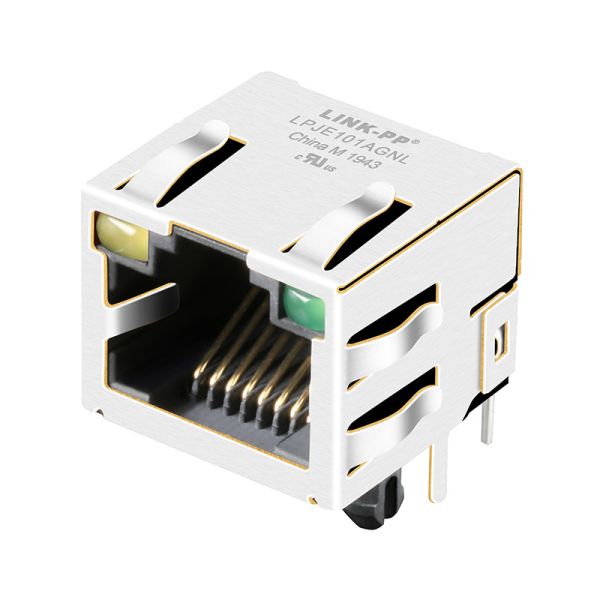

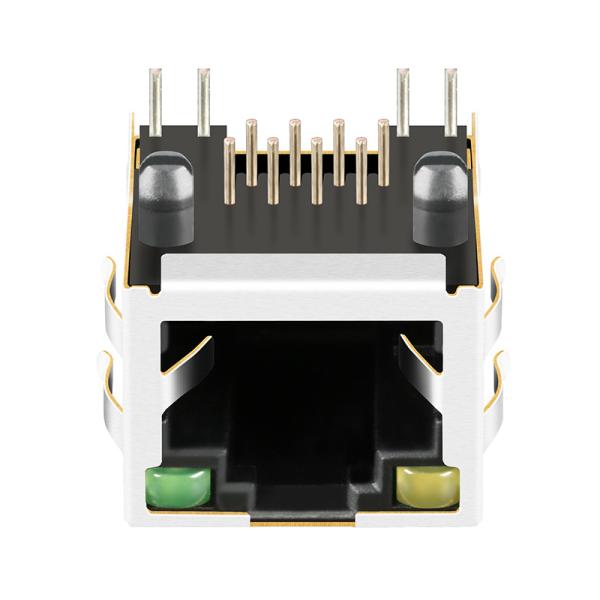

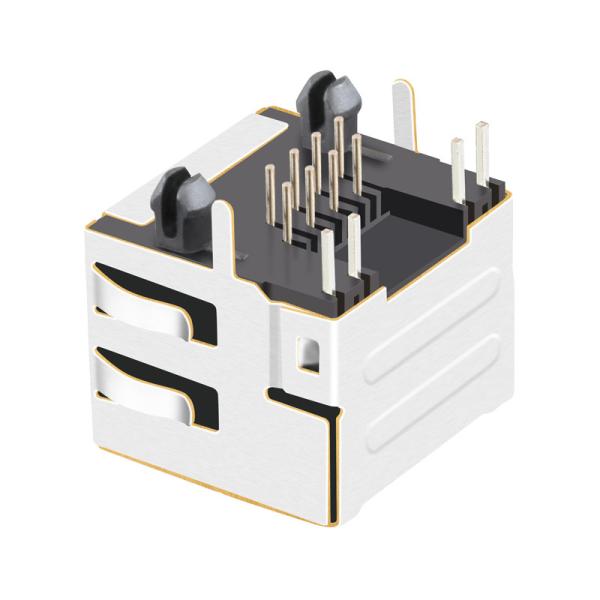

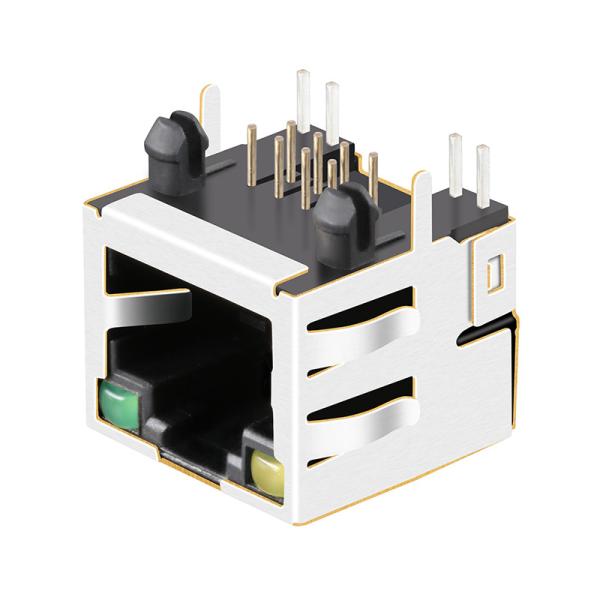

LPJE101-0AG-MYNL Shielded RJ45 Modular Jack with Yellow Green LEDs

Specifications

Brand Name :

LINK-PP

Model Number :

LPJE101-0AG-MYNL

Certification :

UL,RoHS,REACH,ISO

Place of Origin :

GuangDong, China

MOQ :

100pcs/3000pcs

Price :

$0.1-$0.5

Payment Terms :

L/C, D/A, D/P, T/T, Western Union

Supply Ability :

5KK/Month

Delivery Time :

1-2 Weeks

Packaging Details :

Box & Tray

Connector Type :

RJ45 Shielded Modular Jack

Profile :

Standard

Tab Direction :

Ratings :

Cat5

UL Flammability Rating :

UL 94V-0

Durability :

750 Mating cycles

Compatible Brands :

Belfuse

Number of Ports :

1X1

Latch :

Performance Category :

CAT 5

Number of position/contacts :

8P8C

Mounting Type :

THT

LED Option :

With

EMl Tabs :

With

Metal-Shield :

Shielded

Orientation :

Right Angle(Side Entry)

Description

Features of LPJEQ101-OAG-MYNL RJ45 Jack:

The LINK-PP LPJE101-0AG-MYNL is a shielded RJ45 modular jack suitable for various Ethernet applications. Its shielding design reduces EMI ensuring stable signal transmission. The yellow-green LED indicators provide clear visual status indications, making it easier to monitor network connections. This robust and reliable jack is designed for both industrial and commercial environments, ensuring long-term durability and performance.

Detailed Specifications of RJ45 Without Magenetics:

THT 8P8C Modular Jack
Part Number	LPJE101-0AG-MYNL
Compatible Brands	Pulse, Belfuse, TE
Number of Ports	1X1
Latch	Up
Performance Category	Cat 5
Number of position/contacts	8P8C
Mounting Type	THT
LED Option	With
EMl Tabs	With
Metal-Shield	Shielded
Orientation	Right Angle (Side Entry)

LPJE101-0AG-MYNL Drawing:

LPJE101-0AG-MYNL.pdf

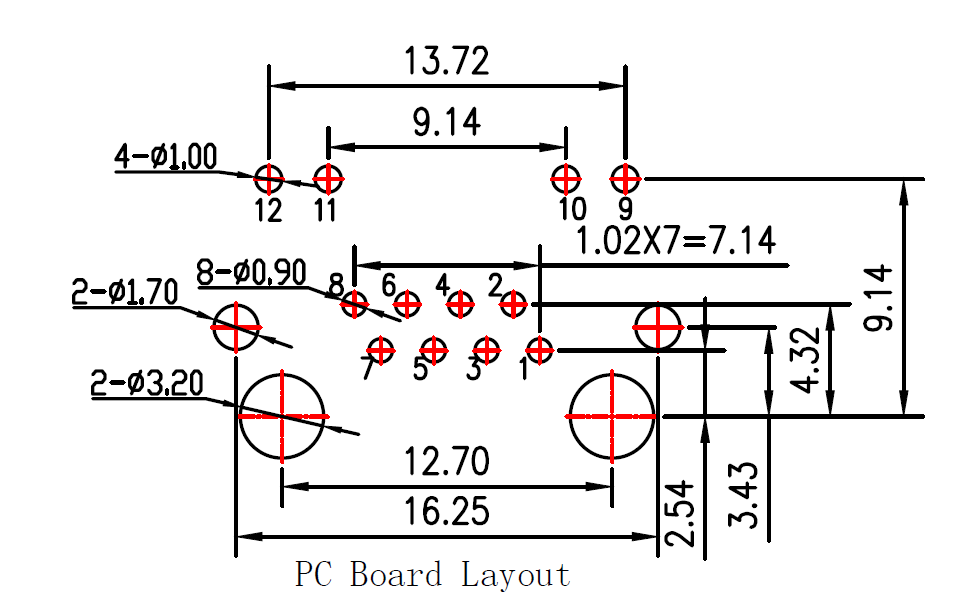

LPJE101-0AG-MYNL PCB Layout:

LPJE101-0AG-MYNL Shielded RJ45 Modular Jack with Yellow Green LEDs

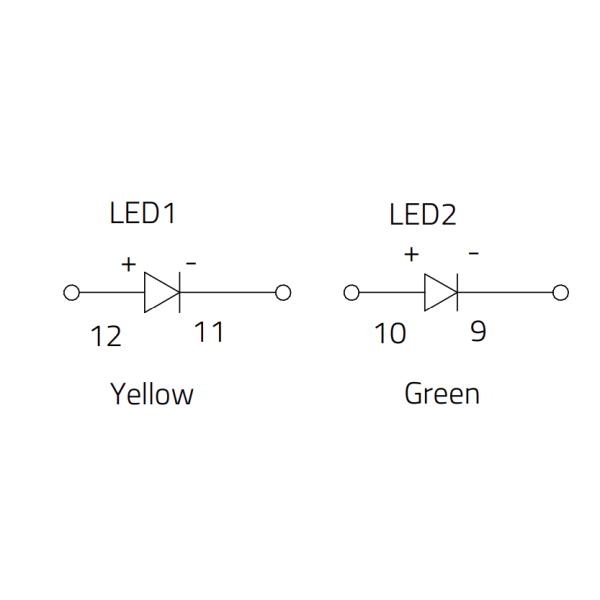

LPJE101-0AG-MYNL LED Design:

LPJE101-0AG-MYNL Shielded RJ45 Modular Jack with Yellow Green LEDs

Materials of Modular RJ45 Jack:

Insert Material: PBT UL94V-0
Contact Material: ∅0.46mm C51000 (QSn4-0.3) Phosphor Bronze with Gold Plating over Nickel
Shield Material: 0.20mm H65Y Brass Nickel Plated
Insulator Material: PBT
Insulator Flammability Rating: UL94 V-0
Insulator Color: Black
Contact Plating: Selective Gold
Contact Type: Stamped
Shielding Material: Bronze
Shielding Plating: Nickel (Ni)
PCB Contact Termination Area Plating Material: Tin
Contact Underplating Material: Nickel
Contact Base Material: Phosphor Bronze
Contact Mating Area Plating Material: Gold
Contact Mating Area Plating Material Thickness: 1.27 µm (50 µin)
