Product Overview:

The LPJE8802-3C-M7NLR is a compact, shielded RJ45 8P8C SMD modular jack designed for high-speed Ethernet and communication devices.
It offers superior signal integrity, stable contact performance, and compliance with UL safety standards.
With a latch-down design and SMD reflow compatibility, it is ideal for automated PCB assembly in compact networking equipment.

Electrical Specifications:

Mechanical Specifications:

Environmental Characteristics:

IR Reflow Soldering Profile:

Typical Applications:

• Ethernet Switches and Routers
• Network Interface Cards (NICs)
• Industrial Automation Controllers
• IP Cameras and Smart Terminals
• Embedded Communication Modules

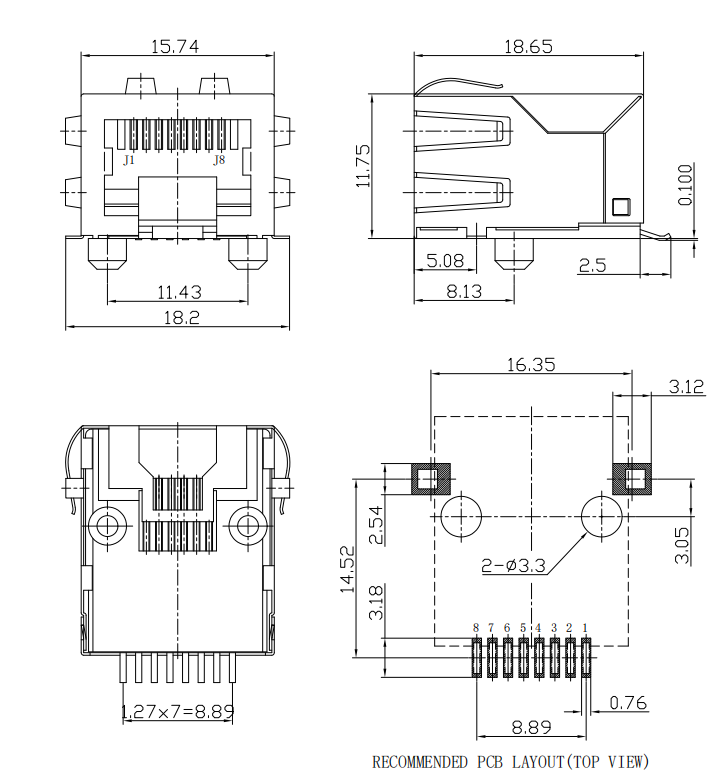

LPJE8802-3C-M7NLR 8P8C RJ45 Modjack Drawing:

Packaging Information:

1. Packaging Type: Tape & Reel
2. Quantity per Reel: 110 pcs
3. Arrangement: Products arranged in sequence with 11 empty positions at both ends
4. Labeling: Includes plug, label, and protective bag
5. Orientation: As per drawing (Latch Down)
