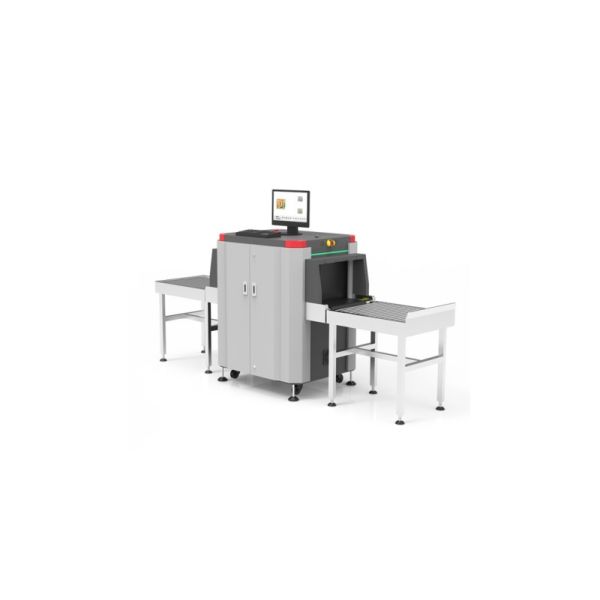

Robust Baggage Parcel Security Inspection Device X Ray Inspection System
Robust Baggage Parcel Security Inspection Device X Ray Inspection System
Robust Baggage Parcel Security Inspection Device X Ray Inspection System
Robust Baggage Parcel Security Inspection Device X Ray Inspection System
Specifications
Place of Origin :
China
Brand Name :
Sikerui
Certification :
CE / RoHS / FCC
MOQ :
1PCS
Packaging Details :
Wooden Box
Delivery Time :
5-7days
Payment Terms :
T/T,L/C
Supply Ability :
5000 Units Per Month
Model Number :
SST-SE5335C
Price :
$8000-15000
Tunnel Size :
556(W) x 360(H)mm
Dimensions :
1359(L) x 877(W) x 1230(H)mm
Convery Max Load :
150 kg
Spatial Resolution :
1.0 mm Horizontal, 1.0 mm Vertical
Steel Penetration :
36 mm steel Typical
Beam Direction :
Diagonally Upward
Description
X-ray Baggage Scanner 7-Colors Detector

Model: SST-SE5335C

This X-ray Baggage Scanner offers advanced security screening with its 7-color imaging system, providing clear and detailed visuals for efficient threat detection. Designed for high-throughput environments, it ensures rapid and reliable inspection of baggage and parcels.

Key Benefits:
  • Enhanced Threat Detection: 7-color imaging for improved material discrimination.
  • High Throughput: Fast belt speed and efficient scanning process.
  • Durable and Reliable: Robust construction for continuous operation.
  • Easy to Use: Intuitive interface for operators of all skill levels.
  • Compact Design: Optimized footprint for space-constrained environments.

Target Industries and Applications: Airports, customs facilities, courthouses, event venues, and any location requiring enhanced security screening.

Technical Specifications
General Specifications
Parameter Value
Tunnel Size 556(W) x 360(H)mm
Dimensions 1359(L) x 877(W) x 1230(H)mm
Conveyor Max Load 150 kg
Belt Speed 0.23m/s Bidirectional
X-Ray Generator
Parameter Value
Voltage 140kV
Wire Detectability 40 AWG
Spatial Resolution 1.0 mm Horizontal, 1.0 mm Vertical
Steel Penetration 36 mm steel Typical
Tube Current 0.7 mA
Cooling Sealed Oil Bath with Forced Air
Duty Cycle 100%, No Warm-Up Procedure Required
Beam Direction Diagonally Upward
Detector L-Shaped Array
Dual-energy Yes
Working Environment
Parameter Value
Operating Temperature 0°C- 40°C 32ºF – 104°F
Storage Temperature -20°C- 60°C -4ºF- 140ºF
Humidity Up to 95% Non-Condensing
Power Requirements 220VAC±10%, 50/60Hz, 10A Max
