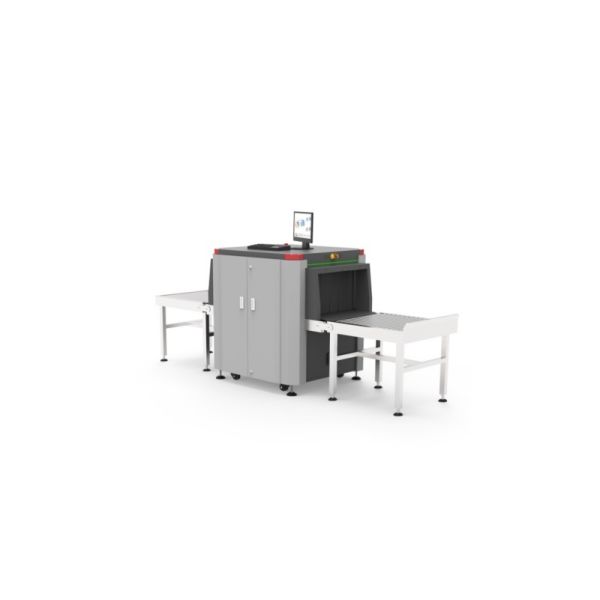

140kV Security Inspection Device X Ray Baggage Scanner Detector 7 Color
140kV Security Inspection Device X Ray Baggage Scanner Detector 7 Color
Specifications
Place of Origin :
China
Brand Name :
Sikerui
Certification :
CE / RoHS / FCC
MOQ :
1PCS
Packaging Details :
Wooden Box
Delivery Time :
5-7days
Payment Terms :
T/T,L/C
Supply Ability :
5000 Units Per Month
Model Number :
SST-SE6550C
Price :
$8000-15000
Tunnel Size :
654(W) x 508(H)mm
Dimensions :
1691(L) x 985(W) x 1275(H)mm
Convery Max Load :
165kg
Belt Speed :
0.23m/s Bidirectional
Voltage :
140kV
Wire Detectability :
40 AWG
Spatial Resolution :
1.0 mm Horizontal, 1.0 mm Vertical
Steel Penetration :
36 mm steel Typical
Tube Current :
0.7 mA
Cooling :
Sealed Oil Bath with Forced Air
Duty Cycle :
100%,No Warm-Up Procedure Required
Beam Direction :
Diagonally Upward
Detector :
L-Shaped Array
Dual-energy :
Yes
Operating Temperature :
0°C- 40°C 32ºF – 104°F
Storage Temperature :
-20°C- 60°C -4ºF- 140ºF
Humidity :
Up to 95% Non-Condensing
Power Requirements :
220VAC±10%, 50/60Hz, 10A Max
Description

X-ray Baggage Scanner 7-Colors Detector

Advanced X-ray baggage scanner designed for high-throughput security screening. Offers 7-color imaging for enhanced material discrimination and threat detection.

Key Benefits:

  • Enhanced Threat Detection with 7-Color Imaging
  • High Throughput Scanning
  • Reliable and Durable Design
  • Easy to Use Interface
  • Low Maintenance Requirements

Target Industries: Airports, Customs, Transportation Hubs, Critical Infrastructure, Event Security

Applications: Baggage Screening, Parcel Inspection, Security Checkpoints

Technical Specifications

Parameter Value
Tunnel Size 654(W) x 508(H)mm
Dimensions 1691(L) x 985(W) x 1275(H)mm
Convery Max Load 165kg
Belt Speed 0.23m/s Bidirectional
Voltage 140kV
Wire Detectability 40 AWG
Spatial Resolution 1.0 mm Horizontal, 1.0 mm Vertical
Steel Penetration 36 mm steel Typical
Tube Current 0.7 mA
Cooling Sealed Oil Bath with Forced Air
Duty Cycle 100%,No Warm-Up Procedure Required
Beam Direction Diagonally Upward
Detector L-Shaped Array
Dual-energy Yes
Operating Temperature 0°C- 40°C 32ºF – 104°F
Storage Temperature -20°C- 60°C -4ºF- 140ºF
Humidity Up to 95% Non-Condensing
Power Requirements 220VAC±10%, 50/60Hz, 10A Max
