150kg Compact Security Inspection Device Baggage X Ray Machine Odm
150kg Compact Security Inspection Device Baggage X Ray Machine Odm
Specifications
Place of Origin :
China
Brand Name :
Sikerui
Certification :
CE / RoHS / FCC
MOQ :
1PCS
Packaging Details :
Wooden Box
Delivery Time :
5-7days
Payment Terms :
T/T,L/C
Supply Ability :
5000 Units Per Month
Model Number :
SST-SE6040C
Price :
$8000-15000
Tunnel Size :
556(W) x 360(H)mm
Dimensions :
1359(L) x 877(W) x 1230(H)mm
Convery Max Load :
150 kg
Belt Speed :
0.23m/s Bidirectional
Spatial Resolution: :
1.0 mm Horizontal, 1.0 mm Vertical
Steel Penetration: :
36 mm steel Typical
Description

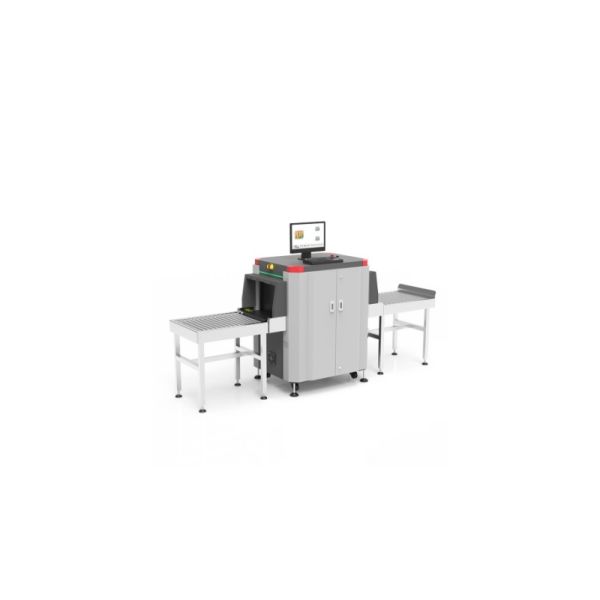

X-ray Baggage Scanner 7-Colors Detector

Model: SST-SE6040C

The SST-SE6040C is a state-of-the-art X-ray baggage scanner designed for efficient and reliable security screening. This 7-color detector provides enhanced image clarity, allowing operators to quickly identify potential threats.

Key Benefits:

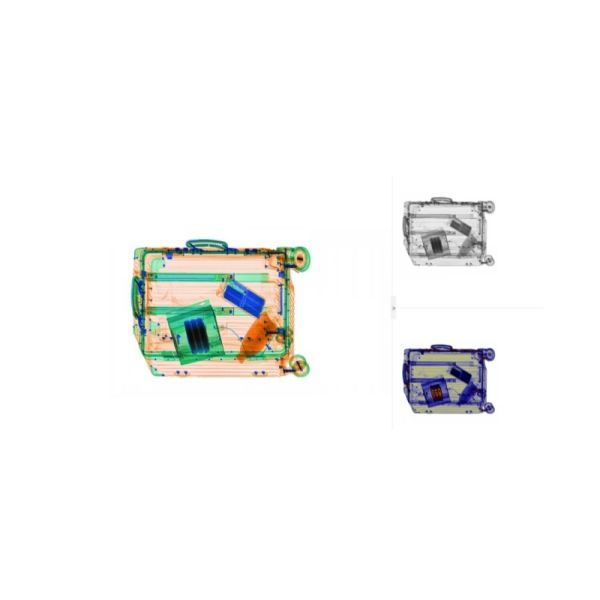

  • Enhanced threat detection with 7-color imaging
  • High throughput for efficient screening
  • User-friendly interface for easy operation
  • Compact design for space-saving installation
  • Reliable performance for continuous operation

Target Industries and Applications: Airports, customs facilities, courthouses, schools, and other high-security environments.

Product Attributes

FOB Unit: Set
FOB Price: 0

Technical Specifications

General Specifications

Attribute Value
Tunnel Size 624(W) x 429(H)mm
Dimensions 1499(L) x 947(W) x 1340(H)mm
Convery Max Load 165kg
Belt Speed 0.23m/s Bidirectional

X-RAY GENERATOR

Attribute Value
Voltage 140kV
Wire Detectability 40 AWG
Spatial Resolution 1.0 mm Horizontal, 1.0 mm Vertical
Steel Penetration 36 mm steel Typical
Tube Current 0.7 mA
Cooling Sealed Oil Bath with Forced Air
Duty Cycle 100%,No Warm-Up Procedure Required
Beam Direction Diagonally Upward
Detector L-Shaped Array
Dual-energy Yes

WORKING ENVIRONMENT

Attribute Value
Operating Temperature 0°C- 40°C 32ºF – 104°F
Storage Temperature -20°C- 60°C -4ºF- 140ºF
Humidity Up to 95% Non-Condensing
Power Requirements 220VAC±10%, 50/60Hz, 10A Max
