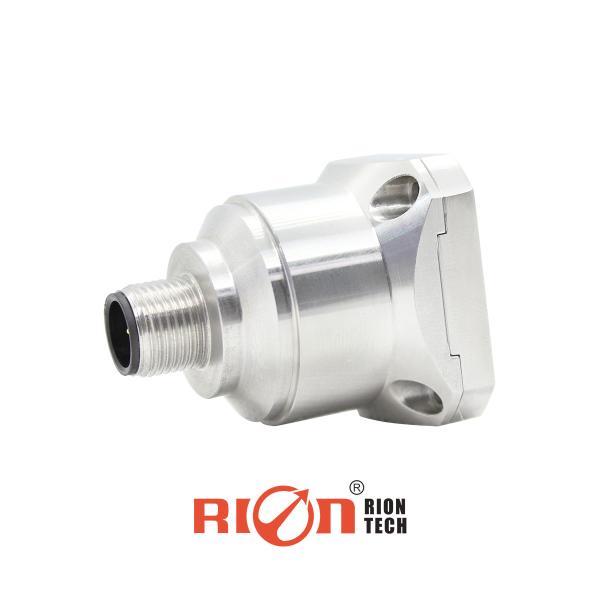

AKF398 CE MEMS Based Vibration Sensor 20mA Current Vibration measurement
AKF398 CE MEMS Based Vibration Sensor 20mA Current Vibration measurement
AKF398 CE MEMS Based Vibration Sensor 20mA Current Vibration measurement
AKF398 CE MEMS Based Vibration Sensor 20mA Current Vibration measurement
AKF398 CE MEMS Based Vibration Sensor 20mA Current Vibration measurement
AKF398 CE MEMS Based Vibration Sensor 20mA Current Vibration measurement
Specifications
store temperature :
-55°C ~ +100°C
Theory :
MEMS
power supply :
9-36V
working temperatur :
-40°C ~ +85°C
anti-impact :
2000G
Measuring Range :
max +/-40G
Certification :
CE, ISO
MOQ :
1
Payment Terms :
T/T,Paypal
Supply Ability :
5000/month
Delivery Time :
7 days for sample
Model Number :
AKF398
Place of Origin :
Guangdong, China
Brand Name :
RION
Packaging Details :
cartons
Price :
$235.00/Pieces
Description

AKF398 CE MEMS Based Accelerometer Sensor 20mA Current Vibration measurement

PRODUCT INTRODUCTION

The AKF398 triaxial VIBRATION SENSOR is a voltage output type VIBRATION SENSOR independently developed and produced, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, AKF398 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

PRODUCT FEATURES
  • three axis (X,Y,Z)
  • output voltage: 4-20mA
  • power supply:9-36V
  • anti-impact:2000G
  • working temperature: -40°C ~ +85°C
  • store temperature: -40°C ~ +85°C
  • size: L34.3×W34.3×H38.5mm
  • excellent bias stability
  • Good environmental performance (impact, vibration and temperature)
APPLICATION
  • Crash record, fatigue monitoring and prediction
  • Wind power generation
  • Traffic system monitoring, roadbed analysis and high-speed railway fault detection
  • Large machinery, engine
  • Low frequency vibration and automatic monitoring
  • Medical equipment
  • Bridge
  • Vehicle
  • Road roller
PRODUCT PARAMETERS
AKF398 PARAMETER UNIT
Range ±2 ±4 ±8 ±10 ±20 ±40 g
Deviation Calibration <1 <1 <1 <1 <1 <1 mg
Measuring Axial X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z axis
Up/Off Power Repeatability <2 <2 <2 <2 <2 <2 mg(max)
Sensitivity (± 10%) 4 2 1 0.8 0.4 0.2 mA/g
Deviation temp. coefficient 0.01 0.01 0.01 0.05 0.05 0.05 %/℃
Resolution/Threshold (@ 1Hz) < 1 < 1 < 1 < 1 < 1 < 1 mg(max)
Nonlinearity <1 <1 <1 <1 <1 <1 % FS(max)
Frequency response 500 500 500 500 500 500 Hz
Bandwidth (3Db) 1000 1000 1000 1000 1000 1000 Hz
Cross-axis sensitivity 1 1 1 2 2 2 %
Lateral vibration sensitivity ratio 1 1 2 5 5 5 %
Resonant frequency 2.4 2.4 2.4 5.5 5.5 5.5 kHz
noise density 21 21 21 86.6 86.6 86.6 μg/√Hz
0g output 12mA <0.005 <0.005 <0.005 <0.003 <0.003 <0.003 mA
Output current 4~20mA
Input(VDD_VSS) 9~36 VDC
Running current consumption <60mA @ 12 VDC
Connector Industrial Standard M12 Connector
Protection grade IP67
Weight Product net weight: 82g, magnetic base: 48g, L-shaped adapter plate 20g
Size Product size: 34.3*34.3*38.5mm Magnetic adsorption base size: 34.23*34.23*8.1mm L-shaped adapter plate size: 36*44*15mm
