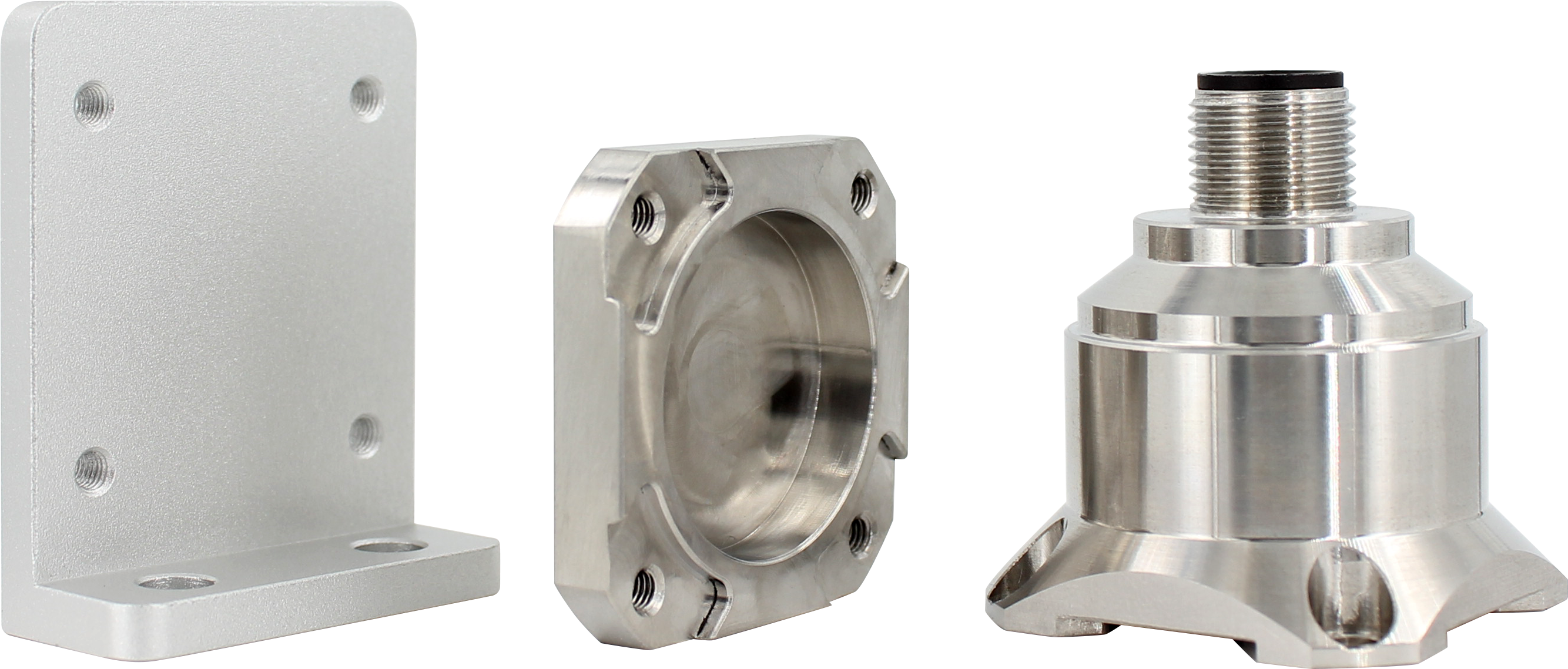

4mA 20mA Anti Impact High Accuracy MEMS Based Accelerometer Fatigue Monitoring
4mA 20mA Anti Impact High Accuracy MEMS Based Accelerometer Fatigue Monitoring
4mA 20mA Anti Impact High Accuracy MEMS Based Accelerometer Fatigue Monitoring
4mA 20mA Anti Impact High Accuracy MEMS Based Accelerometer Fatigue Monitoring
4mA 20mA Anti Impact High Accuracy MEMS Based Accelerometer Fatigue Monitoring
4mA 20mA Anti Impact High Accuracy MEMS Based Accelerometer Fatigue Monitoring
Specifications
Theory :
Capacitance Sensor
anti-impact :
2000G
power supply :
DC 9~36V
weight :
73.5
excellent bias stability :
Yes
output :
0-5V
working temperature :
-40°C to +85°C
vibration sensor axis :
X, Y , Z
store temperature :
-55°C to +100°C
Output :
Analog SENSOR
Usage :
VIBRATION SENSOR
Certification :
CE, ISO
MOQ :
1
Payment Terms :
T/T,Paypal
Supply Ability :
3000/month
Delivery Time :
7 days for sample
Model Number :
AKF390B-8G
Place of Origin :
Guangdong, China
Brand Name :
RION
Packaging Details :
1pcs vibration sensor in each inner box , 50pcs/ctn
Price :
$235.00/Pieces
Description
4~20mA Output Accelerometer High Accuracy Vibration Test Sensor High Accuracy Impact Test Meter
General Description

The AKF390 triaxial VIBRATION SENSOR is a voltage output type VIBRATION SENSOR independently developed and produced, which can be used in many fields such as vibration test and impact test. The product adopts analog voltage output, AKF390 is a single crystal silicon capacitive sensor, which consists of a silicon chip processed by micro-machines, a low power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, calibrated, sturdy structure and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection from over-voltage. The products have the characteristics of sturdy structure, low power consumption, excellent deviation stability, etc., to ensure the reliability of product output.

Feature
  • three axis (X,Y,Z)
  • output voltage: 0-5V
  • power supply:9-36V
  • anti-impact:2000G
  • working temperature: -40°C ~ +85°C
  • store temperature: -55°C ~ +100°C
  • size: L34.4×W34.4×H38mm
  • excellent bias stability
Application
  • Crash record, fatigue monitoring and prediction
  • Wind power generation
  • Traffic system monitoring, roadbed analysis and high-speed railway fault detection
  • Large machinery, engine
  • Low frequency vibration and automatic monitoring
  • Medical equipment
  • Bridge
  • Vehicle
  • Road roller
4mA 20mA Anti Impact High Accuracy MEMS Based Accelerometer Fatigue Monitoring
Technical Data:
Parameters ±2 , ±4, ±8 g
Bias calibration <1 mg
Measuring axis X,Y,Z axis
Power on/down repeatability <2 mg (max value)
Bias temperature coefficient [3] 0.05 mg/℃ typical value
Resolution / Threshold (@ 1Hz) < 1 mg(max)
Nonlinearity <3 % FS(max)
Bandwidth [4] 500 Hz
Resonance frequency 5 kHz
Output rate 5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz, can be set
Output voltage 0-5V
Magnetic based optional
Reliability MIL-HDBK-217,class 2
Anti-impact 100g@11ms,Triaxial and identical (half sine wave)
Restore time <1ms (1000g, 1/2 sin 1ms, Impact on the i-axis)
Vibration 20g rms,20~2000Hz (Random noise, o, p, i acting on each axis for 30 minutes)
Input(VDD_VSS) 9-36 VDC
Operating current consumption <60mA @ 12 VDC
Connector Industry standard M12 connector
Weight 73.5g
Size Magnetic adsorption installation size:34.3*34.3*43.2mm,
Screw positioning installation size:34.3*34.3*38.5mm
4mA 20mA Anti Impact High Accuracy MEMS Based Accelerometer Fatigue Monitoring
Electrical connection:
Color
Function
 BLACK WHITE BLUE BROWN GRAY
GND
Power GND		 X-axis voltage signal Y-axis voltage signal Vcc 9~36V
Power supply positive		 Z-axis voltage signal
4mA 20mA Anti Impact High Accuracy MEMS Based Accelerometer Fatigue Monitoring
FAQ

Q1. What is your delivery terms?

A: EXW, FOB, CNF, DAP

Q2. What is your terms of payment?

A: T/T 100% , Paypal,

Q3. How about your delivery time?

A: Generally, it will take 7 days for production against the payment confirmation

Q4. Can you produce according to customers requirements?

A: Yes, we could provide customized solution.

Q5. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q6. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q7: is refund acceptable if user test do not reach the technical parameter in the data sheet?

A. we accept return and refund, or return and replace if the product quality do not meet the data sheet value.
