AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring
AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring
AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring
AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring
AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring
AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring
Specifications
Brand Name :
RION
Model Number :
AKG392-485
Certification :
CE, ISO
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$260.00/Pieces
Payment Terms :
T/T,PAYPAL
Supply Ability :
3000 PCS/MONTH
Delivery Time :
7 days for samples
Packaging Details :
1pcs vibration sensor in each inner box , 50pcs/ctn
Name :
roller vibration measure
Protocol :
RION 68 protocol and MODBUS RTU protocol
Power on/off repeatability :
<2mg
Input（VDD_VSS） :
9~36 VDC
Output Interface :
RS232/RS485/TTL
material :
stainless steel
Description

RION AKG392 MEMS Digital Accelerometer Three axis Vibration Sensor for Bridge Monitoring



▶ MAIN FEATURE

★ Three axes (X, Y, Z)

★ Output signal: RS232; RS485; TTL

★ Power supply voltage: 9~36V

★ Size: L34.3×W34.3×H38.5mm

★ Working temperature: -40°C ~ +85°C

★ Storage temperature: -40°C ~ +85°C

★Excellent deviation stability, good environmental performance (shock, vibration and temperature)


▶ APPLICATION

★ Medical equipment

★ Bridge

★ Large machinery, engines

★ Automobile

★ Road roller

★ Crash records, fatigue monitoring and prediction

★ Wind power generation

★ Low-frequency vibration and automatic monitoring

★ Traffic system monitoring, roadbed analysis and high-speed railway

fault detection


Specifications


AKG392 PARAMETERS UNIT
Range ±2 ±4 ±8 ±10 ±20 ±40 g
Bias calibration <1 <1 <1 <1 <1 <1 mg
Measure axis X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z X,Y,Z axis
Power on/off repeatability <2 <2 <2 <2 <2 <2 mg(max)

Bias temperature

coefficient

 0.15 0.15 0.15 0.75 0.75 0.75 %/℃(typical)

Resolution/threshold

(@ 1Hz)

 < 1 < 1 < 1 < 1 < 1 < 1 mg(max)
Non-linearity <0.5 <0.8 <1 <1 <1 <1 % FS(max)
Bandwidth (3DB) 500 500 500 500 500 500 Hz
Cross axis sensitivity 1 1 1 2 2 2 %

Transverse vibration sensitivity ratio

 1 1 2 5 5 5 %
Density of noise 21 21 21 86.6 86.6 86.6 μg/√Hz
Resonance frequency 2.4 2.4 2.4 5.5 5.5 5.5 kHz
Output rate 5Hz,10Hz,25Hz,50Hz,100Hz,200Hz,500Hz,1000Hz
Output Interface RS232/RS485/TTL
Protocol RION 68 protocol and MODBUS RTU protocol
Input(VDD_VSS) 9~36 VDC
Operating current consumption <60mA @ 12 VDC

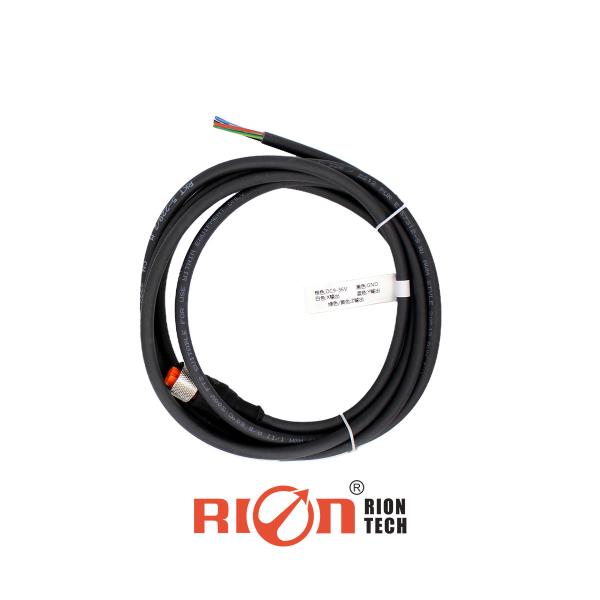

Connector Industry standard M12 connector
Weight Product net weight: 82g, Magnetic base: 48g, L-shaped adapter plate 20g
Size

Product size: 34.3*34.3*38.5mm

Magnetic adsorption base size: 34.23*34.23*6mm

L-shaped adapter plate size: 36*44*15mm


▶ COMMUNICATION PROTOCOL

The product includes 68 protocol and MODBUS RTU two protocols. The default configuration parameters of the protocol are as follows:

PROTOCOL RION 68 PROTOCOL MODBUS-RTU
Address code 0 1
Broadcast address 255 0
Serial port baud rate 9600 9600
Parity bit No parity Even parity
Serial port start bit 1 bit 1 bit
Serial port data length 8 bits 8 bits
Serial port stop bit 1 bit 1 bit
Output mode Question and answer Question and answer
Data Format Data format Data format
Data check method Checksum CRC16

RION 68 protocol and MODBUS protocol mutual switching method:

Open the serial port debugging assistant, select the baud rate 115200, no parity, stop bit 1, the connection port number, make the host computer send hexadecimal 0xAA regularly for every 10ms. Power on the product and reply "RION" or "MRTU" to indicate that the change to the corresponding protocol is successful. After the switch is successful, the parameters are all the above default parameters.




Size


AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring

AKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge MonitoringAKG392 MEMS Digital Accelerometer Three Axis Vibration Sensor For Bridge Monitoring
