Specifications
Brand Name :
wellmark
Model Number :
WM-9045A/B
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 set per 20 working days
Delivery Time :
one week
Packaging Details :
wooden case
Name :
Book - Type Box Assembly Machine
Function :
Making Book - Type Box
Driven type :
Electric&pneumatic
Production capacity :
18-30pcs/min
Dimension(l*w*h) :
4940*2000*2000mm
Warranty :
1 Year
Description

Automatic Multifunctional Book - Type Box Assembly Machine

Product Introduce

Automatic Multifunctional Book - Type Box Assembly Machine is suitable for book shape boxes, box-in-box, and frame in box. This machine adopts the latest technology such as servo drive, photoelectric detection, PLC control, etc., to complete the processes of automatic feeding, painting, positioning, folding and forming.

Main Technical Parameter

Model WM-9045B
Dimension(L*W*H) 4940*2000*2000mm
Machine weight 800KG
Speed 18-30PCS/min
Max case size 900*450mm
Min case size 90*45mm
Max box height size 120mm
Frame Length Size(L*W*H) 420*420*115mm
Frame Width Size(L*W*H) 85*85*35mm
Bottom box height size 15-80mm
Total height Size ≦150mm
Precision positioning ±0.1mm
Power supply AC220V
Power 8KW
Air pressure 0.6Mpa

Other Product Recommend

Hot Melt Adhesive EVA Glue For Book-type Assembly Machine

Process Flow

1. Adopting a downward suction structure to solve the problem of double or multiple case feeding and ensures that the case does not scratch.

2. Gluing is controlled by Japanese Panasonic servo motor, which makes the glue more precise.

The flexible line of gluing can be set freely on the screen according to product needs.

Optional hot and cold double glue system to make the product more viscous and anti-opening.

3. Adopting a four-station lifting table top feeding structure, one person can complete the feeding of the

skins and side wings, and the non-stop operation saves labor and improves efficiency. The book box can be assembled by replacing the feeding module with an assembly line, and the main machine structure is universal.

4. Positioning is controlled by Japanese Panasonic servo motor, which makes the positioning more

precise.

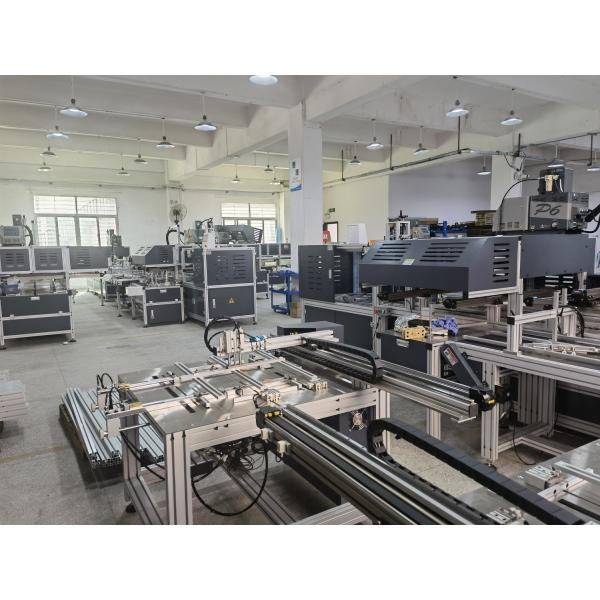

Work Shop Image

Automatic Multifunctional Book - Type Box Assembly Machine
