Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine
Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine
Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine
Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine
Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine
Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine
Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine
Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine
Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine
Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine
Specifications
Brand Name :
Wellmark
Model Number :
WM-DC450
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 set per 20 working days
Delivery Time :
one week
Packaging Details :
wooden case
Product name :
Automatic Rigid Box Making Machine Paper Box Forming Machine
Function :
Box making
Min box size :
80*60*15mm
Speed :
32pcs/min
Warranty :
one year
After-sales service provided :
Video technical support
Description

Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine

WM-DC450AB.pdf

Product Application

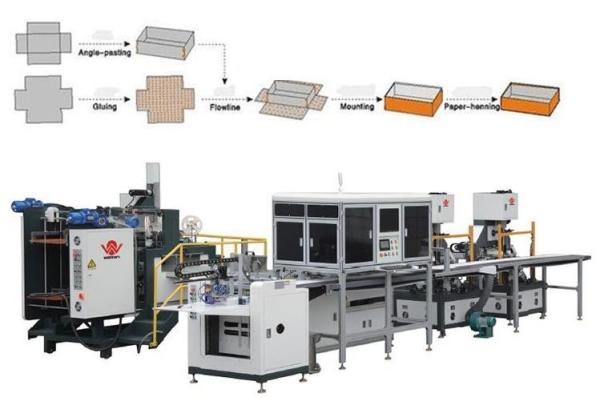

It is the ideal processing equipment rigid box, box. First, Inner box bottom paste with surface paper, then fix the product on the mold of the forming machine by hand, different size box with different mod, then automatic four side pasting, folding, and bubble pressing. Hardcover box can greatly improve the production efficiency.

Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine

Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine

Other Product Application

Box Corner Sealing Tape

Hot Glue / Jelly Glue

Techical Parameters

Paper Wrap Size

(L=Length,W=Width)

 Widest(W) 630mm
Narrowest(W) 95mm
Longest(L) 820mm
Shortest(L) 120mm

Box Size

L=Length W=Width

H=Height

 Longest(L) 450mm
Shortest(L) 130mm
Widest(W) 400mm
Narrowest(W) 45mm
Highest(H) 120mm
Shortest(H) 12mm
Thickness of Paperboard(g/m2) Thinnest(T) 1.0mm - 4.0mm
Thickness of Paper(g/m2) Range 80g/m2-300g/m2
Speed ≤32pcs/min
Air pressure 0.6-0.8MPa
Voltage 380V/50HZ
Power 18kw
Net Weight 5800kgs
Machine Overall Dimension L8.8m×W4.5m×H3.1m

Work Shop Image

Full Automatic Multi - Functional Rigid Box / Gift Box Making Machine

Our Services

1. Pre-Sales Service
Inquiry and consulting support.
Sample testing support.
View our Factory.
2. After-Sales Service
Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.
3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
