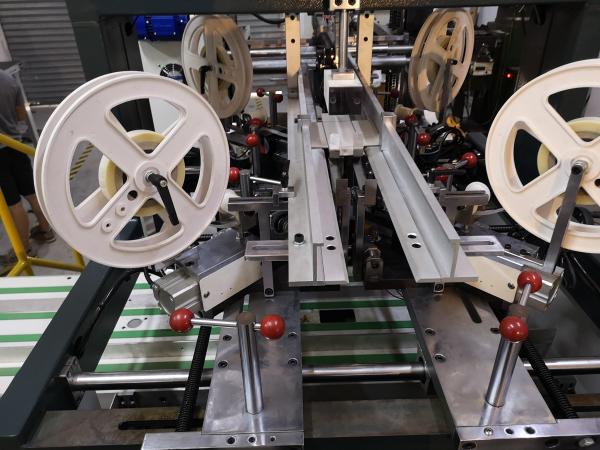

Automatic Rigid Box Corner Pasting Machine For Pasting Four Corner Of All Rigid Box
Automatic Rigid Box Corner Pasting Machine For Pasting Four Corner Of All Rigid Box
Automatic Rigid Box Corner Pasting Machine For Pasting Four Corner Of All Rigid Box
Automatic Rigid Box Corner Pasting Machine For Pasting Four Corner Of All Rigid Box
Automatic Rigid Box Corner Pasting Machine For Pasting Four Corner Of All Rigid Box
Automatic Rigid Box Corner Pasting Machine For Pasting Four Corner Of All Rigid Box
Automatic Rigid Box Corner Pasting Machine For Pasting Four Corner Of All Rigid Box
Automatic Rigid Box Corner Pasting Machine For Pasting Four Corner Of All Rigid Box
Specifications
Brand Name :
WELLMARK
Model Number :
WM-SJT460
Certification :
ISG
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1 set per one week
Delivery Time :
5-8 work days
Packaging Details :
wooden case
Type :
Corner pasting machine
Automatic Grade :
Automatic
Model :
WM-SJT460
Packaging Detail :
Wooden case
Tape Type :
PFT Tape
Weight :
5800kg
Power :
380V/50Hz
Machine size :
L3000*W2400*H2600mm
Description

Automatic Rigid Box Corner Pasting Machine For Pasting Four Corner Of All Rigid Box

Automatic Rigid Box Corner Pasting Machine Catalog...

Product Description

This machine adopts suction board type feeding grey board, double table replacement paperboard, can connect automatic gluing positioning line, this machine can choose to use PET tape or kraft paper tape, the width is usually 19 mm, can also customize .the width according to actual demand. It is suitable for all kinds of sky and earth Cover Hard boxes automatic corer pasting high-speed production.

Technical Parameter

Model WM-SJT460
Grey Board Thickness 1-3mm
Max Length of Box 500mm
Min Length of Box 50mm
Max Width of Box 400mm
Min Width of Box 50mm
Max Height of Box 120mm
Min Height of Box 12mm
Speed 20-40pcs/min
Power 4.5kw
Air Pressure ≧0.6Mpa
Power Supply 380V/50Hz
Weight 2000kg
Machine Size L3000*W2400*H2600mm

Rigid Box Product flew

Automatic Rigid Box Corner Pasting Machine For Pasting Four Corner Of All Rigid Box

Other Product Recommend

Corner Pasting Tape

Product Application

This machine use for pasting box corner of all kind rigid boxes .

Automatic Rigid Box Corner Pasting Machine For Pasting Four Corner Of All Rigid Box

Our Exhibitions

We attended at least three oversea exhibitions every year to show our products to clients, warmly welcome to visit our booth in the exhibitions.

Automatic Rigid Box Corner Pasting Machine For Pasting Four Corner Of All Rigid Box

Our Service

1. Pre-Sales Service:

Inquiry and consulting support.
Sample testing support.
View our Factory.

2. After-Sales Service

Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.

3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage. We can go to your country to debug machine when you have questions can not resolve, but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and after sales service for all of our customers.
