Automatic Rigid Box Assembly Machine
Automatic Rigid Box Assembly Machine
Automatic Rigid Box Assembly Machine
Automatic Rigid Box Assembly Machine
Automatic Rigid Box Assembly Machine
Automatic Rigid Box Assembly Machine
Specifications
Brand Name :
Wellmark
Model Number :
WM-9045A
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T, L/C
Supply Ability :
20 set per month
Delivery Time :
5-8 work days
Packaging Details :
Wood case
Name :
Automatic Book-Type Box Assembly Machine
Application :
Food boxes
Type :
Boxing Machine
Color :
Customized Color
Weight :
1200kg
Speed :
20-28units/min
Positioning Accuracy :
±0.2mm
Power :
3.2kw
Description

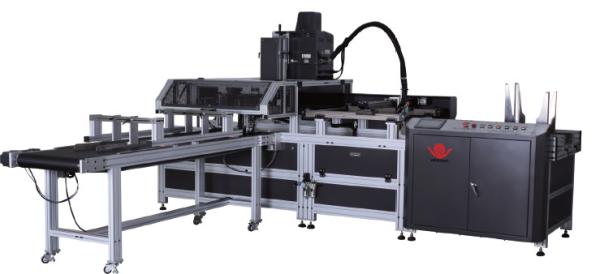

Automatic Rigid Box Assembly Machine

Product description

Book box assembly machine is easy to use, high efficiency, save glue, accurate positioning, is the book box manufacturers to reduce the production cost of the preferred equipment. The machine adopts automatic positioning robot to spray glue, which can be adjusted according to the size of the product. Strip spraying is adopted to reduce the waste of glue, and at the same time to ensure the accuracy, bonding strength and no leakage. The machine adopts positioning pressure box, which improves the accuracy of inner box and leather shell in the positioning process, reduces the reject rate, and new products are launched, which are well received by customers.

Product features

1. Adopt strip spraying, save glue, strong adhesion, no leakage;

2. Robot hand positioning, high precision;

3. Positioning pressure box, precise adhesion between leather shell and inner box, no bubbles, no scratches;

4. Easy to use and high efficiency.

Teachnical Parameter

TECHNICAL SPECIFICATIONS
ITEM NO WM-9045A
SIZE 3300x1560x1700
machine weight 1200KG
SPRAYER Qty 1
Feed system Automatic pneumatic continuous large capacity for glue
Production Speed 20-28units/min
Max.Size(Hardbook Case) (L)900mm*(W)450mm
Min.Size(Hardbook Case) (L)110mm*(W)90mm
Max Size(Inner Box Size) (L)400mm*(W)450mm*(H)150mm
Min Size(Inner Box Size) (L)90mm*(W)45mm*(H)15mm
Positioning Accuracy ±0.2mm
Voltage 220V/50HZ
Power 3.2KW
Air Pressure >0.6MPa

Product application

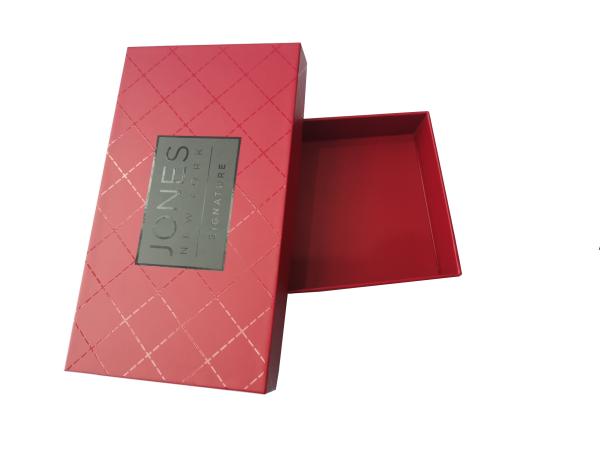

The book box assembly machine is mainly used for gluing mooncake boxes, food boxes, wine boxes and other book boxes.

Packing and Shipping

Packaging Details: wooden case

Automatic Rigid Box Assembly Machine
