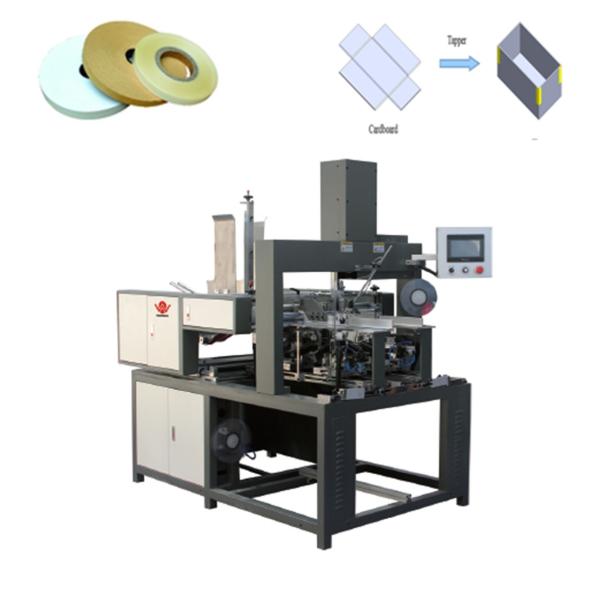

Automatic Four Corner Tapping Machine / Cornaer Pasting Machhine For Making Rigid Box
Automatic Four Corner Tapping Machine / Cornaer Pasting Machhine For Making Rigid Box
Automatic Four Corner Tapping Machine / Cornaer Pasting Machhine For Making Rigid Box
Automatic Four Corner Tapping Machine / Cornaer Pasting Machhine For Making Rigid Box
Automatic Four Corner Tapping Machine / Cornaer Pasting Machhine For Making Rigid Box
Automatic Four Corner Tapping Machine / Cornaer Pasting Machhine For Making Rigid Box
Specifications
Brand Name :
WELLMARK
Model Number :
WM-40A
Place of Origin :
Guangdong, China (Mainland)
MOQ :
1PCS
Payment Terms :
T/T, L/C at sight
Delivery Time :
5-8 work day
Packaging Details :
Wood Case
Price :
Negotiable
Product Type :
Paper Box making machine
Automatic Grad :
Automatic
Application :
Rigid Box Four Corner Tapping
Packaging Type :
Wood Case
Dimension(L*W*H) :
L2000 X W1180 X H1970MM
After-sales Service Provided :
Engineers available to service machinery overseas
Warranty :
1 Year
Description

Automatic Four Corner Tapping Machine / Cornaer Pasting Machhine For Making Rigid Box

Product Features:


1. The machine adopts single arm press device and thermostatic temperature control system.
2. The machine can use various hot-melt adhesive tape, the width is usually 19mm.other width of tape have to special to make it .
3. The length of adhesive tape can be adjusted between 10-50mm length by once for the different boxes.
4. the machine simple operation, fast working speed, high production efficiency, high cost performance.

Technical Parameter

MODEL WM-40A
WORKING SPEED 30-80pcs/min
MAX.SIZE OF BOX 400*300*120mm
MIN.SIZE OF BOX 40x40x10mm
POWER 2.0KW
AIR PRESSURE ≧0.6Mpa
POWER SUPPLY 220V/50HZ
MACHINE SIZE L2000 X W1180 X H1970MM
MACHINE WEIGHT 1000KG

Other Product Recommend
Product Character
1. Easy operation
2. Rational construction
3. High Efficiency
4. Suitable for packaging printing manufacturer, boxes factory etc.

Safety precautions

1. Compliance with safety precautions during production can prevent accidents and potential hazards.

2. When problems are found, please solve them in time. We can't continue production without problems.

3. Please designate professionals to train on-the-job operation and maintenance equipment.

4. Verify whether the equipment is in normal condition before the equipment is running, such as checking the air pressure, resetting the mould, etc.

5. Before production, please wear labor protection equipment to ensure the health and safety of operators.

6. The equipment can not touch any rotating parts and movable parts in the operation process, so as to avoid causing personal injury.

7. Keep all air passages open.

8. It is forbidden to touch the high-temperature head-mounted parts by hand after being heated by electricity.

9. No touch adjustment is allowed when the equipment is running.
