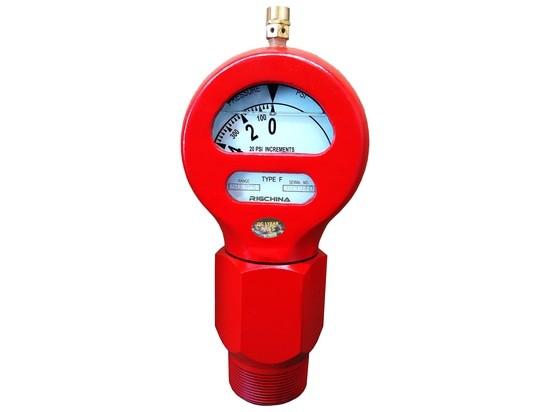

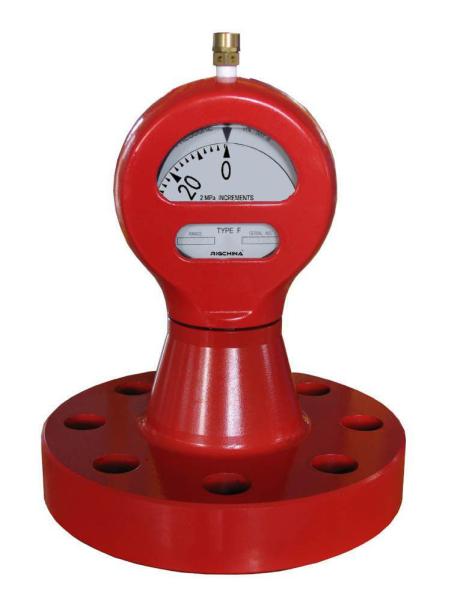

Mud Pump Pressure Gauge Drilling Instruments 6'' Flange Type Model F Range 6000PSI
Mud Pump Pressure Gauge Drilling Instruments 6'' Flange Type Model F Range 6000PSI
Mud Pump Pressure Gauge Drilling Instruments 6'' Flange Type Model F Range 6000PSI
Mud Pump Pressure Gauge Drilling Instruments 6'' Flange Type Model F Range 6000PSI
Mud Pump Pressure Gauge Drilling Instruments 6'' Flange Type Model F Range 6000PSI
Mud Pump Pressure Gauge Drilling Instruments 6'' Flange Type Model F Range 6000PSI
Mud Pump Pressure Gauge Drilling Instruments 6'' Flange Type Model F Range 6000PSI
Mud Pump Pressure Gauge Drilling Instruments 6'' Flange Type Model F Range 6000PSI
Specifications
Brand Name :
Topland
Model Number :
6" 6000psi
Certification :
API 7k
Place of Origin :
China
MOQ :
1
Price :
250-500 USD Per SET
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
15000 Set/Month
Delivery Time :
10 Work days
Packaging Details :
Wooden BOX
Name :
Mud Pump Pressure Gauge
Type :
Flange Type
Model :
6"
Pressure :
5000-20000 psi
Application :
Mud pump
Material :
Stainless Steel
Colour :
Red
Sample :
Available
Description

Drilling Instruments Mud Pump Pressure Gauge 6" Flange Type Model F Range 6000PSI

MUD PUMP PRESSURE GAUGES

Rugged standpipe-type gauges provide dependable, accurate pressure readings

Stand Pipe Gauges provide a quick, accurate display of pump pressure. Main applications are for standpipes and to be mounted on mud pumps. This style of gauge has been in service for many years and has proven to be a tough, dependable and reliable way to monitor pump pressure.

Features of MUD PUMP PRESSURE GAUGES

Interchangeable with Cameron type gauges

Temerature range -20 to 250(-29 to 121)

offering a multitude of sizes,pressure ranges and sub end conections

Sub end connections made from steel,stainless steel or bronze.

Dial ranges in PSI,BAR,KGC and KPA.

Model 8 gauges offer dual unit of measure.

Cases made with aluminum .

Sour gas and charpy available.

Flanged subs can have inconel or stainless steel inlays

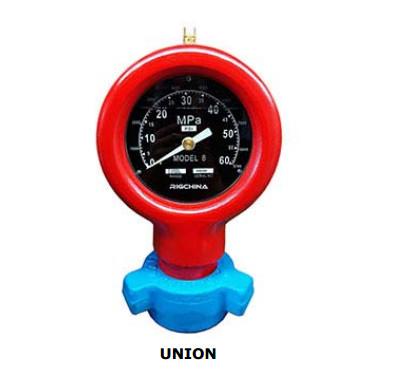

Hummer Union end and Flange connections.

Xylan coated high pressure adapters

Pressure plug on backside for safely.

Mud Pump Pressure Gauge Drilling Instruments 6'' Flange Type Model F Range 6000PSI

MODEL TYPE PRESSURE WEIGHT
6" FLANGE TYPE 6000 PSI 1.5KG

Pressure range:

7MPa, 14MPa, 21MPa, 25MPa, 35MPa, 40MPa, 60MPa, 80MPa, 100MPa, 120Mpa,160MPa 1,000 PSI, 1500PSI 3,000 PSI. 5,000 PSI, 6,000 PSI, 10,000 PSI, 15,000 PSI and 20,000PSI 70 Bar, 140 Bar, 210 Bar, 350Bar, 420 Bar, 700Bar, 1,040 Bar and 1,400 Bar Temperature range: -50°F to 180°F

Liquid surrounding gauge mechanism minimizes wear from vibration and mechanical shock

Heavy duty seals create watertight barrier around gauge mechanism

Combination threaded male 2" line pipe and threaded female 1" line pipe connection

Mud Pump Pressure Gauge Drilling Instruments 6'' Flange Type Model F Range 6000PSI

Other Main Products We Can Supply:

1.API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.
Looking forward to hearing from you. Take care and stay safe, my friend! :-)
