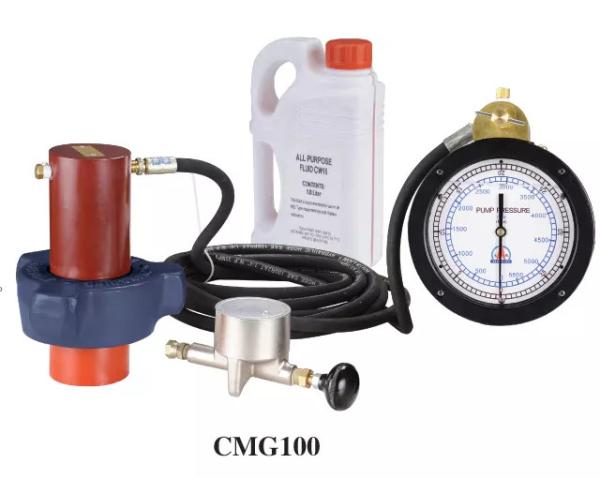

Single Pointer Pressure Gauge System Drilling Instruments CMG 100 Single Line Pressure System

Single Pointer Pressure Gauge System description of Drilling Instruments
Mud pump pressure system consists of mud pump sensor, mud pressure gauge, hydraulic hose and accessories.
Mud pressure effects on the fluid in the diaphragm, make the piston move and extrude hydraulic fluid in the cylinder through the hose (there is no piston in CD106, so the fluid can move untill bourdon tube barrier free), pressure is teansmitted to bourdon tube, make the tube end move. Shifting of the tube end was enlarged by movement, then make the center gear turns clockwise, the pointer indicates the pressure of mud.

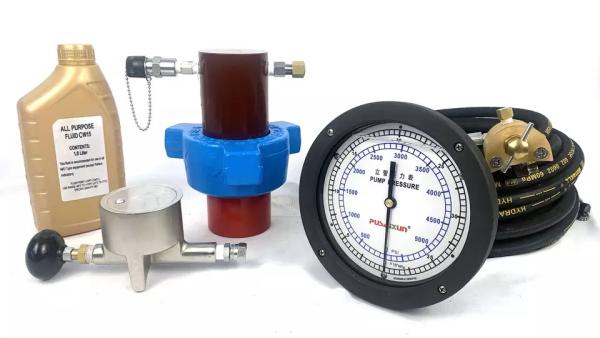

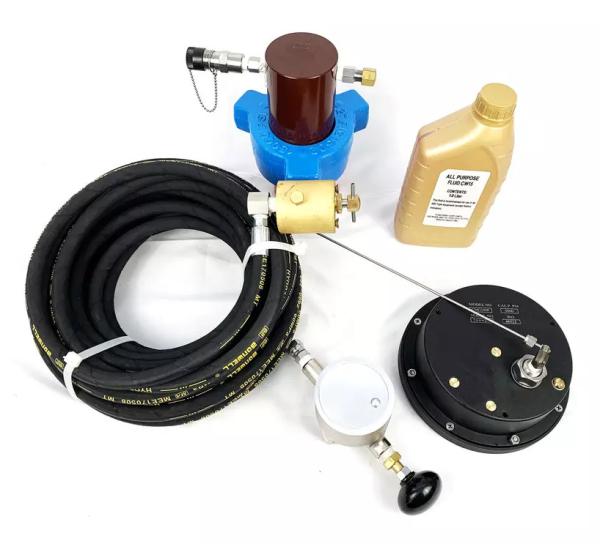

Gauge provides quick, accurate check of mud pump operation. The systems monitor mud pump operations detect potential problems accurately and efficiently .The gauge comes in box mounted or panel mounted configurations. The system consists of 6 inch pressure gauge, a gauge protector or 1:1 piston separator, a high-pressure hose and hand pump.

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.

2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;
3.What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-4. Order tracking service

5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
