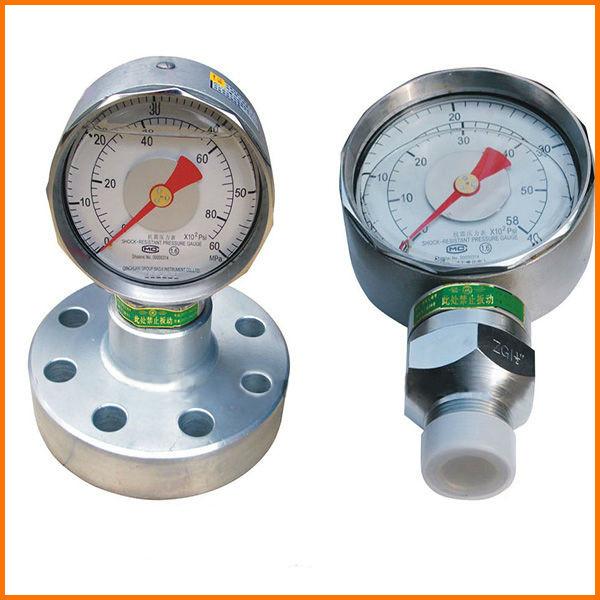

Drilling Instruments Seismic Pressure Gauge 16-160 MPA YK100/150 Mud Pump Gauge

The YK-150 seismic pressure gauge integrated seismic pressure gauge can accurately and quickly display the mud pressure value. It is widely used in petroleum, coal, geology, machinery industries, such as oil production drilling, fracturing, blowout prevention equipment. It is mainly used to detect standpipe pressure on mud pumps, with stable indications, clear readings, and remote observation. It can also be used to measure static pressure at the engineering site. The meter has the characteristics of preventing "blocking", and the measured medium cannot enter the inside of the meter, so the medium is allowed to have high viscosity, large particles, and easy solidification.

Seismic pressure gauge measuring range: 16MPa, 25MPa, 35MPa, 40MPa, 60MPa, 80MPa, 100MPa, 120MPa, 160MPa. Other pressure units are: PSI, Kg/cm2, kPa, BAR.

The composition of the anti-seismic pressure gauge instrument:

the instrument is mainly composed of a gasket, a diaphragm group, a fork spring, a transmission indicating mechanism and a casing.The working temperature of the anti-seismic pressure gauge: the normal working environment temperature of the instrument is -25-55C

Drilling Instruments YK150 seismic pressure gauge installation dimension drawing:

(length, width, height) With reliable sealing and anti-corrosion measures, it can work in harsh environments. Note: Instructions for use: The meter should be installed vertically and as close to the measuring point as possible; When the ambient temperature deviates from 20±5℃, additional temperature error should be considered; When the meter is working, the oil-filled screw on the top should be loosened to release the case caused by temperature Internal pressure. In order to prolong the service life of the instrument and ensure the measurement accuracy, the instrument should be used.

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.

2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;

3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service

5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
