Specifications
Brand Name :
JingBo
Model Number :
Flexible Kill Choke Line
Certification :
API 16C
Place of Origin :
China
MOQ :
1 SET
Price :
300-5000 USD PER Meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60,000 M Per Month
Delivery Time :
20 Days
Packaging Details :
Woven Bag + Iron Carton
Product Name :
Flexible Kill Choke Line
Reinforcement :
Multiple layers of textile fabric and steel cable
Bursting pressure :
155 Mpa
Working pressure :
70 Mpa
Size :
2 1/2"-3 1/2"
Min. Bend Radius :
48"-54"
Working temperature :
-4℉ to +200℉ (-20℃ to +93℃)
Weight :
20 kg
Description

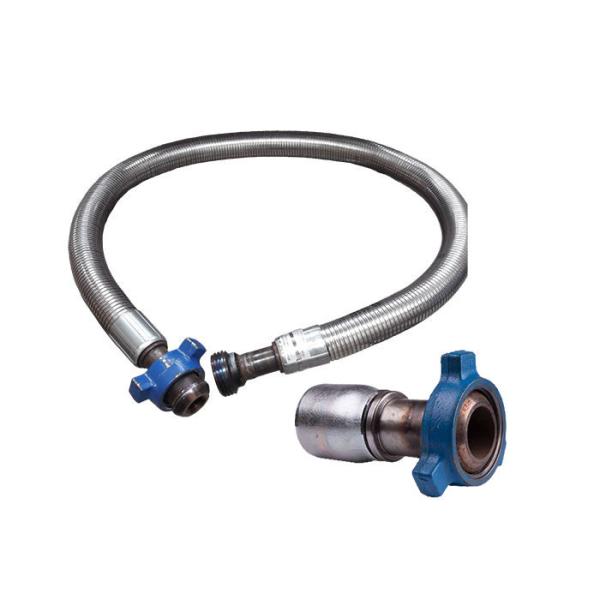

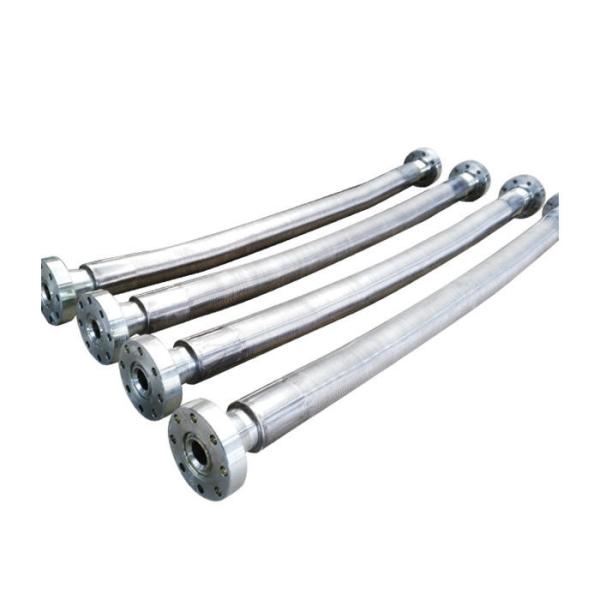

API 16C High Pressure Flexible Kill Or Choke Hose Line Rotary Drilling Hose

Patent No: ZL 94 2 10560.5

API 16C Rotary Drilling Hose High Pressure Flexible Kill / Choke Hose Line1,Applicable to connection at locations when drill platform, semi-submersible drilling vessel or drilling vessel moves relatively and the installation dimensions of the drill rig subsequently change,and to delivery of oil,gas.mud and other high pressure media (including mainly relief line,blowout control line and choke kill line).

2,Applicable standard: API Spec 16CSY/T5323-2004

3,The product features resistance to high pressure, thermal insulation, anti-flaming and fire resistance as well as inner wall with high abrasion resistance.

4,API emblem practical license Numbers: 16C-0374

Inter dia.in Rated operating Test pressure in Min. burst pressure in Min. bending radius
mm(in) pressure in MPa(psi) MPa(psi) MPa(psi) (mm)
50.8(2) 35.0(5 000) 52.5(7500) 78.75(11250) 900
64(2 1/2) 1000
76.2(3) 1000
89(3 1/2) 1100
101.6(4) 1200
50.8(2) 70.0(10 000) 105.0(15 000) 157.5(22 500) 1000
63.5(2 1/2) 1100
76.2(3) 1150
89(31/2) 1200
101.6(4) 1250
50.8(2) 105.0(15000) 157.5(22500) 236.25(33750) 1000
63.5(2 1/2) 1150
76.2(3) 1200
50.8(2) 138.0(20000) 207.0(30000) 310.0(45000) 900
64(2 1/2) 1100
76.2(3) 1200

API 16C Rotary Drilling Hose High Pressure Flexible Kill / Choke Hose Line

API 16C Rotary Drilling Hose High Pressure Flexible Kill / Choke Hose Line

Other related:

API 16C Rotary Drilling Hose High Pressure Flexible Kill / Choke Hose Line

Topland main products:
1. API 6A Gate Valves - style FC, FLS-R, Wellhead equipment and X'mas tree.
2. API 8A/8C Tubular Handling Tools,
3. Mud pump and Mud pump expendables.
4. API 16C Choke and Kill Manifolds,
5. Drilling hose, hydraulic hose, high pressure union, kill & choke line hose,
6. Spare parts for oilfield equipment which are interchangeable with most of the well-known OEM equipment.

FAQ

1. Who are we?
Topland is an integrated supplier established in 2008. We are a global group of oilfield supplies with excellent teams in more than 5 countries. such as UAE, Kuwait, Iran and Saudi Arabia. We cooperated with ADES, ECDE, EDC, SOCAR-AQS, PDL, SAKSON, ONGC etc.


2. How can we guarantee quality?
Always a double requirements and drawing checking before the production;
Always final Inspection before shipment;

3. What can you buy from us?
Drilling rig equipment and the related spares for the oil and natural gas industries. Like Rig Components, Drawworks Spare parts and Mud Pump Spare parts, Hydraulic Disc Brake,Solids Control Equipment, Drilling and Fishing Tools,Wellhead Control Equipment,Drilling Accessories, Cementing Equipment and Tools etc.

4. Why should you choose us?
4-1. Professional & Efficient, Customer Focus, Win-win Cooperation

4-2. Fast Quote, Competitive price & within shortest lead time

4-3. Complete Range of products, like spare parts which are interchangeable with most of the well-known OEM equipment.

4-2. Order tracking service

5. How is the packing?

All the packing will meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

6. What is your terms of payment?

A: Generally by T/T, 30% advance payment, the balance 70% payment should be paid before delivery. We support EXW, FOB, FCA, CFR, CIF, CIP, DAP, DDU and DDP INCO Terms.
