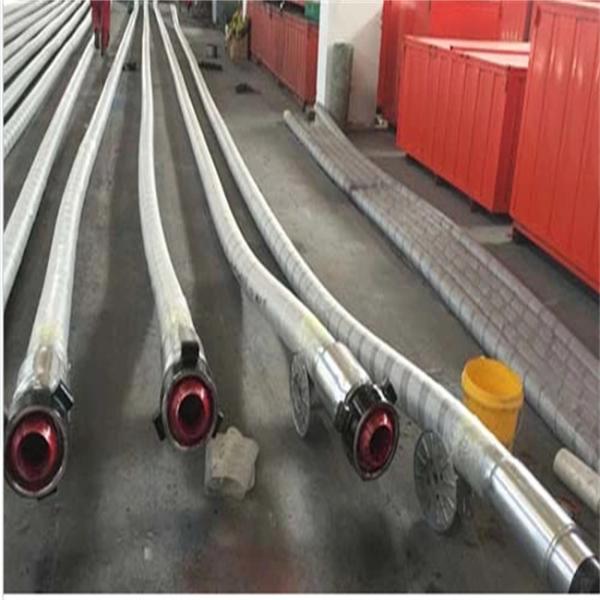

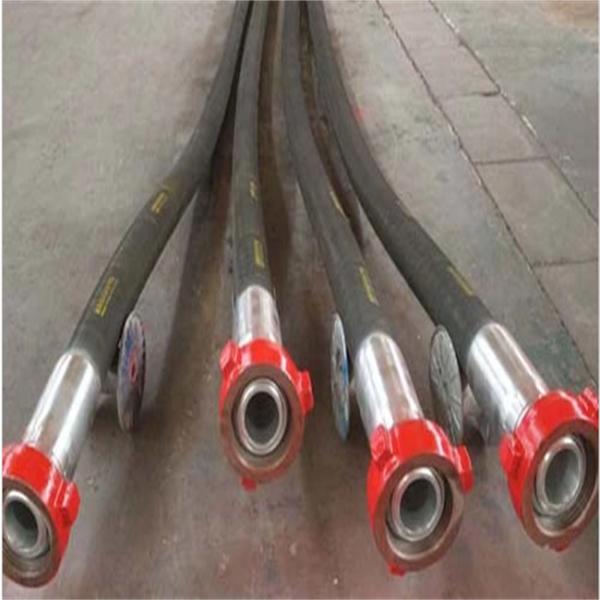

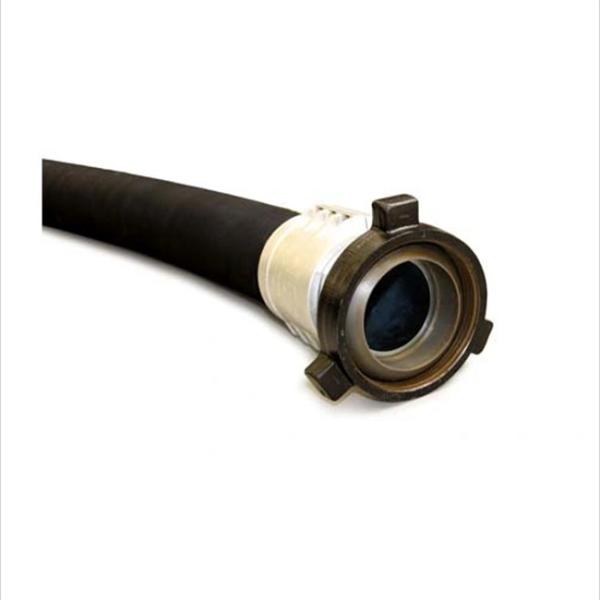

API 7K 5000psi Hydraulic Drilling Hose Mud Cement With Flange Connection
API 7K 5000psi Hydraulic Drilling Hose Mud Cement With Flange Connection
API 7K 5000psi Hydraulic Drilling Hose Mud Cement With Flange Connection
API 7K 5000psi Hydraulic Drilling Hose Mud Cement With Flange Connection
API 7K 5000psi Hydraulic Drilling Hose Mud Cement With Flange Connection
API 7K 5000psi Hydraulic Drilling Hose Mud Cement With Flange Connection
API 7K 5000psi Hydraulic Drilling Hose Mud Cement With Flange Connection
API 7K 5000psi Hydraulic Drilling Hose Mud Cement With Flange Connection
Specifications
Brand Name :
OEM
Model Number :
Hydraulic Hose
Certification :
API 7K
Place of Origin :
China
MOQ :
1 SET
Price :
2500-5000 USD PER Meter
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
60,000 M Per Month
Delivery Time :
20 Days
Packaging Details :
Woven Bag + Iron Carton
Product Name :
Vibrator Mud Cement Hydraulic Hose
Working temperature :
-30°C~ 120°C
Fitting :
Hammer union, NKT 60X2.5
Coupling Type :
NKT 60X2.5 , HAMMER UNION 1502 , BSPT 4"
Hose body :
Very flexible
Length :
30M
Size(inner diameter) :
2",2 1/2",3",3 1/2",4",5",6"
Material :
Rubber
Description

Vibrator Mud Cement Hydraulic Hose Rotary Drilling Hose Flange Connection Flexible Rubber Hose

1. Purpose:

suitable for rotary hose for flexible connection between the top of the drilling riser and the vertically movable water faucet in the oil drilling and mud delivery systems,and for the adjustment of installing error between the drilling pump line and the riser for the connection and vibration isolation.

It is also suitable for delivering in large quantity at high pressure the water-based or oil-based mud with the min. aniline point at 66℃ pumped out of rotary drilling equipment.Moreover, it resists to corrosion from hydrogen sulfide and delivers water, oil,mud and other high-pressure media in borehole operation in oil field.

2. Construction:

It made of inner sub or stainless steel armor inner tube ,carbon fiber reinforce sub,middle sub,steel wire reinforce sub ( steel catenarian line reinforce sub ),and carbon fiber outer sub.

3. The product is classified into steel wire reinforcing type and steel link line reinforcing type.

4. Applicable standard: API Spec7K SY/T5469

5. API emblem practical license Numbers: 7K-0376

6. Hose Reinforcement: 2~ 6 layers spiraled by single high-strength steel wire, and rubber as a binder to make the layers into one complete and sound construction

7. Hose Cover: Primarily CR fabricated, featuring oil-resistant, abrasion-resistant, weatherproof and anti-ageing

8. Coupling Type: NKT 60X2.5 , HAMMER UNION 1502 , BSPT 4"

9. Reference Standard: API Spec 7K,ISO 6807

API 7K 5000psi Hydraulic Drilling Hose Mud Cement With Flange Connection

Rotary drilling hose spec:

Specification:

Inner Diameter

mm(in)

 51mm(2")
Glass A B C D E F G

Operating Pressure

Mpa(Psi)

11 Mpa

1500 Psi

14

2000

28

4000

35

5000

52

7500

70

10000

105

15000

Test Pressure

Mpa(Psi)

22

3000

28

4000

56

5000

70

10000

104

15000

105

15000

157.75

22500
Connector Code TBG, LP, Unoin

Specification:

Inner Diameter

mm(in)

 89mm(3 1/2")
Glass A B C D E F G

Operating Pressure

Mpa(Psi)

11 Mpa

1500 Psi

14

2000

28

4000

35

5000

52

7500

70

10000

105

15000

Test Pressure

Mpa(Psi)

22

3000

28

4000

56

5000

70

10000

104

15000

105

15000

157.75

22500
Connector Code TBG, LP, Unoin

Specification:

Inner Diameter

mm(in)

 102mm(4")
Glass A B C D E F G

Operating Pressure

Mpa(Psi)

11 Mpa

1500 Psi

14

2000

28

4000

35

5000

52

7500

70

10000

105

15000

Test Pressure

Mpa(Psi)

22

3000

28

4000

56

5000

70

10000

104

15000

105

15000

157.75

22500
Connector Code TBG, LP, Unoin

Specification:

Inner Diameter

mm(in)

 127mm(5")

152mm

(6")

Glass B C D A B C D

Operating Pressure

Mpa(Psi)

14

2000

28

4000

35

5000

 1500 Psi

14

2000

28

4000

35

5000

Test Pressure

Mpa(Psi)

28

4000

 5000

70

10000

22

3000

28

4000

56

5000

70

10000
Connector Code TBG, LP, Unoin
