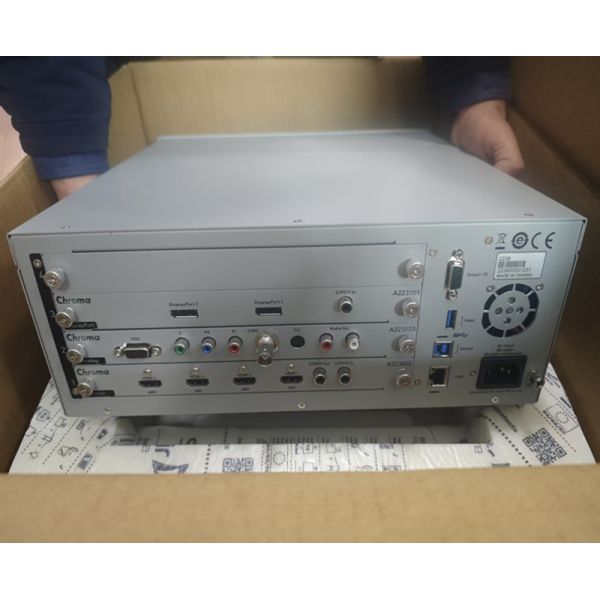

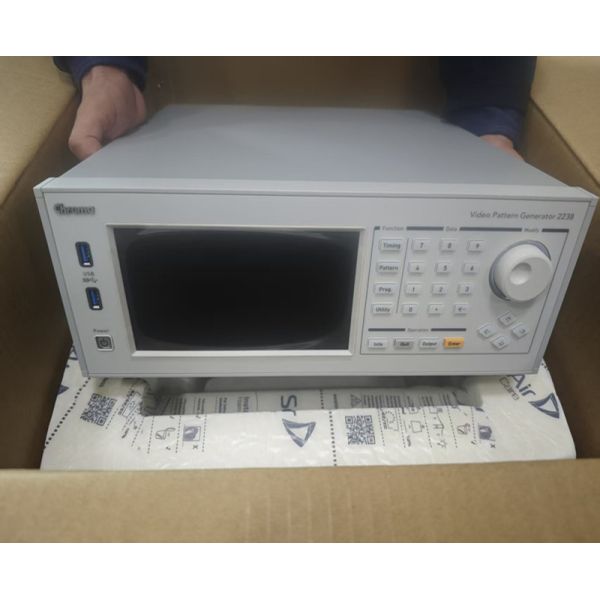

Chroma 2238 Video Pattern Generator Model 2238
Chroma 2238 Video Pattern Generator Model 2238
Chroma 2238 Video Pattern Generator Model 2238
Chroma 2238 Video Pattern Generator Model 2238
Chroma 2238 Video Pattern Generator Model 2238
Chroma 2238 Video Pattern Generator Model 2238
Chroma 2238 Video Pattern Generator Model 2238
Chroma 2238 Video Pattern Generator Model 2238
Chroma 2238 Video Pattern Generator Model 2238
Chroma 2238 Video Pattern Generator Model 2238
Chroma 2238 Video Pattern Generator Model 2238
Chroma 2238 Video Pattern Generator Model 2238
Specifications
Brand Name :
Chroma
Model Number :
2238
Certification :
CE
Place of Origin :
Japan
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Packaging Details :
CARTON
Product name :
Video Pattern Generator
Number of Outputs :
1
Total Power :
20 to 300 W
Nominal Input Ratings: :
100 VAC - 240 VAC; 50/60/400 Hz
Input Range: :
86 VAC - 264 VAC
Power Consumption: :
1500 VA typical
Condition :
Pre-Owned
Functions :
Tested, in Full Working Conditions
Description
Product Description

Description of Chroma 2238
Chroma 2238 Video Pattern Generator is capable of providing 8K SHV display testing. A modular design with built-in high-speed independent graphics core provides standard test signals and patterns for the required resolutions. This unit supports the latest high-definition multimedia interface including HDMI ,DisplayPort, 12G SDI and USB-C. Equipped with a 7 inch touch panel and a friendly graphical user interface, allows users to view and edit patterns directly on the device screen. Complete test functions and an easy-to-operate interface make it suitable for a variety of R&D and production test as well as quality verification in all video related industries.

General Features

  • Support 8K Super Hi-Vision (7680×4320/8192×4320)
  • Independent graphics core for 8K Super Hi-Vision pattern with less than 200 msec. switch time
  • Up to 4 signal modules per unit
  • Up to 4 resolution and pattern outputs.
  • 7 inch 1024x 600 high-resolution touch panel, GUI interface
  • BMP file format support
  • USB 3.0 data access
  • Gigabit Ethernet high-speed network interface
  • HDMI 2.1 Signal (Optional)
    • FRL (Fixed Rate Link) Mode
    • 3 / 6 / 8 / 10 / 12G Mode
    • 3 / 4 Lane Mode
    • RGB 4:4:4 / YCbCr 4:4:4, 4:2:2, 4,2,0
    • HDCP (High-Bandwidth Digital Content Protection) version 2.3, 2.2, 1.4
    • DSC (Display Stream Compress) version 1.2a
    • EDID / eARC / SCDC / HDR 10 / HLG format
    • 8K BMP file format
  • HDMI 2.0b Signal Module (Optional)
    • 8K x 4K 60 Hz (4 HDMI port)
    • 4K x 2K 60 Hz (1 HDMI port)
    • Pixel rate up to 600MHz (6Gbps TMDS rate)
    • RGB 4:4:4 / YCbCr 4:4:4 or 4:2:2 or 4:2:0
    • HDCP 2.2 / 1.4
    • Wide color gamut (ITU-R BT.2020/DCI-P3)
    • HDR (High Dynamic Range) Testing (HDR infoframe & metadata / EOTF)
    • SCDC (status & control data channel) Reader
  • DisplayPort 1.4 Signal Module (Optional)
    • 8K x 4K 60 Hz (2 DP port)
    • 8K x 4K 30 Hz (1 DP port)
    • 1.62 / 2.7 / 5.4 / 8.1 Gbps per lane
    • HDCP 2.2 / 1.3
    • DPCD (Display Port Configuration Data) Reader
    • MST (Multi-Stream Transport) Testing
Chroma 2238 Video Pattern Generator Model 2238Chroma 2238 Video Pattern Generator Model 2238
Packaging & Shipping

We provide carton package and we also will make wooden carton if necessary.

Chroma 2238 Video Pattern Generator Model 2238Chroma 2238 Video Pattern Generator Model 2238Chroma 2238 Video Pattern Generator Model 2238

Our Services

One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.
Company Information

Meigaolan is a test and measurement solutions and production suppliers, founded in 2003 and located in Shenzhen,China.


Our highly skilled Sale Representatives can assist you with all of your

new and refurbished test equipment needs, providing EMC test solutions

and building your Anechoic chamber.

Meigaolan have 6 branch offices,test and repair labs and stocks all round China(Shenzhen,Shanghai,Wuhan,Chengdu,Xi'an,Kushan). Viet Nam branch company established in 2023 to provide more close service to our customers.

Chroma 2238 Video Pattern Generator Model 2238Chroma 2238 Video Pattern Generator Model 2238Chroma 2238 Video Pattern Generator Model 2238Chroma 2238 Video Pattern Generator Model 2238Chroma 2238 Video Pattern Generator Model 2238

FAQ

1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.

2. What delivery method do you use? and delivery time?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question?

You can contact us online or leave us messages below.
