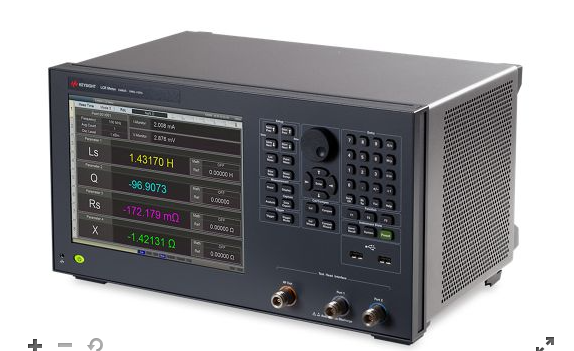

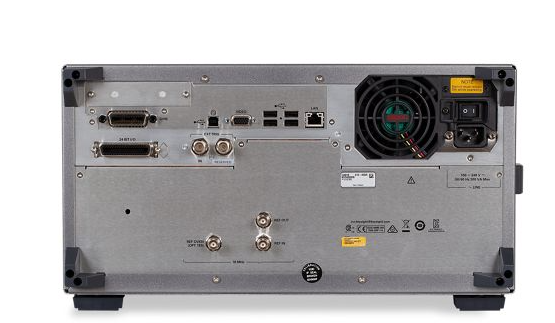

Keysight Agilent E4982A LCR Meter 1 MHz to 3 GHz with 0.8% Basic Accuracy and 3.5 mm Test Head Connector
Keysight Agilent E4982A LCR Meter 1 MHz to 3 GHz with 0.8% Basic Accuracy and 3.5 mm Test Head Connector
Keysight Agilent E4982A LCR Meter 1 MHz to 3 GHz with 0.8% Basic Accuracy and 3.5 mm Test Head Connector
Keysight Agilent E4982A LCR Meter 1 MHz to 3 GHz with 0.8% Basic Accuracy and 3.5 mm Test Head Connector
Keysight Agilent E4982A LCR Meter 1 MHz to 3 GHz with 0.8% Basic Accuracy and 3.5 mm Test Head Connector
Keysight Agilent E4982A LCR Meter 1 MHz to 3 GHz with 0.8% Basic Accuracy and 3.5 mm Test Head Connector
Keysight Agilent E4982A LCR Meter 1 MHz to 3 GHz with 0.8% Basic Accuracy and 3.5 mm Test Head Connector
Keysight Agilent E4982A LCR Meter 1 MHz to 3 GHz with 0.8% Basic Accuracy and 3.5 mm Test Head Connector
Specifications
Brand Name :
Keysight/Agilent
Model Number :
E4982A
Place of Origin :
Malaysia
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Product name :
LCR Meter
Frequency :
1 MHz To 300 MHz / 500 MHz / 1 GHz / 3 GHz
Basic Accuracy :
0.8%
Type :
Benchtop
Functions :
Tested, in Full Working Conditions
Maximum frequency :
3 GHz
Description

Keysight Agilent E4982A LCR Meter 1 MHz To 300 MHz / 500 MHz / 1 GHz / 3 GHz
Description of Keysight Agilent E4982A LCR Meter

Keysight E4982A LCR meter provides the best performance for the passive component manufacturing such as SMD inductors and EMI filters, where impedance testing at high frequencies is required. Not only for the manufacturing, E4982A can also be utilized for R&D, quality assurance with the powerful functions such as list measurements. By offering the unparalleled measurement speed and repeatability with excellent accuracy and impedance range, E4982A is the new standard for high speed component tests.

Key Features of E4982A

  • 1 MHz to 300 M, 500 M, 1 G, and 3 GHz–
  • Test head with 3.5 mm (female) connector
  • Extension to an automated component handler without introducing additional errors
  • 2 m (option 020) is available
  • Frequency upgradeable

Unparalleled measurement speed & repeatability

  • 0.9 ms/point (measurement time mode 1)
  • 2.1 ms/point (measurment time mode 2)
  • 3.7 ms/point (measurement time mode 3)
  • Low variation for repeatability

Excellent accuracy & impedance range

  • Basic accuracy: ± 0.8% (typical ± 0.45%)
  • Impedance range: 140 mΩ to 4.8 kΩ


Compatible to 4287A LCR meter

  • SCPI commands– Handler interface– Test head size 1
  • 7 mm test fixtures


Ordering Information

E4982A LCR Meter furnished accessories

  • Test head with 1 m test cable
  • N (m)-SMA (f) Adapter
  • Wrench for 3.5/SMA connector
  • Power cord
  • Installation guide
  • CD-ROM IO libraries


List of Options OF E4982A


E4982A-030 1 MHz to 300 MHz
E4982A-100 1 MHz to 1 GHz
E4982A-300 1 MHz to 3 GHz
E4982A-050 1 MHz to 500 MHz
E4982A-004 Add working standard set
E4982A-019 Standard Data Storage 1
E4982A-020 Add test fixture extension cable set (1 m)
E4982A-700 16195B calibration kit
E4982A-710 Test fixture stand
E4982A-720 3.5 mm to 7 mm coaxial adapter
E4982A-810 Add keyboard
E4982A-820 Add mouse
E4982A-1A7 ISO 17025 compliant calibration
E4982A-A6J ANSI Z540 compliant calibration


FAQ:
1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.
2. What delivery method do you use? and delivery time?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question?
You can contact us online or leave us messages below.
