Specifications
Brand Name :
SRS
Model Number :
LDC500/LDC501/LDC502
Place of Origin :
USA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
in stock
Product name :
Laser Diode Controller
Output power :
36 W
Resolution :
10mV
Temperature Resolution :
0.001 °C
Functions :
Tested, in Full Working Conditions
Interfaces :
GPIB, RS-232 and Ethernet
Description

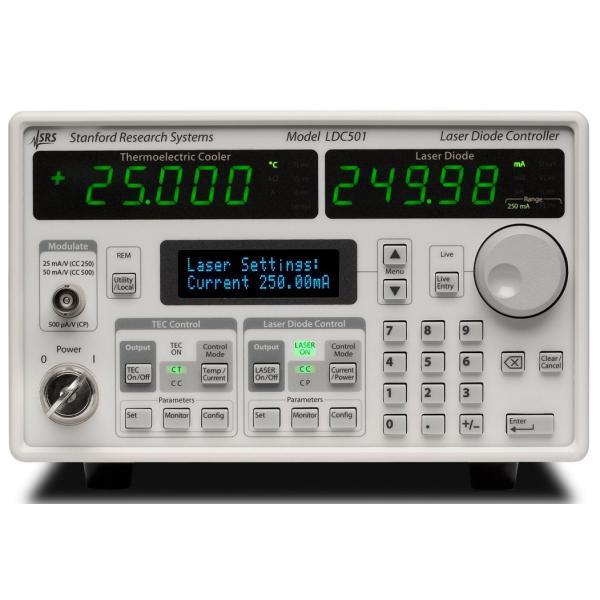

SRS Stanford Research Systems Model LDC500 Series Laser Diode Controller

The LDC500 Series Laser Diode Controllers are highly stable, low-noise current sources with integrated temperature controllers, offering exceptional performance at affordable prices. These instruments provide the ideal solution for controlling current and temperature of laser diodes with features typically found in instruments costing twice as much.

The series includes three models: LDC500 (up to 100 mA), LDC501 (up to 500 mA), and LDC502 (up to 2 A). Each features a low-noise current source, 36 W high-precision temperature controller, and standard computer interfaces including Ethernet, making them the right choice for laser diode testing and control applications.

Key Features
Laser Diode Driver:
  • 100 mA, 500 mA or 2 A source options
  • Ultra-low drift (<10 ppm/°C)
  • <0.3 µA current noise (LDC500)
  • GPIB, RS-232 and Ethernet interfaces
TEC Controller:
  • 36 W output power
  • Ultra-high stability (0.0005 °C/°C)
  • Auto-tuning of loop parameters
  • CC & CT mode dynamic switching
Technical Specifications
Parameter LDC500 LDC501 LDC502
Current Source Range 0 to 100 mA, 0 to 50 mA 0 to 500 mA, 0 to 250 mA 0 to 2 A, 0 to 1 A
Setpoint Resolution 1 µA 10 µA 0.1 mA
Accuracy ±0.02% of full scale ±0.02% of full scale ±0.02% of full scale
Noise (10 Hz to 1 MHz) 0.3-0.9 µA rms 1.0-4.5 µA rms 3.5-25 µA rms
Temperature Control Range -55°C to +150°C (IC sensor), -150°C to +250°C (resistor sensor)
Setpoint Resolution 0.001°C (temperature), 0.1Ω (resistance)
TEC Output Power 36 W maximum
Remote Interfaces GPIB (IEEE488.2), RS-232, Ethernet
Power Requirements 100/120VAC or 220/240VAC, 50Hz/60Hz, 100W
Dimensions 7"×5"×15" (W×H×L)
Weight 15 lbs.
Warranty One year parts and labor
Ordering Information
  • LDC500 Laser Diode Controller
  • LDC501 Laser Diode Controller
  • LDC502 Laser Diode Controller
  • O500RM Rack mount tray for LDC series
  • O500C1 6' LD cable w/ flying leads
  • O500C2 6' TEC cable w/ flying leads
  • O500C3 6' LD cable w/ D connector
  • O500C4 6' TEC cable w/ D connector
  • O500C5 12' LD cable w/ D connector
  • O500C6 12' TEC cable w/ D connector
