Keysight 53131A Universal Counter with 225 MHz Frequency 10 Digit/Sec Resolution and GPIB Interface
Keysight 53131A Universal Counter with 225 MHz Frequency 10 Digit/Sec Resolution and GPIB Interface
Keysight 53131A Universal Counter with 225 MHz Frequency 10 Digit/Sec Resolution and GPIB Interface
Keysight 53131A Universal Counter with 225 MHz Frequency 10 Digit/Sec Resolution and GPIB Interface
Keysight 53131A Universal Counter with 225 MHz Frequency 10 Digit/Sec Resolution and GPIB Interface
Keysight 53131A Universal Counter with 225 MHz Frequency 10 Digit/Sec Resolution and GPIB Interface
Specifications
Brand Name :
Agilent
Model Number :
53131A
Certification :
CE
Place of Origin :
Malaysia
MOQ :
1
Payment Terms :
T/T
Delivery Time :
2-5 working days
Packaging Details :
CARTON
Measurements :
Current/Resistance/Volts (AC)
Channels :
2
Package Type :
Benchtop.
Phase Resolution :
0.01 degree
Maximum Frequency :
12.4GHz
Operating Temperature :
0°C to 40°C (typical)
Dc Voltage :
100 mV – 1000 V
Store Function :
50 ms Data Storing Interval
Temperature :
23 °C ± 5 °C
Description
Keysight / Agilent 53131A Universal Counter, 225 MHz, 10 Digit/Sec With GPIB Interface And Various Oven Timebase Stability
Product Overview

The Keysight/Agilent 53131A Universal Counter is a high-performance 2-channel counter offering fast signal processing and automated limit testing capabilities. This instrument represents the industry standard for frequency and time measurements, with the 53200 Series serving as its modern replacement.

Key Features
  • Two 225 MHz input channels with optional third channel up to 12.4 GHz
  • 10 digits per second measurement speed
  • 500 ps time interval resolution
  • Standard GPIB interface
  • Fast signal processing capabilities
  • Automated limit testing functionality
Available Options
Option Code Description
001Medium Stability Oven Timebase
002DC Power Input
010High Stability Oven Timebase
012Ultra high stability oven timebase
030Add 3.0 GHz Channel 3 to standard 225 MHz Channels 1 and 2
050Add 5.0 GHz Channel 3 (N connector) to standard 225 MHz Channels 1 and 2
060Chan.1 and 2 rear inputs in parallel with front inputs
061Chan.1 and 2 rear inputs in parallel with front inputs, Chan. 3 input rear only
062Chan.1 and 2 rear inputs in parallel with front inputs, Chan. 3 input front only
124Add 12.4 GHz Channel 3 (N connector) to standard 225 MHz Channels 1 and 2
225Standard 225 MHz Channels 1 and 2, with no Channel 3
Product Images

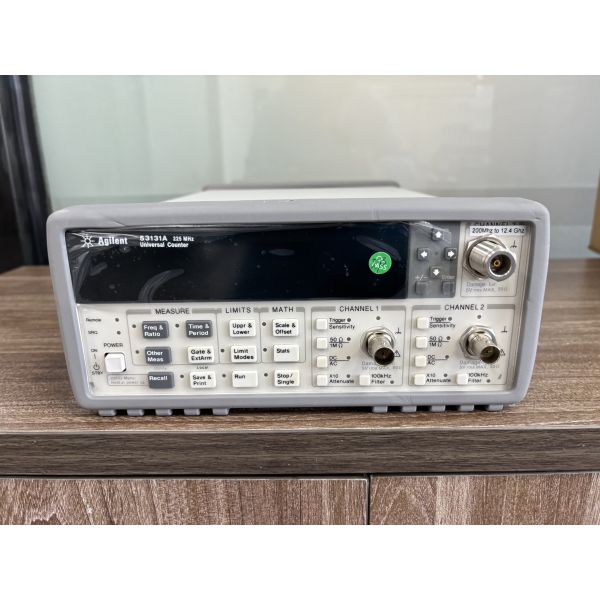

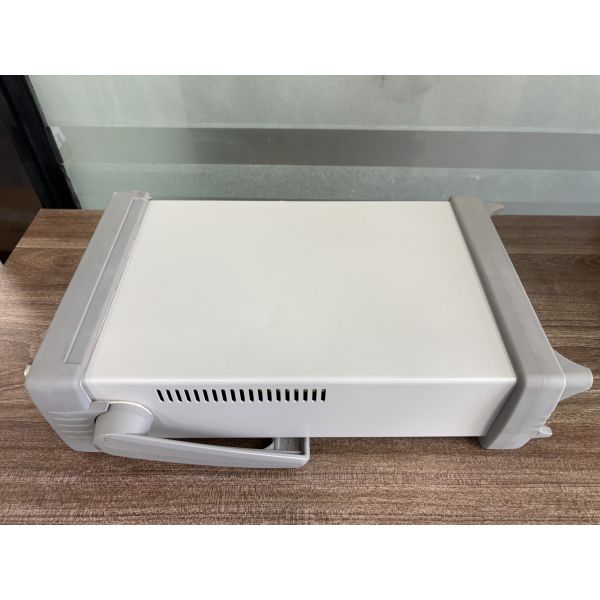

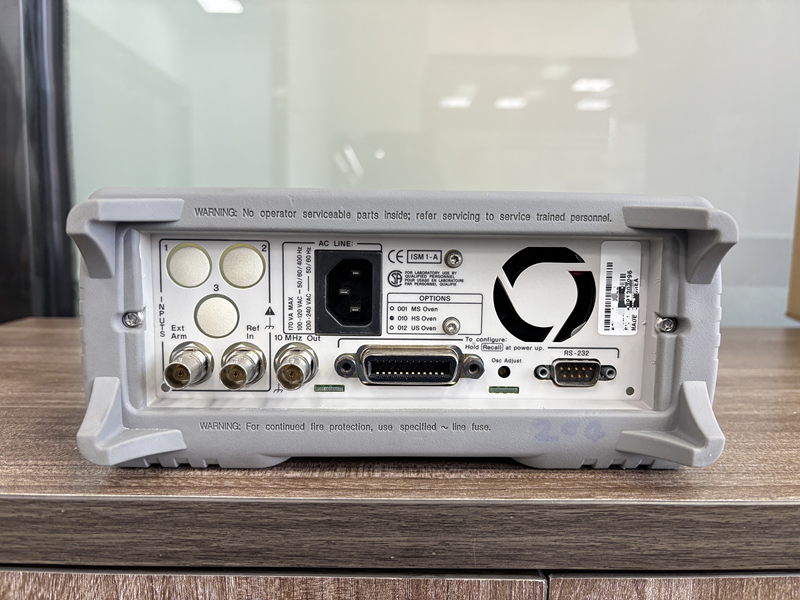

Keysight 53131A Universal Counter with 225 MHz Frequency 10 Digit/Sec Resolution and GPIB Interface Keysight 53131A Universal Counter with 225 MHz Frequency 10 Digit/Sec Resolution and GPIB Interface Keysight 53131A Universal Counter with 225 MHz Frequency 10 Digit/Sec Resolution and GPIB Interface
