Specifications
Harmonics :
Up to 50th Order
Battery :
Rechargeable Li-ion (approx. 8 hours)
Current Channels :
4 Channels, via CT7136 (600A AC)
Certification :
IEC 61000-4-30 Class A, CE, IEC 61000-4-15
Packaging Details :
Hioki original packaging with shock-proof foam insert, export-grade corrugated carton
Voltage Channels :
4 Channels, up to 1000V AC/DC
Data Storage :
SD Card (up to 32 GB)
Included Accessories :
4x CT7136 Clamps, L9438-02 Voltage Leads, AC Adapter, SD Card, Carrying Case, Software
Model Number :
PQ3100-94
Flicker Measurement :
Pst, Plt (IEC 61000-4-15)
Interfaces :
USB 2.0, Ethernet (LAN)
Weight :
Approx. 2.4 kg (main unit)
Display :
6.5-inch Color TFT LCD (640x480)
Dimensions :
300 x 215 x 68 mm
Place of Origin :
Japan
MOQ :
1 Set
Brand Name :
Hioki
Price :
Contact for Price
Payment Terms :
T/T,L/C,PayPal,Western Union
Delivery Time :
3-5 working days for stock, 15-25 days for production
Frequency Range :
42-69 Hz
Description
Hioki PQ3100-94 Power Quality Analyzer Kit 4CH 1000V with CT7136 Clamps IEC 61000-4-30 Class A
Product Overview

The Hioki PQ3100-94 is a comprehensive power quality analyzer kit designed for professional power quality analysis in industrial, commercial, and utility environments. Fully compliant with IEC 61000-4-30 Class A, this instrument delivers certified accuracy for voltage, current, harmonics, flicker, and transient measurements across 4 voltage and 4 current channels.

Kit Contents

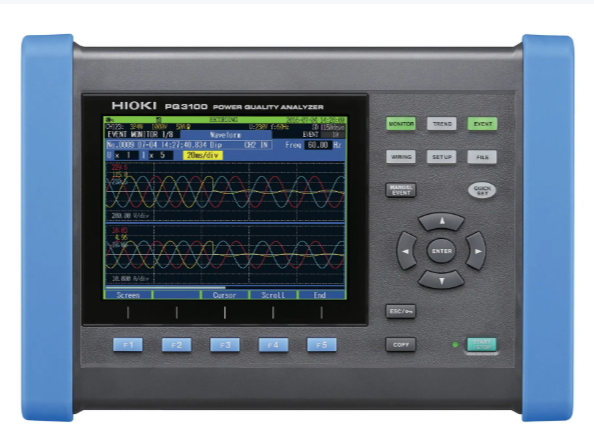

  • PQ3100 Main Unit - 4CH power quality analyzer with 6.5-inch color TFT LCD
  • 4 × CT7136 Flexible Clamp Sensors - 600A AC current probes for non-invasive measurement
  • L9438-02 Voltage Lead Set - 4 voltage measurement leads with color-coded clips
  • AC Power Adapter / Charger
  • SD Memory Card for data logging
  • Rugged Carrying Case
  • PC Application Software (for data analysis and reporting)
Key Features
IEC 61000-4-30 Class A Certified: Meets the highest international standard for power quality measurement accuracy
4 Voltage + 4 Current Channels: Simultaneous multi-point measurement for comprehensive power system analysis
Wide Voltage Range: Measures up to 1000V AC/DC with high accuracy
Harmonic Analysis up to 50th Order: Detailed harmonic spectrum analysis for troubleshooting power quality issues
Flicker Measurement: Pst and Plt flicker evaluation per IEC 61000-4-15
6.5-inch Color TFT Display: 640×480 resolution for clear waveform and trend visualization
SD Card Logging: Supports up to 32 GB SD cards for long-term unattended monitoring
Dual Connectivity: USB 2.0 and Ethernet (LAN) for remote monitoring and data transfer
Rechargeable Battery: Li-ion battery provides approximately 8 hours of continuous field operation
Transient Detection: Captures voltage transients with waveform recording capability
Measurement Parameters
Parameter Category Specific Measurements
Voltage RMS, Peak, DC
Current RMS, Peak, DC
Power Active / Reactive / Apparent Power
Power Factor Power Factor and Displacement Power Factor
Frequency 42-69 Hz
Harmonics Voltage and Current Harmonics (1st-50th), Total Harmonic Distortion (THD)
Flicker Pst, Plt
Power Quality Events Voltage Unbalance, Voltage Dips, Swells, and Interruptions, Transient Overvoltage
Special Measurements Inrush Current
Applications
  • Industrial power quality audits and troubleshooting
  • Utility grid power quality compliance testing
  • Renewable energy system (solar, wind) grid interconnection analysis
  • Data center power infrastructure monitoring
  • Motor drive and inverter harmonic assessment
  • Semiconductor manufacturing power stability verification
Certifications
The Hioki PQ3100 meets stringent international standards: IEC 61000-4-30 Class A for power quality measurement methods, IEC 61000-4-15 for flicker measurement, and CE marking for European conformity.

Hioki E.E. Corporation - Japan's leading manufacturer of electrical measuring instruments since 1935. www.hioki.com
